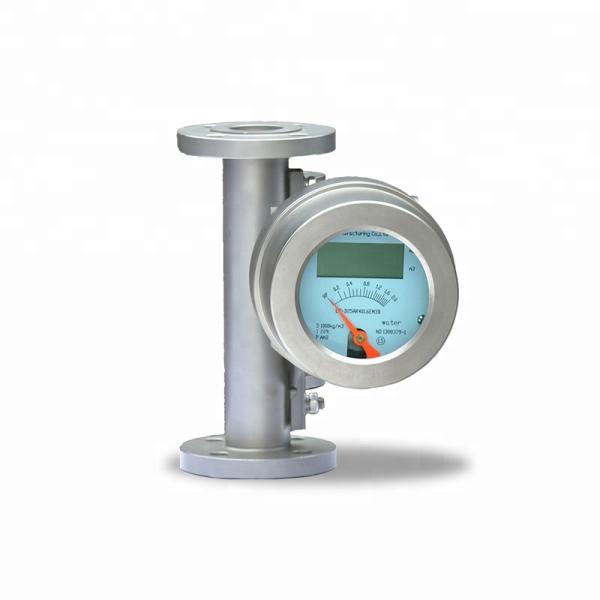

Metal tube float flow meter is a type of variable area flowmeter. In a vertical conical tube that expands from bottom to top, the gravity of a float with a circular cross section is absorbed by the liquid, and the float can rise freely in the cone. And drop. Under the action of flow velocity and buoyancy, it moves up and down. After balancing with the weight of the float, it is transmitted to the dial through the magnetic coupling to indicate the flow. Generally divided into glass and metal rotor flowmeter. The metal rotor flowmeter is the most commonly used in the industry. For small diameter corrosive media, glass is usually used. Due to the inherent fragility of the glass material, the key control point also uses a rotameter made of precious metals such as full titanium. . Mainly used in petroleum, chemical, power generation, pharmaceutical, food, water treatment and other complex, harsh environmental conditions, and various media conditions in the flow measurement process.

Product features

1. Single axle, smart display, high reliability, easy maintenance, long life time.

2. Less requirement on the tube.

3. Flow ratio:10:1, special type: 20:1.

4. Suitable for measurements of mediums with small pipe and low flow rate.

5. LCD display, displaying instantaneous flow and whole flow at same time.

6. Non-contacting magnetic coupling transmission.

7. Metal structure, suitable for strong corrosive mediums and environments with high temperature, high pressure and flammable and explosive conditions.

8. Two-wire available, battery and AC supply to choose.

9. Multiple parameters calibration function, data restoration and back-up, power-fail protection function.

Product Parameters
