Stable Fuel Sight Glass Level Gauge 0~250℃ Temperature 12 Monthes Warranty
Stable Fuel Sight Glass Level Gauge 0~250℃ Temperature 12 Monthes Warranty
Stable Fuel Sight Glass Level Gauge 0~250℃ Temperature 12 Monthes Warranty
Stable Fuel Sight Glass Level Gauge 0~250℃ Temperature 12 Monthes Warranty
Stable Fuel Sight Glass Level Gauge 0~250℃ Temperature 12 Monthes Warranty
Stable Fuel Sight Glass Level Gauge 0~250℃ Temperature 12 Monthes Warranty
Specifications
Place of Origin :
Sichuan, China (Mainland)
Brand Name :
Vacorda
Model Number :
UHC-CJ
Supply Ability :
100 Piece/Pieces per Week
Packaging Details :
Wooden box
MOQ :
1 Piece/Pieces
Price :
Negotiable
Installation center distance :
0~300-0~2000mm
Material :
Carbon Steel,304,316L
Pressure :
0.1,0.6,2.5,4.0,6.3
temperature :
0~250℃
Connecting flange :
DN20(3/4'')
Heating steam pipe interface :
RC1/4 Internal thread
Heating steam pressure :
≤1.0Mpa
Product name :
VACORDA Stable Fuel Sight Glass Level Gauge 0~250℃ Temperature 12 Month Warranty
keyword :
Sight Glass Level Gauge
Port :
Shanghai/shenzhen
Description

Stable Fuel Sight Glass Level Gauge 0~250℃ Temperature 12 Monthes Warranty

Why choose us:

Our products (wide range of tank level instruments)
Magnetic level gauge, Reflex gauge, transparent gauge, Radar sensor, ultrasonic level sensor, Level transmitter, float level gauge, level switch, flow meter
Advantages

- 24 years professional manufacturer in China, 30% Senior professional engineers, sales market nearly 30 countries

- Our factory nearly 20000 m2, hundreds of CNC equipments and inspection devices

- Certification: 20 Technology Patents, ISO9001:2015, European CE and ATEX explosion-proof certificate

- The structure of level gauge is designed according to the world leading brands - US Emerson & Germany WIKA & Switzerland E+H

- Flange manufactured to meet ASME/ANSI, JIS, DIN, HG/T20592-2009 standard

- One - year quality warranty

- Great measurement accuracy and reliability, Longest using life up to 10 years

- OEM accept

Product Description

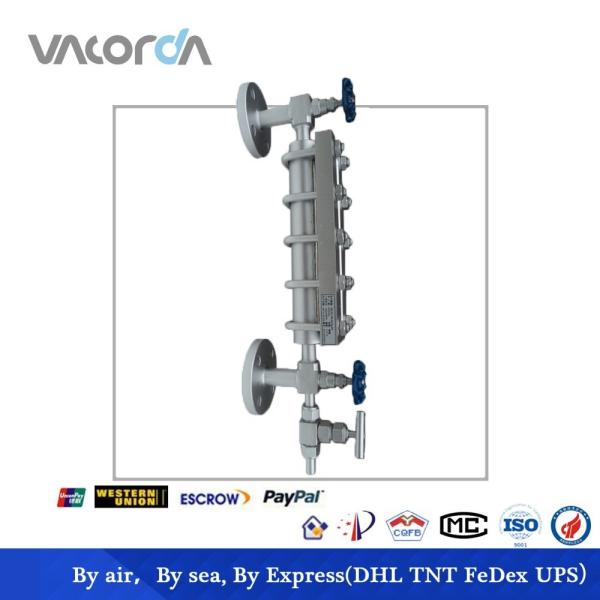

Glass plate level gauge is divided into three kinds: Transparent type, reflection-type and sight glass type. The level gauge is mainly composed by level gauge’s body, upper valve (gas valve), lower valve (liquid valve), drain valve, insurance steel ball and so on. When the glass plate have some cracks or be damaged, the insurance steel ball will automatically stop the side valve of gas and liquid to avoid or reduce flowing. So the worker can cut off the bottom valve to handle it. This series product is stable, sealed and reliable, simple installation, which is ideal instrument for detecting for liquid level in all kinds of containers with middle or low pressure.

Connecting the upper and lower flanges of this level gauge with the upper and lower flanges of the container to form a permeator, then the height of liquid can be directly seen.

Features:

1. Clear and direct reading, good sealability.

2. High working temperature: ≤+250°C

3. High working pressure: ≤PN300

4. Long lifetime, simple structure, easy installation and maintenance

Technical parameters:

Nominal length (center to center ): 0~300-0~2000mm
Recommended length: 550, 850, 1150, 1450, 1750mm
Material: Carbon steel, 304, 316L
Nominal pressure (MPa): Transparent type: 2.5, 6.3; Reflection-type: 4.0; Sight glass type: 0.1, 0.6
Working temperature: 0~250℃
Connection flange: DN20 (3/4”); A,B type---HG20592; C type---HG20615-09
Heating steam cube connector: RC1/4 internal thread
Heating steam pressure: ≤1.0MPa
Steel ball closing pressure: ≥0.3MPa

Workshop and Processing
