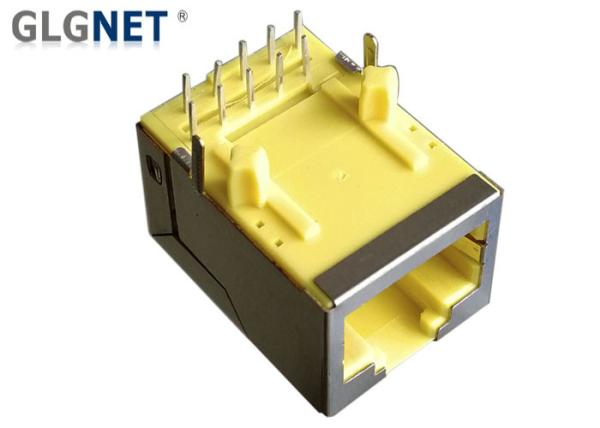

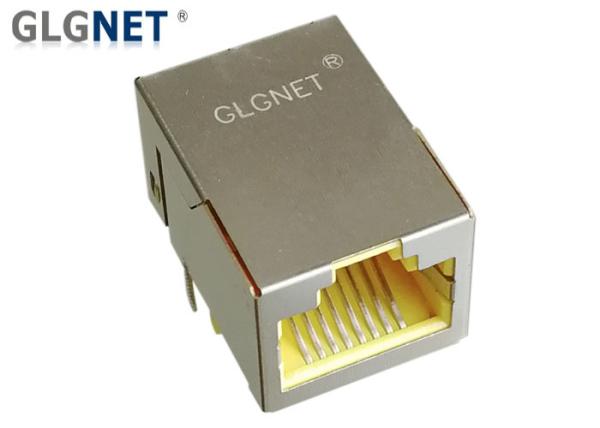

Right Angle Magnetic RJ45 Connector Rj45 Pcb Mount Jack 6 U Gold Plating
Right Angle Magnetic RJ45 Connector Rj45 Pcb Mount Jack 6 U Gold Plating
Right Angle Magnetic RJ45 Connector Rj45 Pcb Mount Jack 6 U Gold Plating
Right Angle Magnetic RJ45 Connector Rj45 Pcb Mount Jack 6 U Gold Plating
Specifications
Brand Name :
GLGNET
Model Number :
JRA1S88C
Certification :
ISO 9001, ISO 14001, UL, RoHS, IECQ QC080000,
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20KK ports /month
Delivery Time :
10 work day
Packaging Details :
Tray, Tube, Reel, Carton
Latch :
Up
Magnetic Speed :
1000 Base - T
Port Number :
1 x 1 Single Port
LED Option :
With or without LED
Operating Temp :
0 ~ 70 ℃
Contact Finish :
6 u "
Description

Right Angle Magnetic RJ45 Connector Rj45 Pcb Mount Jack 6 U" Gold Plating

GLGNET Supports to Custom Different Magnetic RJ45 Connector According to Customer's Requirements;

  • Supports to custom different Dimensions, Port, Rows, Latchs, Materials and so on;
  • Operating Temp. Can be 0 ~ 70 ℃ or -45 ~ 80 ℃ ;
  • Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
  • Supports to custom different Pin Length;
  • Support to be with or without LED diode,
  • Supports to be with or without EMT TAB ( EMI Spring , EMI Finger );
  • LED color can be green, yellow, orange, red and so on;
  • Supports to be with or without lightpipes;
  • Latch Up Or Down

1. Product Attributes

Applications 1000 Base - T
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating 6u", 15u", 30u", 50u" Gold Plating
Cores per Port 8
Diodes Can be with or without Without DIODES
LED Option Can be with or Without LED
Shielding With shielding Shell, Magnetics
Mounting Type Through Hole
Orientation 90° Angle (Right)
Latch Up
Number of Ports 1 X 1 Single Port
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100 / 1000 BASE-T
Operating Temperature 0 TO 70 ℃ or -40 TO 85 ℃
Storage Temperature -40 TO 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

2. Electrical Specification

Parameter Specification
Brand GLGNET
Operating Temperature 0℃ to 70 ℃
Turns Ratio 1:1±2%

Open Circuit

Inductance (ocl)

 350uH MIN@ 100KHz/100mV with 8Ma DC Bias for (Channel 3,4)
Insertion Loss (IL) -1.0dB MAX @ 0.3MHz – 100MHZ;

Return Loss (RL)

Z out = 100 OHM

-18dB MIN @ 1MHz – 30MHZ;

-13dB MIN @ 30MHz – 60MHZ;

-10dB MIN @ 60MHz – 100MHZ;

Crosstalk

Adjacent Channels

 -30dB MIN @ 1MHz – 100MHZ
Common Mode Rejection Ratio (CMRR) -30dB MIN @ 1MHz – 100MHZ
HI - POT 2250 VDC @ 60 Seconds

3. Product Advantages​

`

  • With Transformer / Magnetic
  • Supports 1000 BASE - T Transmission Speed
  • Latch Up
  • 1 x 1 Single Port;
  • With Shield Shell
  • Contact Finish With 6 u" Gold plating

4. Materials

  • Housing: Class Filled PBT UL94V-0 (ROHS)
  • Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 30 Microinches Gold At Mating Interface;
  • Shield: 0.2mm Thickness With Brass
  • Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
  • The Part is recommended for wave soldering process peak soldering temperature is 260 ℃ MAX. 10 Seconds Max;
  • Operating Temperature: 0 ℃ to +70 ℃, Storage Temperature : -40 ℃ to +85 ℃

5. Product Using

  • Broadcast video
  • Storage
  • Set-top boxes and video
  • Power over Ethernet (PoE)
  • Test and measurement
  • Multifunction printers (MFP)
  • Laptop,
  • STP,
  • VD, Home wifi,
  • Security camera,
  • Printer,
  • Pos etc.
  • Internet of Things (Ethernet)
  • IP cameras, surveillance, and phones
  • Access points
  • Network interface cards (NIC)
  • Industrial process control
  • Networking and communications

6. GLGNET Advantage

  • 1500 Employees
  • 58 R&D Engineers.
  • 22000 square meters Factory
  • Our products are compliant with RoHS, REACH and UL certification
  • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
  • 20KK Prots / Month Capacity
  • ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
  • 20 years experiences in Magnetic RJ45 Connectors

7. Dimensions Drawing

Right Angle Magnetic RJ45 Connector Rj45 Pcb Mount Jack 6 U
