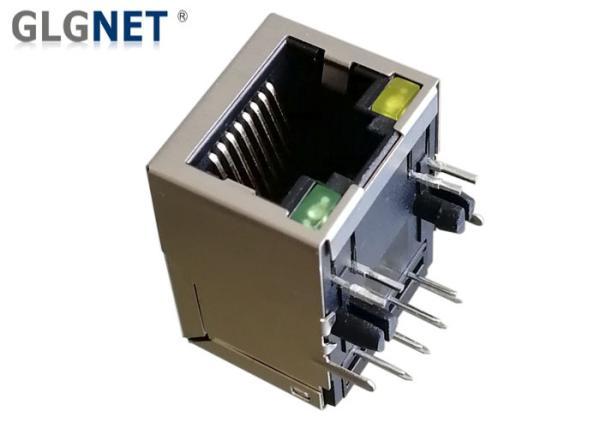

Side Enter Through Hole 100Base T Connector Rj45 With Integrated Magnetics

1. Shenzhen GLGNET Electronics Co., LTD Supports to Custom different Magnetic RJ45 Connector,

  • Supports to custom different structure;
  • Supports to custom different Pin Length;
  • Support to be with or without LED diode,
  • Supports to be with or without EMT TAB ( EMI Spring , EMI Finger );
  • LED color can be green, yellow, orange, red and so on;
  • Supports to be with or without lightpipes;
  • Operating Temp. Can be 0 ~ 70 ℃ or -45 ~ 80 ℃ ;
  • Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
  • Latch Up Or Down

2. Materials

  • Housing: Class Filled PBT UL94V-0 (ROHS)
  • Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 30 Microinches Gold At Mating Interface;
  • Shield: 0.2mm Thickness With Brass
  • Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
  • The Part is recommended for wave soldering process peak soldering temperature is 260 ℃ MAX. 10 Seconds Max;
  • Operating Temperature: 0 ℃ to +70 ℃, Storage Temperature : -40 ℃ to +85 ℃

3. Product Structure​

`

  • With Transformer / Magnetic
  • Without EMI TAB
  • Supports 10 / 100 BASE - T Transmission Speed
  • Latch Down / Latch Buttom
  • 1 x 1 Port;
  • With Green Yellow LED diode;
  • With Shield Shell

4. Product Attributes

Application-Lan ETHERNET witout Poe
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating 6u", 15u", 30u", 50u" Gold Plating
Cores per Port 8
Diodes With DIODES
LED Option With LED
Shielding Shielded, EMI Finger
Mounting Type Through Hole
Orientation 90° Angle (Right)
Latch TAB Down
Number of Ports 1 X 1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100 BASE-T
Operating Temperature 0 TO 70℃
Storage Temperature -40 TO 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

5. Electrical Specification

Parameter Specification
Operating Temperature 0℃ to 70 ℃
Turns Ratio 1:1±2%

Open Circuit

Inductance (ocl)

350uH MIN@ 100KHz/100mV with 8Ma DC Bias for (Channel 3,4)
Insertion Loss (IL) -1.0dB MAX @ 0.3MHz – 100MHZ;

Return Loss (RL)

Z out = 100 OHM

-18dB MIN @ 1MHz – 30MHZ;

-13dB MIN @ 30MHz – 60MHZ;

-10dB MIN @ 60MHz – 100MHZ;

Crosstalk

Adjacent Channels

 -30dB MIN @ 1MHz – 100MHZ
Common Mode Rejection Ratio (CMRR) -30dB MIN @ 1MHz – 100MHZ
HI - POT 2250 VDC @ 60 Seconds

6. Applications

Networking equipment

  • Hubs
  • Switchers
  • Splitters
  • Routers
  • PCs
  • Servers
  • Workstations
  • Motherboards

Equipment utilizing a network port

  • NICs
  • Servers
  • PCs
  • Consumer Devices
  • Laptop,
  • STP,
  • VD, Home wifi,
  • Security camera,
  • Printer,
  • Pos etc.

7. Why Choose GLGNET?

  • Our products are compliant with RoHS, REACH and UL certification
  • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
  • 20KK Prots / Month Capacity
  • ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
  • 20 years experiences in Magnetic RJ45 Connectors
  • 1500 Employees
  • 58 R&D Engineers.
  • 22000 square meters Factory
