Blue Magnetic RJ45 Connector Latch Down No Shielding Shell Green Yellow LED Option
Blue Magnetic RJ45 Connector Latch Down No Shielding Shell Green Yellow LED Option
Blue Magnetic RJ45 Connector Latch Down No Shielding Shell Green Yellow LED Option
Blue Magnetic RJ45 Connector Latch Down No Shielding Shell Green Yellow LED Option
Specifications
Brand Name :
GLGNET
Model Number :
JLU1U402-YG(B)
Certification :
ISO 9001, ISO 14001, UL, RoHS, IECQ QC080000,
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20KK ports /month
Delivery Time :
10 work day
Packaging Details :
Tray, Tube, Reel, Carton
Latch :
Down
Shielding :
Un - Shield ( no Shielding Shell )
LED Option :
Green Yellow
Application :
10 / 100 Base - T
Port Number :
1 x 1
Contact Finish :
6 u " / 15 u " / 30 u " / 50 u "
Description

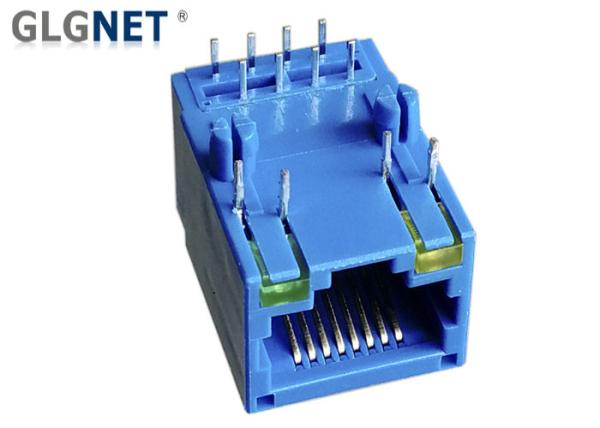

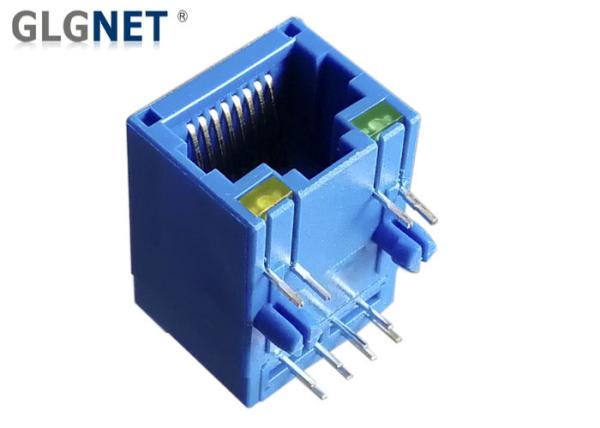

Blue Magnetic RJ45 Connector Latch Down No Shielding Shell Green Yellow LED Option

1. Materials:

  • Housing: Class Filled PA46 ( BLUE 285C ) UL94V-0 (ROHS)
  • Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 6 Microinches At Mating Interface;
  • Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
  • The Part is recommended for wave soldering process peak soldering temperature is 260 ℃ MAX. 10 Seconds Max;
  • Operating Temperature: 0 ℃ to +70 ℃ or -40 ℃ to 85 ℃ , Storage Temperature : -40 ℃ to +85 ℃

2. Features

  • Broad set of configurations
  • Supports 10/100Base-T, 1000Base-T, 2.5GBase-T, or 5GBase-T
  • Supports PoE and PoE+ (10/100Base-T)
  • Compatible with surface-mount with paste-in-hole (PIH) technology
  • -40°C to +85°C or 0°C to +70°C operating temperature range
  • Combinations of green, yellow, orange, and red LEDs
  • Complies with requirements of IEEE 802.3u standards
  • RJ45 connector with 10 / 100 / 1000 BASE-TX magnetic
  • Design for 10 / 100 / 1000 BASE transmission over UTP-5 cable
  • Comply with RoHS requirements

3. Electrical Specification

Parameter Specification
Brand GLGNET
Operating Temperature 0℃ to 70 ℃
Turns Ratio 1:1±3%

Open Circuit

Inductance (ocl)

 350uH MIN@ 100KHz/100mV with 8Ma DC Bias
Insertion Loss (IL) -1.0dB MAX @ 0.3MHz – 100MHZ;

Return Loss (RL)

Z out = 100 OHM

-18dB MIN @ 1MHz – 30MHZ;

-13dB MIN @ 30MHz – 60MHZ;

-10dB MIN @ 60MHz – 100MHZ;

Crosstalk

Adjacent Channels

 -30dB MIN @ 1MHz – 100MHZ
Common Mode Rejection Ratio (CMRR) -30dB MIN @ 1MHz – 100MHZ
HI - POT 2250 VDC @ 60 Seconds

4. Customization Service

  • Supports to custom different structure, Tab - up or Tab - Down;
  • Supports to custom different Pin Length;
  • Being with or without LED diode,
  • Being with or without EMT TAB ( EMI Spring , EMI Finger );
  • Being with or without lightpipes;
  • LED color can be green, yellow, orange, red and so on;
  • Operating Temp. Can be 0 ~ 70 ℃ or -45 ~ 80 ℃ ;
  • Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;

5. Product Attributes

Applications 10 / 100 Base - T
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating 6u", 15u", 30u", 50u" Gold Plating
Cores per Port 8
Diodes Can be with or without Without DIODES
LED Option Can be with or Without LED
Shielding Without Shielding Shell
Mounting Type Through Hole
Orientation 90° Angle (Right)
Latch Down
Number of Ports 1 X 1 Single Port
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10 / 100 BASE-T
Operating Temperature 0 TO 70 ℃ or -40 TO 85 ℃
Storage Temperature -40 TO 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

6. Applications:

  • Internet of Things (Ethernet)
  • IP cameras, surveillance, and phones
  • Access points
  • Network interface cards (NIC)
  • Industrial process control
  • Networking and communications
  • Broadcast video
  • Storage
  • Set-top boxes and video
  • Power over Ethernet (PoE)
  • Test and measurement
  • Multifunction printers (MFP)

7. Why Choose GLGNET?

  • Our products are compliant with RoHS, REACH and UL certification
  • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
  • 20KK Prots / Month Capacity
  • ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
  • 20 years experiences in Magnetic RJ45 Connectors
  • 1500 Employees
  • 58 R&D Engineers.
  • 22000 square meters Factory

8. Mechnical Drawing
