Magnetic RJ45 Connector 2 x 6 RJ45 Multiple port Connector 1000 Base -T Through Hole Mounting
Magnetic RJ45 Connector 2 x 6 RJ45 Multiple port Connector 1000 Base -T Through Hole Mounting
Magnetic RJ45 Connector 2 x 6 RJ45 Multiple port Connector 1000 Base -T Through Hole Mounting
Magnetic RJ45 Connector 2 x 6 RJ45 Multiple port Connector 1000 Base -T Through Hole Mounting
Specifications
Brand Name :
GLGNET
Model Number :
JDKA6T826 - 1
Certification :
ISO9001, ISO14001, IECQ QC080000, UL, RoHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20kkports/month
Delivery Time :
10 working days
Packaging Details :
Tray, Tube, Reel, Carton
Number Of Port :
12 Ports in 2 Row
Application :
1000 Base T Ethernet
EMI Finger Spring :
Yes
Mounting Type :
Through Hole
Contact :
6 u" gold plating
Operating Temperature :
0 ° C To + 70 ° C
Description

Magnetic RJ45 Connector 2 x 6 RJ45 Multiple port Connector 1000 Base -T Through Hole Mounting


1. 2 x 6 Magnetic RJ45 ConnectorStructure Features

Number of Ports2x6
Package Height (Inches)1.015
Package Height (mm)25.78
Package Length (Inches)1.118
Package Length (mm)28.4
Package Width (Inches)3.43
Package Width (mm)87.12
Pin TypeTHT SOLDER
LEDWithout
SearchYES
Shield EMI TabsWITH
Speed1000 BASE-T



2. 2 x 6 Magnetic RJ45 Connector Electrical Specification

ParameterSpecification
Operating Temperature0℃ to + 70 ℃
Turns Ratio1:1±2%

Open Circuit
Inductance (ocl)

350uH MIN@ 100KHz/100mV with 8mA DC Bias

Insertion Loss (IL)-1.0 dB MAX @ 0.3MHz – 100MHZ;

Return Loss (RL)
Z out = 100 OHM

-18dB MIN @ 1MHz – 30MHZ; -16dB MIN @ 30MHz – 60MHZ; -12dB MIN @ 60MHz – 100MHZ;

Crosstalk
Adjacent Channels

-30dB MIN @ 1MHz – 100MHZ
Common Mode Rejection Ratio (CMRR)-30dB MIN @ 1MHz – 100MHZ
HI - POT2250 VDC @ 60 Seconds


3. GLGNET supply many kinds of standard Magnetic RJ45 Connector, also support customization as required, our customization service as following:

  • 90 ° or 180 ° Orientation
  • Single Port or Multiple Port, Ganged Structure or Stacked Structure;
  • With or without POE function;
  • Supports to custom different structure, Tab - up or Tab - Down, Different size, Different Color, With or without Transformer;
  • Supports to custom different Pin Length;
  • LED color can be green, yellow, orange, red and so on;
  • Operating Temp. Can be 0 ~ 70 ℃ or -40 ~ 85 ℃ ;
  • Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
  • Being with or without LED diode,
  • Being with or without EMT TAB ( EMI Spring , EMI Finger );
  • Being with or without lightpipes;
  • Printing LOGO
  • The integrated Transformer Supports 10 / 100 / 1000 / 2.5G / 5G even 10G Transmission Speed



4. Magnetic RJ45 Connector ( JDKA6T826 ) Attributes:

Brand

GLGNET

Part Number

JDKA6T826

Application-Lan

PCBs

AutomDX

YES

Bst Circuit

YES

Configuration RX

T,C

Configuration TX

T,C

Contact Mating Area Plating

GOLD 6u"/15u"/30u"/ 50u"

Diodes

No, can be customized as required

LED Option

With or without LED

Shielding

Shielded EMI Tabs

Mounting Type

Through Hole

Orientation

90 ° ( right angle )

Latch

Unavailable

Number of Ports

2 x 6

PCB

FR4

PCB Mount Angle

SIDE ENTRY

PCB Retaining Post

T POST

Package Height (Inches)

1.015 inch

Package Height (mm)

25.78

Package Length (Inches)

1.118 inch

Package Length (mm)

28.4 mm

Package Width (Inches)

3.43 inch

Package Width (mm)

87.12 mm

Pin Type

THT SOLDER

RoHS Compliant

YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION

Search

YES

Shield EMI Tabs

With

Speed

1000 BASE-T

Temperature

0 TO 70 ℃

Turns Ratio RX

1CT:1CT

Turns Ratio TX

1CT:1CT



5. Magnetic RJ45 Connector Applications:


Networking equipment

  • Hubs
  • Switches
  • Routers
  • PCs
  • Servers
  • Workstations
  • Motherboards



Equipment utilizing a network port

  • NICs
  • Servers
  • PCs
  • Consumer Devices
6. GLGNET Advantage


  • We have our Own Hardware Mold and Plastic Mold
  • Has 3 LS-WEDM Machines
  • Has 12 WEDM Machines and 8 CNC Machines
  • Has 20 Grinding Machines and 12 Electrical Discharge Machines
  • Has 30 Stamping Machines
  • Has 55 Plastic Injection Machines
  • Has Automatic Assembly Workshops
  • Fast Response, Professional R&D Engineers, Positive Service Team, Ensure all process effective and well-organized;
  • 20 years experiences in Variety Connectors
  • 1500 Employees
  • 58 R&D Engineers.
  • 22000 square meters Factory
  • 20kk ports / month Capacity
  • We support Costom Service;
  • Our products are compliant with RoHS, REACH and UL certification
  • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
  • 20KK Prots / Month Capacity

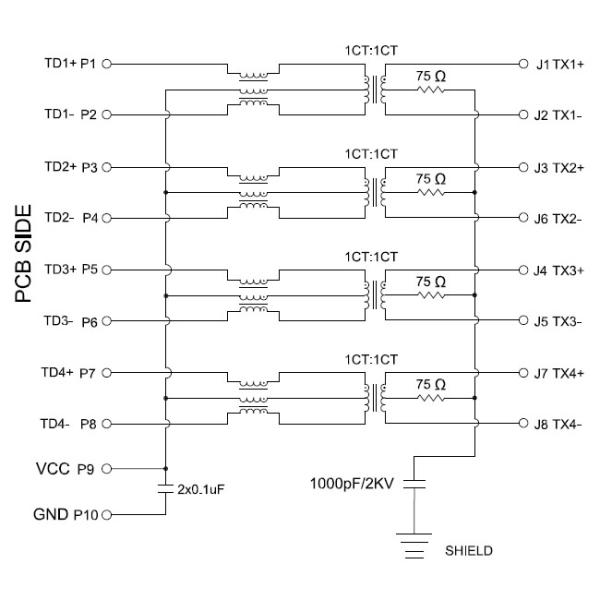

7. Magnetic Schematic Drawing
