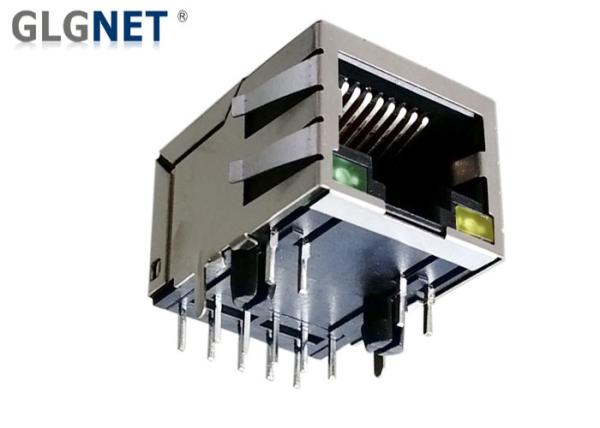

10 100 1000Base T Magnetic Jack Right Angle Rj45 Connector 1x1 Single Port Tab Down

GLGNET Supports to Custom Different Magnetic RJ45 Connector According to Customer's Requirements;

GLGNET Can custom different Outline Dimensions, 1 x n Ports, 2 x n Ports and so on, Use different materials, with or without shielding shell, Tab Up or Tab Down;

GLGNET also support to make different type EMI Finger, the RJ45 Connector can be with or without LEDs or LED Light pipes, LED color can be green, yellow, orange red and so on;

The Operating temp. can be 0 ~ 70 ℃ or -40 ~ 85 ℃;

The Pin Length also can be customized, Contact Finish with different gold Plating;

The Integerated Transformer ( Magnetic ) supports 10 / 100 / 1000 Base - T, 2.5G, 5G, 10G Base - T;

1. Why Choose GLGNET?

  • Our products are compliant with RoHS, REACH and UL certification
  • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
  • 20KK Prots / Month Capacity
  • ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
  • 20 years experiences in Magnetic RJ45 Connectors
  • 1500 Employees
  • 58 R&D Engineers.
  • 22000 square meters Factory

2. RJ45 Modular Jack Features

  • Broad set of configurations
  • Supports 10/100Base-T, 1000Base-T, 2.5GBase-T, or 5GBase-T
  • Supports PoE and PoE+ (10/100Base-T)
  • Compatible with surface-mount with paste-in-hole (PIH) technology
  • -40°C to +85°C or 0°C to +70°C operating temperature range
  • Combinations of green, yellow, orange, and red LEDs
  • Complies with requirements of IEEE 802.3u standards
  • RJ45 connector with 10 / 100 / 1000 BASE-TX magnetic
  • Design for 10 / 100 / 1000 BASE transmission over UTP-5 cable
  • Comply with RoHS requirements

3. RJ45 Modular Jack Electrical Specification

Parameter Specification
Brand GLGNET
Operating Temperature 0℃ to 70 ℃
Turns Ratio 1:1±2%

Open Circuit

Inductance (ocl)

 350uH MIN@ 100KHz/100mV with 8Ma DC Bias
Insertion Loss (IL) -1.0dB MAX @ 0.3MHz – 100MHZ;

Return Loss (RL)

Z out = 100 OHM

-18dB MIN @ 1MHz – 30MHZ;

-13dB MIN @ 30MHz – 60MHZ;

-10dB MIN @ 60MHz – 100MHZ;

Crosstalk

Adjacent Channels

 -30dB MIN @ 1MHz – 100MHZ
Common Mode Rejection Ratio (CMRR) -30dB MIN @ 1MHz – 100MHZ
DC Resistance Imbalance 0.1A MAXIMUM @ 48VDC ( Continuous )
HI - POT 2250 VDC @ 60 Seconds

4. RJ45 Modular Jack Materials

  • Housing: Class Filled PBT UL94V-0 (ROHS)
  • Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 30 Microinches Gold At Mating Interface;
  • Shield: 0.2mm Thickness With Brass
  • Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
  • The Part is recommended for wave soldering process peak soldering temperature is 260 ℃ MAX. 10 Seconds Max;
  • Operating Temperature: 0 ℃ to +70 ℃, Storage Temperature : -40 ℃ to +85 ℃

5. RJ45 Modular Jack Product Parameters

Applications 1000 Base - T
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating 6u", 15u", 30u", 50u" Gold Plating
Cores per Port 8
Diodes Can be with or without Without DIODES
LED Option Can be with or Without LED
Shielding With shielding Shell, Magnetics
Mounting Type Through Hole
Orientation 90° Angle (Right)
Latch Up
Number of Ports 1 X 1 Single Port
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10 / 100 / 1000 BASE-T
Operating Temperature 0 TO 70 ℃ or -40 TO 85 ℃
Storage Temperature -40 TO 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

6. RJ45 Modular Jack Applications:

Equipment utilizing a network port

  • NICs
  • Servers
  • PCs
  • Consumer Devices

Networking equipment

  • Hubs
  • Switches
  • Routers
  • PCs
  • Servers
  • Workstations
  • Motherboards

7. RJ45 Modular Jack Mechnical Drawing
