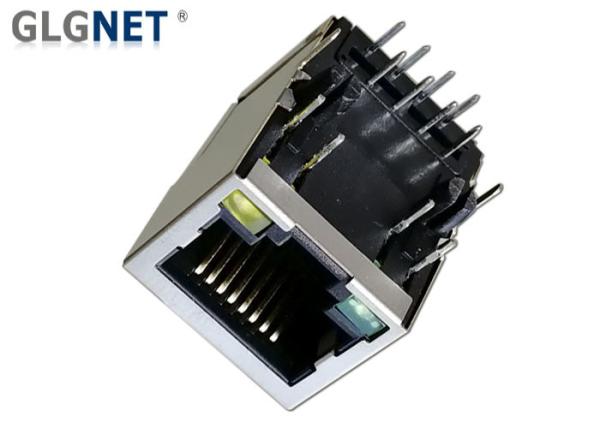

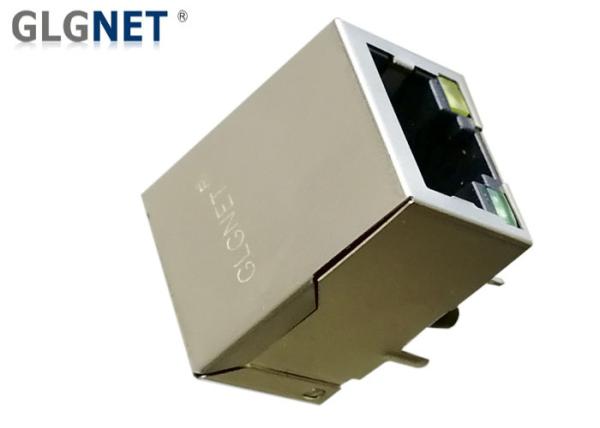

Shielded EMI Finger LED RJ45 Single Port Through Hole Mounting Type



1. RJ45 Single Port Product Attributes

Application-LanETHERNET witout Poe
AutomDXYES
Bst CircuitYES
Configuration RXT,C
Configuration TXT,C
Contact Mating Area Plating6u", 15u", 30u", 50u" Gold Plating
Cores per Port8
DiodesWith DIODES
LED OptionWith LED
ShieldingShielded, EMI Finger
Mounting TypeThrough Hole
Orientation90° Angle (Right)
LatchTAB Down
Number of Ports1 X 1
PCBFR4
PCB Mount AngleSIDE ENTRY
PCB Retaining PostT POST
Pin TypeTHT SOLDER
RoHS CompliantYES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
SearchYES
Shield EMI TabsWITH
Speed10/100 BASE-T
Operating Temperature0 TO 70℃
Storage Temperature-40 TO 85℃
Turns Ratio RX1CT:1CT
Turns Ratio TX1CT:1CT


2. Shenzhen GLGNET Electronics Co., LTD Supports to Custom different Magnetic RJ45 Connector,

  • Supports to custom different structure;
  • Supports to custom different Pin Length;
  • Support to be with or without LED diode,
  • Supports to be with or without EMT TAB ( EMI Spring , EMI Finger );
  • LED color can be green, yellow, orange, red and so on;
  • Supports to be with or without lightpipes;
  • Operating Temp. Can be 0 ~ 70 ℃ or -45 ~ 80 ℃ ;
  • Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
  • Latch Up Or Down


3. RJ45 Single Port Product Structure​

`

  • With Transformer / Magnetic
  • Without EMI TAB
  • Supports 10 / 100 BASE - T Transmission Speed
  • Latch Down / Latch Buttom
  • 1 x 1 Port;
  • With Green Yellow LED diode;
  • With Shield Shell

4. RJ45 Single Port Materials

  • Housing: Class Filled PBT UL94V-0 (ROHS)
  • Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 30 Microinches Gold At Mating Interface;
  • Shield: 0.2mm Thickness With Brass
  • Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
  • The Part is recommended for wave soldering process peak soldering temperature is 260 ℃ MAX. 10 Seconds Max;
  • Operating Temperature: 0 ℃ to +70 ℃, Storage Temperature : -40 ℃ to +85 ℃




5. RJ45 Single Port Electrical Specification

ParameterSpecification
Operating Temperature0℃ to 70 ℃
Turns Ratio1:1±2%

Open Circuit
Inductance (ocl)

350uH MIN@ 100KHz/100mV with 8Ma DC Bias for (Channel 3,4)

Insertion Loss (IL)-1.0dB MAX @ 0.3MHz – 100MHZ;

Return Loss (RL)
Z out = 100 OHM

-18dB MIN @ 1MHz – 30MHZ;
-13dB MIN @ 30MHz – 60MHZ;
-10dB MIN @ 60MHz – 100MHZ;

Crosstalk
Adjacent Channels

-30dB MIN @ 1MHz – 100MHZ
Common Mode Rejection Ratio (CMRR)-30dB MIN @ 1MHz – 100MHZ
HI - POT2250 VDC @ 60 Seconds




6. RJ45 Single Port Product Using

  • Internet of Things (Ethernet)
  • IP cameras, surveillance, and phones
  • Access points
  • Network interface cards (NIC)
  • Industrial process control
  • Networking and communications
  • Broadcast video
  • Storage
  • Set-top boxes and video
  • Power over Ethernet (PoE)
  • Test and measurement
  • Multifunction printers (MFP)
  • Laptop,
  • STP,
  • VD, Home wifi,
  • Security camera,
  • Printer,
  • Pos etc.



7. GLGNET Advantage

  • Our products are compliant with RoHS, REACH and UL certification
  • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
  • 20KK Prots / Month Capacity
  • ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
  • 20 years experiences in Magnetic RJ45 Connectors
  • 1500 Employees
  • 58 R&D Engineers.
  • 22000 square meters Factory



8. RJ45 Single Port Mechanical Drawing
