Single Port Magnetic Ethernet Connector 1000 Base - T 1 X 1 Port Latch Down

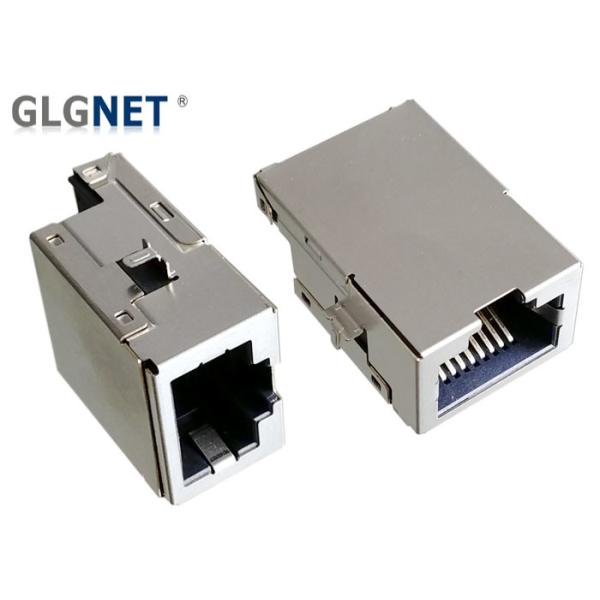

GLGNET RJ45 Single Port (JPA1T806) is Single Port Latch Down RJ45 Jack;

The Length is 24.65mm, width is 16.80mm, height is 11.15mm, Pin Length is 2.6mm;

This RJ45 Connector is with LED, LED Color can be Green, Yellow, Orange, Red and so on;

It is with Shielding Shell, the shell is 0.2mm thickness with brass;

The Integrated Transformer supports 1000 Base - T Transmission speed;

The Operating Temperature is 0 ℃ to 70℃;

We can custom it addording to your requirements fully;

1. RJ45 Single Port Features

• With or without POE Function
• 90 ° or 180° Orentation
• Complies with requirements of IEEE 802.3u or IEEE 802.3ab standards
• RJ45 connector can be with 10 / 100 / 1000 / 2.5G / 5G / 10G magnetic
• Comply with RoHS, REACH, UL requirements
• Broad set of configurations
• -40°C to +85°C or 0°C to +70°C operating temperature range
• Combinations of green, yellow, orange, and red LEDs

2. RJ45 Single Port Materials

1. Housing: Class Filled PA46 UL94V-0 (ROHS)
2. Sheliding: 0.2mm thickness With Brass (RoHS)
3. Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 30 Microinches Gold At Mating Interface
4. Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
5. All the Raw materials meet RoHS
6. Operating Temperature: 0 ℃ to +70 ℃, Storage Temperature : -40 to 85 ℃

3. Why Choose GLGNET?

• We support Costom Service;
• Our products are compliant with RoHS, REACH and UL certification
• Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
• 20KK Prots / Month Capacity
• ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
• 20 years experiences in Magnetic RJ45 Connectors
• 1500 Employees
• 58 R&D Engineers.
• 22000 square meters Factory
• We have our Own Hardware Mold and Plastic Mold

• Has 3 LS-WEDM Machines

• Has 12 WEDM Machines and 8 CNC Machines

• Has 20 Grinding Machines and 12 Electrical Discharge Machines

• Has 30 Stamping Machines
• Has 55 Plastic Injection Machines

• Has Automatic Assembly Workshops

4. RJ45 Single Port Applications:

• LED TV
• SMart TV
• STB
• HUBs
• PCs
• Router,
• Splitter
• Switcher
• Internet of Things (Ethernet)
• IP cameras, surveillance, and phones
• Access points
• Network interface cards (NIC)
• Industrial process control
• Networking and communications
• Broadcast video
• Set-top boxes and video

5. Customization Services

• Supports to custom different structure, Tab - up or Tab - Down, Different size, Different Color, With or without Transformer;
• Supports to custom different Pin Length;
• LED color can be green, yellow, orange, red and so on;
• Operating Temp. Can be 0 ~ 70 ℃ or -40 ~ 85 ℃ ;
• Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
• With or without POE function;
• 90 ° or 180 ° Orientation
• Being with or without LED diode,
• Being with or without EMT TAB ( EMI Spring , EMI Finger );
• Being with or without lightpipes;
• Printing LOGO

6. RJ45 Single Port Electrical Specification:

7. RJ45 Single Port ( JPA1T806) Attributes:

8. RJ45 Single Port Mechnical Drawing
