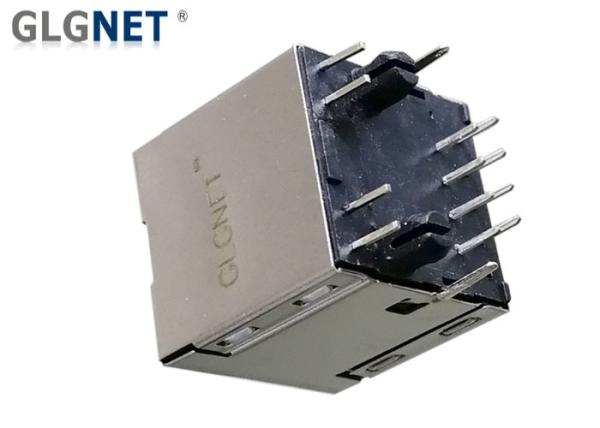

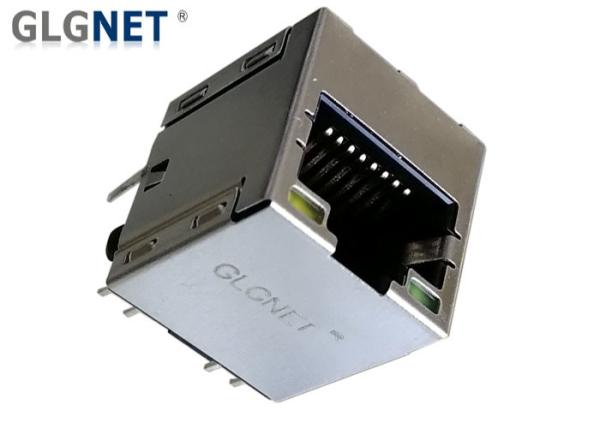

180 ° Integrated Transformer RJ45 Single Port Copper Alloy Preplated With Nickel
180 ° Integrated Transformer RJ45 Single Port Copper Alloy Preplated With Nickel
180 ° Integrated Transformer RJ45 Single Port Copper Alloy Preplated With Nickel
180 ° Integrated Transformer RJ45 Single Port Copper Alloy Preplated With Nickel
Specifications
Brand Name :
GLGNET
Model Number :
JHDU1S405-GYP - 1
Certification :
ISO 9001, ISO 14001, UL, RoHS, IECQ QC080000,
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20KK ports /month
Delivery Time :
10 work day
Packaging Details :
Tray, Tube, Reel, Carton
Port Number :
1 x 1 Single Port
Shielding Materials :
Copper Alloy preplated with Nickel
LED Color :
Green Yellow
Mounting Type :
Though Hole Mounting
Working Temp :
0 To 70 ℃
Orientation :
180 ° Vertical
Description

180 ° Integrated Transformer RJ45 Single Port Copper Alloy Preplated With Nickel

1. RJ45 Single Port Product Structure:

  • Vertical RJ45 Connector
  • 1 x 1 Port
  • 180 ° Orientation / Straight Angle
  • With Green Yellow LED
  • Without EMI Tab
  • 6 U" gold Plating
  • With Integrated Transformer

2. RJ45 Single Port Features

  • Complies with requirements of IEEE 802.3u IEEE 802.3ab standards
  • RJ45 connector with 10 / 100 / 1000 BASE-TX magnetic, or 2.5G / 5G / 10G Transformer
  • Comply with RoHS requirements
  • Design for 10 / 100 / 1000 / 2.5G / 5G / 10G BASE transmission over UTP-5 / UTP-6 cable
  • Broad set of configurations
  • Supports 10/100Base-T, 1000Base-T, 2.5GBase-T, 5GBase-T or 10G Base - T
  • Compatible with surface-mount with paste-in-hole (PIH) technology
  • -40°C to +85°C or 0°C to +70°C operating temperature range
  • Supports PoE and PoE+ (10/100Base-T)
  • Combinations of green, yellow, orange, and red LEDs

3. RJ45 Single Port ( JHDU1S405-GYP ) Attributes:

Part Number JHDU1S405-GYP Brand GLGNET
Place of Origin Guangdong of China Certification UL/CE/FCC/Reach/RoHS
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
LED Option YES LED Color Green Yellow
Filter With Filter LED Option With Green Yellow LED
Shielded Yes Applies To  Routers
Performance Speed 10 / 100 BASE-T Grounding Options Panel Ground and PCB Ground
Port Configuration  Single Number of Positions  8
Jack Configuration 1 x 1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Top Entry ( Straight Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With Board Lock
Housing Material  PA46 Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

4. RJ45 Single Port Electrical Specification:

Parameter Specification
Brand GLGNET
Operating Temperature 0℃ to 70 ℃
Turns Ratio 1:1±2%

Open Circuit

Inductance (ocl)

 350uH MIN@ 100KHz/100mV with 8Ma DC Bias
Insertion Loss (IL) -1.0dB MAX @ 0.3MHz – 100MHZ;

Return Loss (RL)

Z out = 100 OHM

-18dB MIN @ 1MHz – 30MHZ;

-13dB MIN @ 30MHz – 60MHZ;

-10dB MIN @ 60MHz – 100MHZ;

Crosstalk

Adjacent Channels

 -30dB MIN @ 1MHz – 100MHZ
Common Mode Rejection Ratio (CMRR) -30dB MIN @ 1MHz – 100MHZ
HI - POT 2250 VDC @ 60 Seconds

5. RJ45 Single Port LED Specification

Standard LED Wave Length Farward (max) TYP
Green 565 nm 2.4V 2.2V
Yellow 590 nm 2.5V 2.1V

6. GLGNET Customization:

  • Supports to custom different structure, Tab - up or Tab - Down;
  • Supports to custom different Pin Length;
  • Being with or without LED diode,
  • Being with or without EMT TAB ( EMI Spring , EMI Finger );
  • Being with or without lightpipes;
  • LED color can be green, yellow, orange, red and so on;
  • Operating Temp. Can be 0 ~ 70 ℃ or -45 ~ 80 ℃ ;
  • Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;

7. RJ45 Single Port Applications:

  • Broadcast video
  • Set-top boxes and video
  • Power over Ethernet (PoE)
  • Test and measurement
  • Multifunction printers (MFP)
  • IP cameras, surveillance, and phones
  • Access points
  • Network interface cards (NIC)
  • Industrial process control
  • Networking and communications

8. Why Choose GLGNET?

  • Our products are compliant with RoHS, REACH and UL certification
  • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
  • 20KK Prots / Month Capacity
  • ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
  • 20 years experiences in Magnetic RJ45 Connectors
  • 1500 Employees
  • 58 R&D Engineers.
  • 22000 square meters Factory

9. RJ45 Single Port Mechnical Drawing

180 ° Integrated Transformer RJ45 Single Port Copper Alloy Preplated With Nickel
