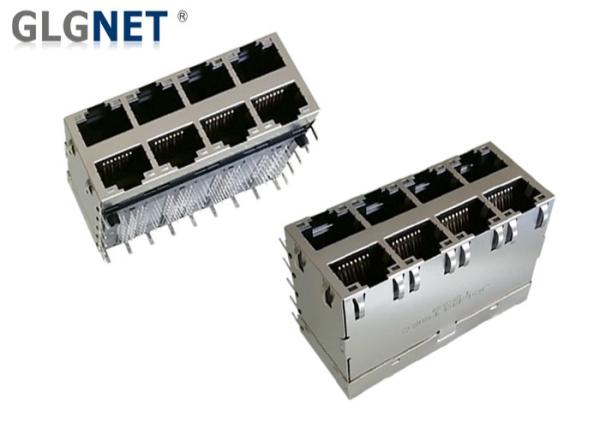

Eight Ports RJ45 Jack Connector 1.27mm Terminal Pitch With Light Pipes And EMI Springs
Eight Ports RJ45 Jack Connector 1.27mm Terminal Pitch With Light Pipes And EMI Springs
Specifications
Brand Name :
GLGNET
Model Number :
JDLM4T86C 2x4 Magnetic RJ45
Certification :
ISO9001, ISO1400, UL, RoHS, IECQ QC080000
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20kkports/month
Delivery Time :
10 working days
Packaging Details :
Tray, Tube, Reel, Carton
Product Name :
8P8C 2x4 Magnetic R45 Connector
Application :
5G Ethernet Switch
Ports :
2x4 8 ports
Operating Temp :
0 to 70 ℃
Contact Terminal :
50u" Gold Plating
Terminal Pitch :
1.27mm
Description

2x4 RJ45 Jack Connector with Light Pipes and EMI Springs for 5G Base T Ethernet

1. GLGNET 2x4 Magnetic RJ45 Jack Connector (JDLM4T86C) Advantages:

  • Supports 5G Base T Ethernet
  • Complies with requirements of IEEE 802.3u or IEEE 802.3ab standards
  • Comply with RoHS, REACH, UL requirements
  • With Light Pipes, let know the connection status easliy
  • With EMI Tabs to protect EMI
  • With 50u" Gold Plating on Mating Interface
  • Supports Customization as requirements

2. GLGNET 2x4 Magnetic RJ45 Jack Connector (JDLM4T86C) Overview

Electrical　
Grounding to PCB Yes
Grounding to Panel Panel Ground Tab
Shielded Yes
Turns Ratio 1:1±2%

Open Circuit

Inductance (ocl)

 1600uH MIN@ 100KHz/100mV with 8mA DC Bias for (Channel 1,2,3,4)
Insertion Loss (IL)

-0.5dB MAX @ 1MHz – 50MHZ;

-1.0dB MAX @ 50MHz – 125MHZ;

-2.0dB MAX @ 125MHz – 200MHZ;

-2.5dB MAX @ 200MHz – 250MHZ;

Return Loss (RL)

Z out = 100 OHM

-20dB MIN @ 1MHz – 50MHZ;

-20+15LOG(f/40MHz) dB MIN @ 50MHz – 250MHZ;

Crosstalk

Adjacent Channels

-30dB MIN @ 1MHz – 125MHZ

-25dB MIN @ 125MHz – 250MH
Common Mode Rejection Ratio (CMRR) -23dB MIN @ 1MHz – 250MHZ
Common To Differential Mode Rejection (REF) -23dB MIN @ 1MHz – 250MHZ
HI - POT 2250 VDC @ 60 Seconds
General
Status Active
Category Modular Jacks/Plugs
Part # JDLM4T86C
Component Type PCB Jack
Magnetic Yes, 5G Base-T
Overview Magnetic Modular Jacks
Power over Ethernet (PoE) Non POE
Product Name Magnetic Jack, Modular Jack 8/8, RJ45
Physical　
Housing Color Black
Flammability UL94V-0
Tab N/A
Jack Height (mm) 25.88
Jack Length (mm) 41.12
Jack Width (mm) 58.98
Soldering Foot Length (mm) 3.2
Contact Mating Area Plating 50u" Gold Plating, can be customed as 1.8", 3u", 6u", 15u", 30u", 50u"
EMI Spring Yes
Lightpipes/LEDs Light pipes
Material - Metal Brass, Phosphor Bronze, Nickel
Material - Plating Mating Gold
Material - Plating Termination Tin
Material - Plastic High Temperature Thermoplastic(PA46)
Orientation Right Angle (Side Entry)
PCB Locator Yes
PCB Retention Yes
Packaging Type Tray
Pitch - Termination Interface 1.27mm
Ports 2x4
Storage Temperature 0° to +70°C
Temperature Range - Operating -40° to +°C
Waterproof / Dustproof No

3. GLGNET 2x4 Magnetic RJ45 Jack Connector (JDLM4T86C) Mechanical Drawing :

Eight Ports RJ45 Jack Connector 1.27mm Terminal Pitch With Light Pipes And EMI Springs

4. GLGNET 2x4 Magnetic RJ45 Jack Connector (JDLM4T86C) Application

  • IDC ( Internet Data Center)
  • Switches
  • Work Station
  • Hubs
  • Web Servers
  • Motherboards

This is not a definitive list of applications for this product. It represents some of the more common uses.

5. Why Choose GLGENT?
  • 20 years experiences in Magnetic RJ45 Connectors
  • 1500 Employees
  • 58 R&D Engineers.
  • 22000 square meters Factory
  • 20KK Prots / Month Capacity
  • We are factory supports Costom Service;
  • Our products are compliant with RoHS, REACH and UL certification
  • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
  • ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
