30 U" EMI Tab Magnetic RJ45 Connector Single Port IEEE 802.3u Standards

1. Materials

  1. Housing: Class Filled LCP UL94V-0 (ROHS)
  2. Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 30 Microinches Gold At Mating Interface;
  3. Shield: 0.2mm Thickness With Brass
  4. Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
  5. The Part is recommended for IR Reflow
  6. Operating Temperature: 0 ℃ to +70 ℃, Storage Temperature : -40 to 85 ℃

2. Electrical Specification:

Parameter Specification
Brand GLGNET
Operating Temperature 0 to 70 ℃
Turns Ratio 1:1±2%

Open Circuit

Inductance (ocl)

 350uH MIN@ 100KHz/100mV with 8mA DC Bias
Insertion Loss (IL) -1.0dB MAX @ 0.3MHz – 100MHZ;

Return Loss (RL)

Z out = 100 OHM

-18dB MIN @ 1MHz – 30MHZ;

-13dB MIN @ 30MHz – 60MHZ;

-10dB MIN @ 60MHz – 100MHZ;

Crosstalk

Adjacent Channels

 -30dB MIN @ 1MHz – 100MHZ
Common Mode Rejection Ratio (CMRR) -30dB MIN @ 1MHz – 100MHZ
HI - POT 2250 VDC @ 60 Seconds

3. Features

  • -40°C to +85°C or 0°C to +70°C operating temperature range
  • Combinations of green, yellow, orange, and red LEDs
  • With or without POE Function
  • 90 ° or 180° Orentation
  • Complies with requirements of IEEE 802.3u standards
  • RJ45 connector is with 10 /100 Base - T magnetic
  • Comply with RoHS, REACH, UL requirements
  • Design for 10 / 100 Base - T transmission over UTP-CAT5 cable
  • Broad set of configurations

4. Magnetic RJ45 Connector ( JGU1T405 ) Attributes:

Part Number JGU1T405 Brand GLGNET
Place of Origin Guangdong of China Certification CE /UL/FCC/Reach/RoHS
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch Up
Filter With Filter LED Option Can be with or without LED
LED Color Green/Yellow/ Orange/ Red etc Panel Stops Without Panel Stops
Shielded Yes Applies To  Routers, Set - TV box
Performance Speed 10 / 100 BASE-T Grounding Options Panel Ground and PCB Ground
Port Configuration  Single Number of Positions  8
Jack Configuration 1 x 1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole Board Lock Without Board Lock
Housing Material  LCP Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

5. Customization Services

  • Supports to custom different structure, Tab - up or Tab - Down;
  • Supports to custom different Pin Length;
  • LED color can be green, yellow, orange, red and so on;
  • Operating Temp. Can be 0 ~ 70 ℃ or -40 ~ 85 ℃ ;
  • Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
  • With or without POE function;
  • 90 ° or 180 ° Orientation
  • Being with or without LED diode,
  • Being with or without EMT TAB ( EMI Spring , EMI Finger );
  • Being with or without lightpipes;
  • Printing LOGO

6. GLGNET Advantages:

  • Our products are compliant with RoHS, REACH and UL certification
  • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
  • 20KK Prots / Month Capacity
  • ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
  • 20 years experiences in Magnetic RJ45 Connectors
  • 1500 Employees
  • 58 R&D Engineers.
  • 22000 square meters Factory

7. Applications:

  • LED TV
  • SMart TV
  • STB
  • PCs
  • Router,
  • Splitter
  • Switcher
  • Internet of Things (Ethernet)
  • IP cameras, surveillance, and phones
  • Access points
  • Network interface cards (NIC)
  • Industrial process control
  • Networking and communications
  • Broadcast video
  • Set-top boxes and video

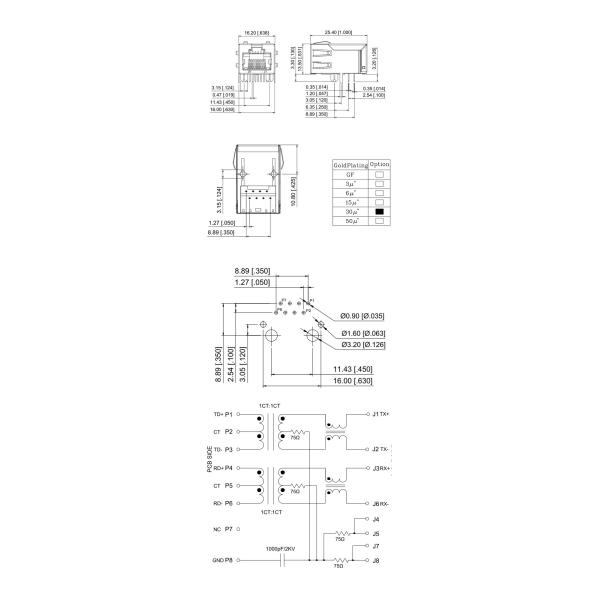

8. Mechnical Drawing
