Green Yellow LED Magnetic RJ45 Connector Single Port Latch Up Offset Mount
Green Yellow LED Magnetic RJ45 Connector Single Port Latch Up Offset Mount
Green Yellow LED Magnetic RJ45 Connector Single Port Latch Up Offset Mount
Green Yellow LED Magnetic RJ45 Connector Single Port Latch Up Offset Mount
Specifications
Brand Name :
GLGNET
Model Number :
JRBU1S435-GY
Certification :
ISO 9001, ISO 14001, UL, RoHS, IECQ QC080000,
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20KK ports /month
Delivery Time :
10 work day
Packaging Details :
Tray, Tube, Reel, Carton
Speed :
10 / 100 Base - T
TAB :
Up
LED Color :
Green Yellow
Mount Type :
Through Hole / Offset
Port Number :
1 port
Operating Temp. :
0 ℃ to +70 ℃
Description

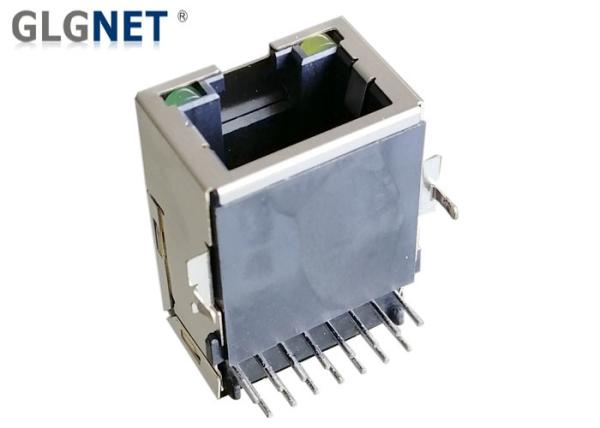

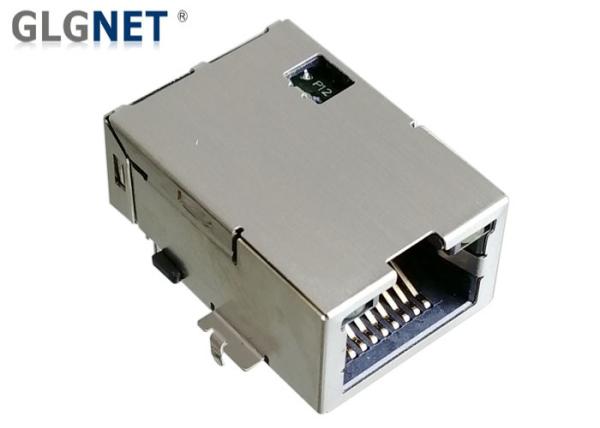

Green Yellow LED Magnetic RJ45 Connector Single Port Latch Up Offset Mount

1. Features

  • Complies with requirements of IEEE 802.3u standards
  • RJ45 connector is with 10 /100 Base - T magnetic
  • Comply with RoHS, REACH, UL requirements
  • Design for 10 / 100 Base - T transmission over UTP-CAT5 cable
  • Broad set of configurations
  • -40°C to +85°C or 0°C to +70°C operating temperature range
  • Combinations of green, yellow, orange, and red LEDs
  • With or without POE Function
  • 90 ° or 180° Orentation

2. Magnetic RJ45 Connector ( JRBU1S435-GY ) Attributes:

Brand GLGNET
Part Number JRBU1S435-GY
Application-Lan ETHERNET without POE
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"/50u"
Diodes NO DIODES
LED Option With Green Yellow LED
Shielding Shielded, EMI Finger
Mounting Type Through Hole / Offset
Orientation 90° Angle
Latch Up
Number of Ports 1X1
PCB FR4
PCB Mount Angle Side ENTRY
PCB Retaining Post T POST
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs Without
Speed 10 / 100 Base - T
Temperature 0 to 70 ℃ or -40 to 85 ℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

3. Materials

  1. Housing: Class Filled LCP UL94V-0 (ROHS)
  2. RJ CONTACT / PLASTIC : Filled LCP UL94V-0 (ROHS)
  3. Shield: 0.2mm Thickness With Brass
  4. Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
  5. The Part is recommended for wave soldering process peak soldering temperature is 260 ℃ MAX. 10 Seconds Max;
  6. Operating Temperature: 0 ℃ to +70 ℃, Storage Temperature : -40 to 85 ℃

4. Electrical Specification:

Parameter Specification
Brand GLGNET
Operating Temperature 0 to 70 ℃
Turns Ratio 1:1±3%

Open Circuit

Inductance (ocl)

 350uH MIN@ 100KHz/100mV with 8mA DC Bias
Insertion Loss (IL)

-1.0dB MAX @ 0.3MHz – 100MHZ;

Return Loss (RL)

Z out = 100 OHM

-18dB MIN @ 1MHz – 30MHZ;

-13dB MIN @ 30MHz – 60MHZ;

-10dB MIN @ 60MHz – 100MHZ;

Crosstalk

Adjacent Channels

-30dB MIN @ 1MHz – 100MHZ
Common Mode Rejection Ratio (CMRR)

-30dB MIN @ 1MHz – 100MHZ
HI - POT 2250 VDC @ 60 Seconds

5. LED Specification

Standard LED Wave Length Farward (max) TYP
Green 565 nm 2.4V 2.2V
Yellow 590 nm 2.5V 2.1V

6. Customization Services

  • Supports to custom different structure, Tab - up or Tab - Down;
  • Supports to custom different Pin Length;
  • LED color can be green, yellow, orange, red and so on;
  • Operating Temp. Can be 0 ~ 70 ℃ or -40 ~ 85 ℃ ;
  • Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
  • With or without POE function;
  • 90 ° or 180 ° Orientation
  • Being with or without LED diode,
  • Being with or without EMT TAB ( EMI Spring , EMI Finger );
  • Being with or without lightpipes;
  • Printing LOGO

7. GLGNET Advantages:

  • Our products are compliant with RoHS, REACH and UL certification
  • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
  • 20KK Prots / Month Capacity
  • ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
  • 20 years experiences in Magnetic RJ45 Connectors
  • 1500 Employees
  • 58 R&D Engineers.
  • 22000 square meters Factory

8. Applications:

  • LED TV
  • SMart TV
  • STB
  • PCs
  • Router,
  • Splitter
  • Switcher
  • Internet of Things (Ethernet)
  • IP cameras, surveillance, and phones
  • Access points
  • Network interface cards (NIC)
  • Industrial process control
  • Networking and communications
  • Broadcast video
  • Set-top boxes and video

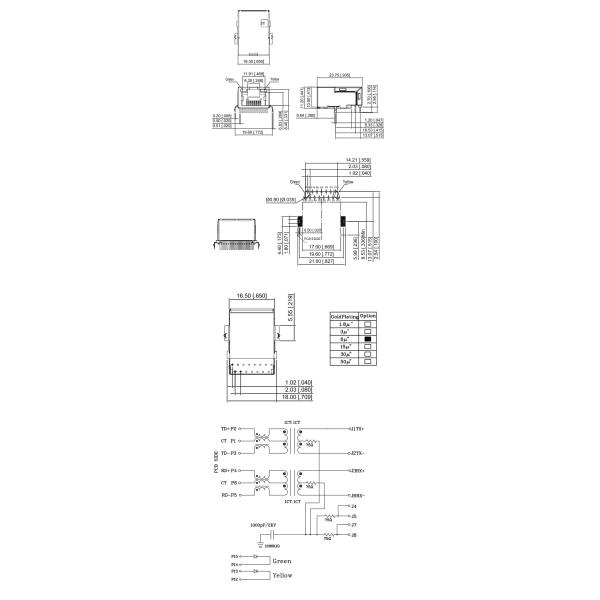

9. Mechnical Drawing
