1G Tab Up Single Port Ethernet Lan Rj 45 Connector , Rj 45 Network Jack LED PA46 Housing
1G Tab Up Single Port Ethernet Lan Rj 45 Connector , Rj 45 Network Jack LED PA46 Housing
1G Tab Up Single Port Ethernet Lan Rj 45 Connector , Rj 45 Network Jack LED PA46 Housing
1G Tab Up Single Port Ethernet Lan Rj 45 Connector , Rj 45 Network Jack LED PA46 Housing
Specifications
Brand Name :
GLGNET
Model Number :
JGA1T805-YGP
Certification :
ISO 9001, ISO 14001, UL, RoHS, IECQ QC080000,
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20KK ports /month
Delivery Time :
10 work day
Packaging Details :
Tray, Tube, Reel, Carton
Application :
1G Ethernet
Housing Material :
PA46
Latch :
Tab Up
LED :
Yellow Green
Mounting Type :
THT
Orientation :
90 degree
Description

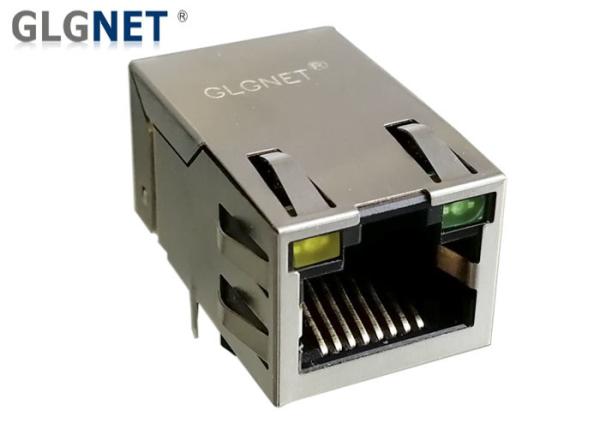

1G Tab Up Single Port LAN RJ 45 Connector with Yellow Green LED PA46 Housing

1. LAN RJ45 Connector Features

  • With or without POE Function
  • 90 ° or 180° Orentation
  • Complies with requirements of IEEE 802.3u standards
  • RJ45 connector is with 1000 Base - T magnetic
  • Broad set of configurations
  • -40°C to +85°C or 0°C to +70°C operating temperature range
  • Combinations of green, yellow, orange, and red LEDs
  • Comply with RoHS, REACH, UL requirements
  • Design for 1000 Base - T transmission over UTP-CAT5 cable

2. LAN RJ45 Connector Materials

  1. Housing: Class Filled PA46 UL94V-0 (ROHS)
  2. Insert: Class Filled PA46 UL94V-0 (ROHS)
  3. Sheliding: 0.2mm thickness copper alloy with Nickel Plated (RoHS)
  4. Contact: 0.35mm Phosphor Bronze plating over Nickel (RoHS)
  5. Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
  6. All the Raw materials meet RoHS
  7. Operating Temperature: 0 ℃ to +70 ℃, Storage Temperature : -40 to 85 ℃

3. GLGNET Advantages:

  • We support Costom Service;
  • Our products are compliant with RoHS, REACH and UL certification
  • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
  • 1500 Employees
  • 58 R&D Engineers.
  • 22000 square meters Factory
  • 20KK Prots / Month Capacity
  • ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
  • 20 years experiences in Magnetic RJ45 Connectors

4. LAN RJ45 Connector Applications:

  • LED TV
  • SMart TV
  • STB
  • PCs
  • Router,
  • Splitter
  • Switcher
  • Industrial process control
  • Networking and communications
  • Broadcast video
  • Internet of Things (Ethernet)
  • IP cameras, surveillance, and phones
  • Access points
  • Network interface cards (NIC)
  • Set-top boxes and video

5. GLGNET Customization Services

  • With or without POE function;
  • 90 ° or 180 ° Orientation
  • Supports to custom different structure, Tab - up or Tab - Down;
  • Supports to custom different Pin Length;
  • LED color can be green, yellow, orange, red and so on;
  • Operating Temp. Can be 0 ~ 70 ℃ or -40 ~ 85 ℃ ;
  • Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
  • Being with or without LED diode,
  • Being with or without EMT TAB ( EMI Spring , EMI Finger );
  • Being with or without lightpipes;
  • Printing LOGO

6. LAN RJ45 Connector Electrical Specification:

Parameter Specification
Brand GLGNET
Operating Temperature 0 to 70 ℃
Turns Ratio 1:1±2%

Open Circuit

Inductance (ocl)

 350uH MIN@ 100KHz/100mV with 8mA DC Bias
Insertion Loss (IL) -1.0dB MAX @ 0.3MHz – 100MHZ;

Return Loss (RL)

Z out = 100 OHM

-18dB MIN @ 1MHz – 30MHZ;

-13dB MIN @ 30MHz – 60MHZ;

-10dB MIN @ 60MHz – 100MHZ;

Crosstalk

Adjacent Channels

 -30dB MIN @ 1MHz – 100MHZ
Common Mode Rejection Ratio (CMRR) -30dB MIN @ 1MHz – 100MHZ
HI - POT 2250 VDC @ 60 Seconds

7. LAN RJ45 Connector ( JGA1T805-YGP) Attributes:

Part Number JGA1T805-YGP Brand GLGNET
Place of Origin Guangdong of China Certification CE /UL/FCC/Reach/RoHS
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch Up
Filter With Filter LED Option Can be with or without LED
LED Color Green/Yellow/ Orange/ Red etc Panel Stops Without Panel Stops
Shielded Yes Applies To  Routers, Set - TV box
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole Board Lock Without Board Lock
Housing Material  PA46 Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0
Performance Speed 1000 BASE-T Grounding Options Panel Ground and PCB Ground
Port Configuration  Single Number of Positions  8
Jack Configuration 1 x 1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)

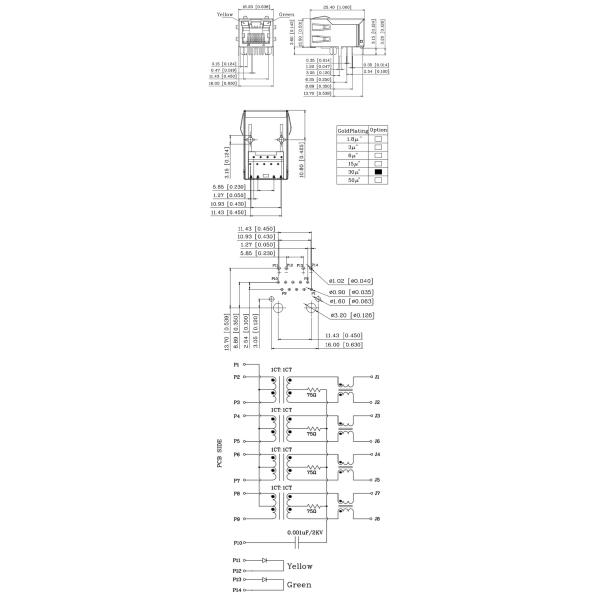

8. LAN RJ45 Connector Mechnical Drawing
