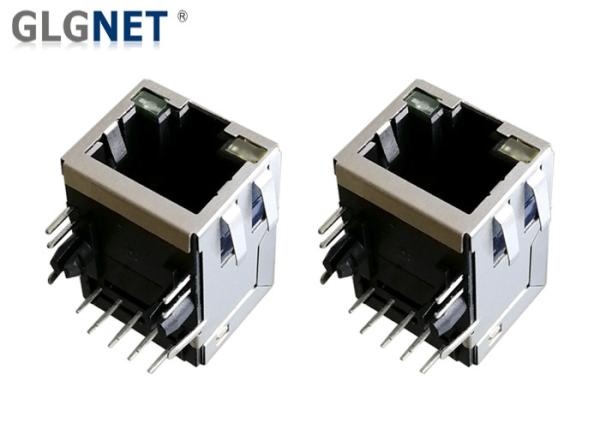

Single Port 1G Magnetic Lan Connector RJ 45 Tab Up Bi Color LED 90 Degree Orientation
Single Port 1G Magnetic Lan Connector RJ 45 Tab Up Bi Color LED 90 Degree Orientation
Single Port 1G Magnetic Lan Connector RJ 45 Tab Up Bi Color LED 90 Degree Orientation
Single Port 1G Magnetic Lan Connector RJ 45 Tab Up Bi Color LED 90 Degree Orientation
Specifications
Brand Name :
GLGNET
Model Number :
JRA1T805-D1D1
Certification :
ISO 9001, ISO 14001, UL, RoHS, IECQ QC080000,
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20KK ports /month
Delivery Time :
10 work day
Packaging Details :
Tray, Tube, Reel, Carton
Application :
1G LAN RJ 45
Port Number :
Single Port
Orientation :
90 degree
Latch :
Tab Up
LED Color :
Green/Yellow Bicolor
Mounting :
DIP
Description

Single Port 1G Magnetic LAN RJ 45 Connector Tab Up with Bi Color LED

1. GLGNET 1000 Base-T LAN RJ 45 Female Connector (JRA1T805-D1D1) Features

  • Complies with requirements of IEEE 802.3u standards
  • With 1G Base-T Integrated Transformer
  • Comply with RoHS, REACH, UL requirements
  • 0°C to +70°C or -40°C to +85°C operating temperature range
  • Combinations of Green Yellow bicolor LEDs
  • Support Customization as required

2. GLGNET 1000 Base-T LAN RJ 45 Female Connector (JRA1T805-D1D1) Attributes:

Electrical　
Grounding to PCB Yes
Grounding to Panel Panel Ground Tab
Shielded Yes
Turns Ratio 1:1±2%

Open Circuit

Inductance (ocl)

 350uH MIN@ 100KHz/100mV with 8mA DC Bias
Insertion Loss (IL) -1.0dB MAX @ 0.3MHz – 100MHZ;

Return Loss (RL)

Z out = 100 OHM

-18dB MIN @ 1MHz – 30MHZ;

-13dB MIN @ 30MHz – 60MHZ;

-10dB MIN @ 60MHz – 100MHZ;

Crosstalk

Adjacent Channels

 -30dB MIN @ 1MHz – 100MHZ
Common Mode Rejection Ratio (CMRR) -30dB MIN @ 1MHz – 100MHZ
HI - POT 2250 VDC @ 60 Seconds
General
Status Active
Category Modular Jacks/Plugs
Part # JRA1T805-D1D1
Component Type PCB Jack
Magnetic Yes, 1000 Base-T
Overview Magnetic Modular Jacks
Power over Ethernet (PoE) Non POE
Product Name Magnetic Jack, Modular Jack 8/8, RJ45
Physical　
Housing Color Black
Flammability UL94V-0
Tab Up
Jack Height (mm) 13.8
Jack Length (mm) 21.5
Jack Width (mm) 15.7
Soldering Foot Length (mm) 3.2
Contact Mating Area Plating 30u" Gold Plating, can be customed as 1.8", 3u", 6u", 15u", 30u", 50u"
EMI Spring Yes
Lightpipes/LEDs Green&Yellow/Green&Yellow bicolour LED
Material - Metal Brass, Phosphor Bronze, Nickel
Material - Plating Mating Gold
Material - Plating Termination Tin
Material - Plastic High Temperature Thermoplastic(PA46)
Orientation Right Angle (Side Entry)
PCB Locator Yes
PCB Retention Yes
Packaging Type Tray
Pitch - Termination Interface 1.27mm
Ports 1x1 single port
Storage Temperature 0° to +70°C
Temperature Range - Operating -40° to +85°C
Waterproof / Dustproof No
Remark The Part is recommended for wave soldering process, soldering temperature is 260 ℃ MAX. 10 Seconds Max;

3. GLGNET 1000 Base-T LAN RJ 45 Female Connector (JRA1T805-D1D1) Mechnical Drawing

Single Port 1G Magnetic Lan Connector RJ 45 Tab Up Bi Color LED 90 Degree Orientation

4. GLGNET 1000 Base-T LAN RJ 45 Female Connector (JRA1T805-D1D1) Applications:

  • LED TV
  • SMart TV
  • STB
  • PCs
  • Router,
  • Splitter
  • Switcher
  • IP cameras, surveillance, and phones
  • Printers
  • Set-top boxes and video
