90° Angle Shielding Pcb Ethernet Connector Stacked 2 X 8 Ports Side Entry With Shielding
90° Angle Shielding Pcb Ethernet Connector Stacked 2 X 8 Ports Side Entry With Shielding
90° Angle Shielding Pcb Ethernet Connector Stacked 2 X 8 Ports Side Entry With Shielding
90° Angle Shielding Pcb Ethernet Connector Stacked 2 X 8 Ports Side Entry With Shielding
90° Angle Shielding Pcb Ethernet Connector Stacked 2 X 8 Ports Side Entry With Shielding
90° Angle Shielding Pcb Ethernet Connector Stacked 2 X 8 Ports Side Entry With Shielding
Specifications
Brand Name :
GLGNET
Model Number :
JDKA8T826-GY
Certification :
ISO9001, ISO14001, IECQ QC080000, UL, RoHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20kkports/month
Delivery Time :
10 working days
Packaging Details :
Tray, Tube, Reel, Carton
LED Color :
Green Yellow
Number Of Ports :
2 x 8
Storage Temperature :
-40 to 85 ℃
Transmission :
1000 Base - T
Contact Finger :
6 u" Gold Plating
Shielding :
With
Description

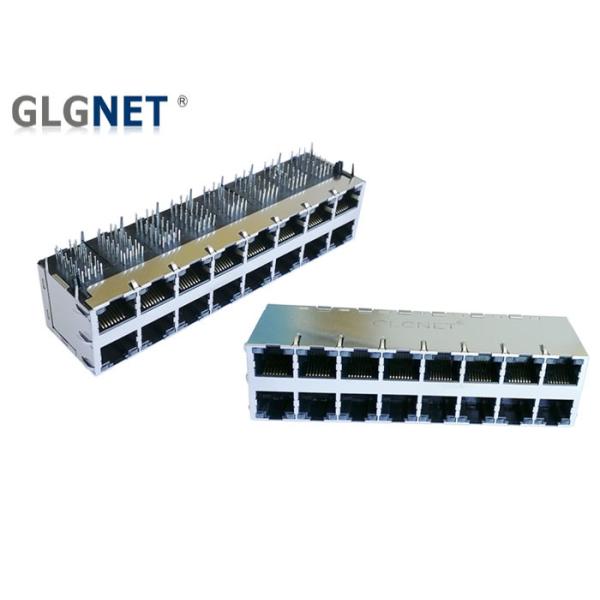

90° Angle Shielding Stacked RJ45 Connectors 2 x 8 Ports Side Entry

1. LED Specifications
Standard LED Wave Length Farward V (max) TYP
Green 570 nm 2.6V 2.1 V
Yellow 590 nm 2.6V 2.2V

2. Materials

  • Housing: Class Filled PBT UL94V-0 (ROHS)
  • Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 30 Microinches Gold At Mating Interface;
  • Operating Temperature: 0 ℃ to +70 ℃, Storage Temperature : -40 ℃ to +85 ℃
  • Shield: 0.2mm Thickness With Brass
  • Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
  • The Part is recommended for wave soldering process peak soldering temperature is 260 ℃ MAX. 10 Seconds Max;

3. Electrical Specifications @ 25 ℃ - Operating Temperature 0 ℃ to 70 ℃

Operating Temperature : 0℃ to 70 ℃

Turns Ratio : 1:1±3%

Open Circuit Inductance (OCL) : 350uH MIN@ 100KHz/100mV with 8mA DC Bias

Return Loss (RL) Z out = 100 OHM :

  • -18dB MIN @ 1MHz – 30MHZ;
  • -13dB MIN @ 30MHz – 60MHZ;
  • -10dB MIN @ 60MHz – 100MHZ;

Insertion Loss (IL): - 1.0dB MAX @ 0.3MHz – 100MHZ;

Crosstalk Adjacent Channels : -30dB MIN @ 1MHz – 100MHZ

Common Mode Rejection Ratio (CMRR) : -30dB MIN @ 1MHz – 100MHZ

HI - POT: 2250 VDC @ 60 Seconds

4. Product Advantages:

This Stacked RJ45 Connector is with 2 x 8 Ports

It is widely used for Industrial Switchers, Servers, Splitters and so on;

It is with Integrated Transformers, support 1000 Base - T Transmission Speed;

It is also with Green / Yellow LED lights;

5. Product Attributes

Application-Lan 1000 Base - T
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating 6u" Gold Plating
Cores per Port 8
LED Option With LED
Shielding Shielded, EMI Finger
Mounting Type Through Hole
Orientation 90° Angle (Right)
Latch TAB UP
Number of Ports 2 X 8
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 1000 BASE-T
Operating Temperature 0 TO 70℃
Storage Temperature -40 TO 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

6. Stacked RJ45 Connectors Applications

  • Internet of Things (Ethernet)
  • IP cameras, surveillance, and phones
  • Access points
  • Network interface cards (NIC)
  • Industrial process control
  • Networking and communications
  • Broadcast video
  • Storage
  • Set-top boxes and video
  • Power over Ethernet (PoE)
  • Test and measurement
  • Multifunction printers (MFP)

7. Customization Services

  • 90 ° or 180 ° Orientation
  • Single Port or Multiple Port, Ganged structure or Stacked Structure;
  • With or without POE function;
  • Supports to custom different structure, Tab - up or Tab - Down, Different size, Different Color, With or without Transformer;
  • Supports to custom different Pin Length;
  • LED color can be green, yellow, orange, red and so on;
  • Operating Temp. Can be 0 ~ 70 ℃ or -40 ~ 85 ℃ ;
  • Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
  • Being with or without EMT TAB ( EMI Spring , EMI Finger );
  • Being with or without lightpipes;
  • Printing LOGO

8. GLGNET Advantages

  • We have our Own Hardware Mold and Plastic Mold
  • Has 3 LS-WEDM Machines
  • Has 12 WEDM Machines and 8 CNC Machines
  • Has 20 Grinding Machines and 12 Electrical Discharge Machines
  • Has 30 Stamping Machines
  • Has 55 Plastic Injection Machines
  • Has Automatic Assembly Workshops
  • 20 years experiences in Magnetic RJ45 Connectors
  • 1500 Employees
  • 58 R&D Engineers.
  • 22000 square meters Factory
  • We support Costom Service;
  • Our products are compliant with RoHS, REACH and UL certification
  • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
  • 20KK Prots / Month Capacity
  • ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification

9. Mechanical Drawing

90° Angle Shielding Pcb Ethernet Connector Stacked 2 X 8 Ports Side Entry With Shielding
