DIP Mounting Stacked RJ45 Connectors Modular Jack With 5G Integrated Transformer
DIP Mounting Stacked RJ45 Connectors Modular Jack With 5G Integrated Transformer
DIP Mounting Stacked RJ45 Connectors Modular Jack With 5G Integrated Transformer
DIP Mounting Stacked RJ45 Connectors Modular Jack With 5G Integrated Transformer
DIP Mounting Stacked RJ45 Connectors Modular Jack With 5G Integrated Transformer
DIP Mounting Stacked RJ45 Connectors Modular Jack With 5G Integrated Transformer
Specifications
Brand Name :
GLGNET
Model Number :
JDLM4T86C 5G RJ45 Jack
Certification :
ISO9001, ISO1400, UL, RoHS, IECQ QC080000
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20kkports/month
Delivery Time :
10 working days
Packaging Details :
Tray, Tube, Reel, Carton
Ports :
2x4
Shielded :
Yes
Mounting Type :
DIP
Light Pipes :
Yes
EMI Spring :
Yes
Application :
5G Base-T Ethernet
Description

Stacked RJ45 Modular Jack with 5G Integrated Transformer 2x4 RJ45 Connector

1) 5G 2x4 Stacked RJ45 Connectors (JDLM4T86C ) Attributes:

Part Number JDLM4T86C Brand GLGNET
Place of Origin Guangdong of China Certification CE /UL/FCC/Reach/RoHS
Product Type  RJ45 Modular Jack Connector Style 2x4 8P8C RJ45 Jack
Integrated Magnetics Yes, With 5G Magnetics LED/Lightpipes Light pipes
LED Color N/A Panel Stops Yes
Shielded Yes Applies To  5G Ethernet
Performance Speed 5G Base T Grounding Options Panel Ground and PCB Ground
Port Configuration  8P8C Number of Positions  8
Jack Configuration 2 x 4 ports Terminals per Port 8
Shield Material Brass PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  50u gold plating, can be customized Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole Board Lock Yes
Housing Material  Rj45 : Glass filled PA46 ( Black ) Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

2) 5G 2x4 Stacked RJ45 Connectors (JDLM4T86C ) Materials

  1. Housing: Class Filled PA46(BLACK) UL94V-0 (ROHS)
  2. Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 0 Microinches Gold At Mating Interface;
  3. Shield: 0.2mm Thickness With Brass
  4. Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
  5. The Part is recommended for wave soldering process peak soldering temperature is 260 ℃ MAX. 10 Seconds Max;
  6. Operating Temperature: 0 ℃ to +70 ℃
  7. Storage Temperature: -40 ℃ to +85 ℃

3) 5G 2x4 Stacked RJ45 Connectors (JDLM4T86C ) Electronical Specifications

Parameter Specification
Operating Temperature 0℃ to 70 ℃
Turns Ratio 1:1±2%

Open Circuit

Inductance (ocl)

1600uH MIN@ 100KHz/100mV with 8mA DC Bias for (Channel 1,2,3,4)
Insertion Loss (IL)

-0.5dB MAX @ 1MHz – 50MHZ;

-1.0dB MAX @ 50MHz – 125MHZ;

-2.0dB MAX @ 125MHz – 200MHZ;

-2.5dB MAX @ 200MHz – 250MHZ;

Return Loss (RL)

Z out = 100 OHM

-20dB MIN @ 1MHz – 50MHZ;

-20+15LOG(f/40MHz) dB MIN @ 50MHz – 250MHZ;

Crosstalk

Adjacent Channels

-30dB MIN @ 1MHz – 125MHZ

-25dB MIN @ 125MHz – 250MH
Common Mode Rejection Ratio (CMRR) -23dB MIN @ 1MHz – 250MHZ
Common To Differential Mode Rejection (REF) -23dB MIN @ 1MHz – 250MHZ
HI - POT 2250 VDC @ 60 Seconds

4) 5G 2x4 Stacked RJ45 Connectors (JDLM4T86C ) Applications

Networking equipment

  • Hubs
  • Switches
  • Routers
  • PCs
  • Servers
  • IDC
  • Workstations
  • Motherboards

Equipment utilizing a network port

  • NICs
  • Servers
  • PCs
  • Consumer Devices

5) Customization Services

  • 90 ° or 180 ° Orientation
  • Single Port or Multiple Port, Ganged structure or Stacked Structure;
  • With or without POE function;
  • Tab - up or Tab - Down, With or without Transformer, Shielded or Plastic (supports different color)
  • Custom the soldering terminal length as requirements
  • LED color can be green, yellow, orange, red and so on;
  • Operating Temp. Can be 0 ~ 70 ℃ or -40 ~ 85 ℃ ;
  • Contact Finish can be with 3u", 6u", 15u", 30u", 50u" gold plating;
  • Being with or without EMI TAB ( EMI Spring , EMI Finger );
  • Being with or without lightpipes/LEDs
  • Printing LOGO

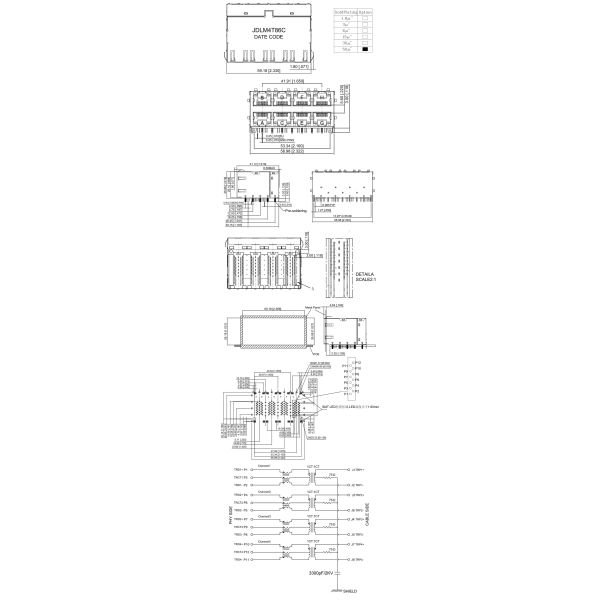

6) 5G 2x4 Stacked RJ45 Connectors (JDLM4T86C ) Mechanical Drawing :

DIP Mounting Stacked RJ45 Connectors Modular Jack With 5G Integrated Transformer
