Copper Alloy Preplated RJ45 Single Port Latch Up With Integrated Transformer

1. RJ45 Single Port Materials:

  • Housing: Class Filled PA46 ( Black) UL94V-0 (ROHS)
  • Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
  • The Part is recommended for wave soldering process peak soldering temperature is 260 ℃ MAX. 10 Seconds Max;
  • Operating Temperature: 0 ℃ to +70 ℃ or -40 ℃ to 85 ℃ , Storage Temperature : -40 ℃ to +85 ℃
  • Shielding Shell : 0.2mm Thickness with Brass
  • Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 6 Microinches At Mating Interface;

2. RJ45 Single Port Electrical Specification

Parameter Specification
Brand GLGNET
Operating Temperature 0℃ to 70 ℃
Turns Ratio 1:1±2%

Open Circuit

Inductance (ocl)

 350uH MIN@ 100KHz/100mV with 8Ma DC Bias
Insertion Loss (IL) -1.0dB MAX @ 0.3MHz – 100MHZ;

Return Loss (RL)

Z out = 100 OHM

-18dB MIN @ 1MHz – 30MHZ;

-13dB MIN @ 30MHz – 60MHZ;

-10dB MIN @ 60MHz – 100MHZ;

Crosstalk

Adjacent Channels

 -30dB MIN @ 1MHz – 100MHZ
Common Mode Rejection Ratio (CMRR) -30dB MIN @ 1MHz – 100MHZ
HI - POT 2250 VDC @ 60 Seconds

3. RJ45 Single Port Features

  • Complies with requirements of IEEE 802.3u IEEE 802.3ab standards
  • RJ45 connector with 10 / 100 / 1000 BASE-TX magnetic, or 2.5G / 5G / 10G Transformer
  • Comply with RoHS requirements
  • Design for 10 / 100 / 1000 / 2.5G / 5G / 10G BASE transmission over UTP-5 / UTP-6 cable
  • Broad set of configurations
  • Supports 10/100Base-T, 1000Base-T, 2.5GBase-T, 5GBase-T or 10G Base - T
  • Compatible with surface-mount with paste-in-hole (PIH) technology
  • -40°C to +85°C or 0°C to +70°C operating temperature range
  • Supports PoE and PoE+ (10/100Base-T)
  • Combinations of green, yellow, orange, and red LEDs

4. RJ45 Single Port Product Attributes

Applications 10 / 100 Base - T
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating 6u", 15u", 30u", 50u" Gold Plating
Cores per Port 8
Diodes Can be with or without Without DIODES
LED Option Can be with or Without LED
Shielding Shielding Shell
Mounting Type Through Hole
Orientation 90° Angle (Right)
Latch Up
Number of Ports 1 X 1 Single Port
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10 / 100 BASE-T
Operating Temperature 0 TO 70 ℃ or -40 TO 85 ℃
Storage Temperature -40 TO 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

5. GLGNET Customization:

  • Supports to custom different structure, Tab - up or Tab - Down;
  • Supports to custom different Pin Length;
  • Being with or without LED diode,
  • Being with or without EMT TAB ( EMI Spring , EMI Finger );
  • Being with or without lightpipes;
  • LED color can be green, yellow, orange, red and so on;
  • Operating Temp. Can be 0 ~ 70 ℃ or -45 ~ 80 ℃ ;
  • Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;

6. RJ45 Single Port Applications:

  • Broadcast video
  • Set-top boxes and video
  • Power over Ethernet (PoE)
  • Test and measurement
  • Multifunction printers (MFP)
  • IP cameras, surveillance, and phones
  • Access points
  • Network interface cards (NIC)
  • Industrial process control
  • Networking and communications

7. GLGNET Advantages:

  • Our products are compliant with RoHS, REACH and UL certification
  • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
  • 20KK Prots / Month Capacity
  • ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
  • 20 years experiences in Magnetic RJ45 Connectors
  • 1500 Employees
  • 58 R&D Engineers.
  • 22000 square meters Factory

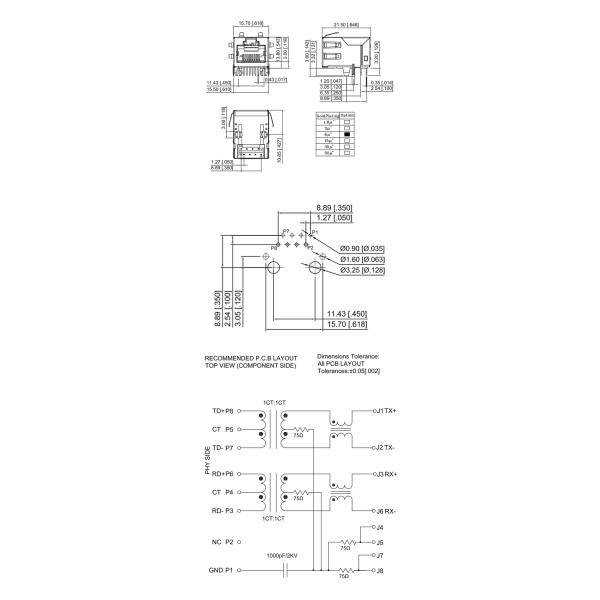

8. RJ45 Single Port Mechnical Drawing
