Light Pipes Rj45 8P8C Connector Through Hole -40 To 85 ℃ Operating Temperature
1. RJ45 Single Port ( JPFA1T801AW) Attributes:
Part Number | JPFA1T801AW | Brand | GLGNET |
Place of Origin | Guangdong of China | Certification | CE /UL/FCC/Reach/RoHS |
Product Type | Connector-Modular | Connector Style | Jack |
Jack Type | RJ45 | Connector Type | Modular Jack |
Latch Style | Standard | Latch | Down |
Filter | With Filter | LED Option | Can be with or without LED |
Light Pipe | With or Without | POE | With or Without |
LED Color | Green/Yellow/ Orange/ Red etc | Panel Stops | Without Panel Stops |
Shielded | Yes | Applies To | SET - TV BOX |
Performance Speed | 10 / 100 / 1000 BASE-T | Grounding Options | Panel Ground and PCB Ground |
Port Configuration | Single | Number of Positions | 8 |
Jack Configuration | 1 x 1 | Terminals per Port | 8 |
Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze |
Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
Termination Method to PC Board | Through Hole | Board Lock | Without Board Lock |
Housing Material | PA46 | Housing Color | Black |
Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
2. RJ45 Single Port Materials
3. RJ45 Single Port Electrical Specification:
Parameter | Specification |
Brand | GLGNET |
Operating Temperature | -40 to 85 ℃ |
Turns Ratio | 1:1±2% |
Open Circuit Inductance (ocl) | 350uH MIN@ 100KHz/100mV with 8mA DC Bias |
Insertion Loss (IL) | -1.0dB MAX @ 0.3MHz – 100MHZ; |
Return Loss (RL) Z out = 100 OHM | -18dB MIN @ 1MHz – 30MHZ; -16dB MIN @ 30MHz – 60MHZ; -10dB MIN @ 60MHz – 100MHZ; |
Crosstalk Adjacent Channels | -30dB MIN @ 1MHz – 100MHZ |
Common Mode Rejection Ratio (CMRR) | -30dB MIN @ 1MHz – 100MHZ |
HI - POT | 2250 VDC @ 60 Seconds |
4. RJ45 Single Port Features
5. GLGNET Advantages:
6. RJ45 Single Port Applications:
7. Customization Services

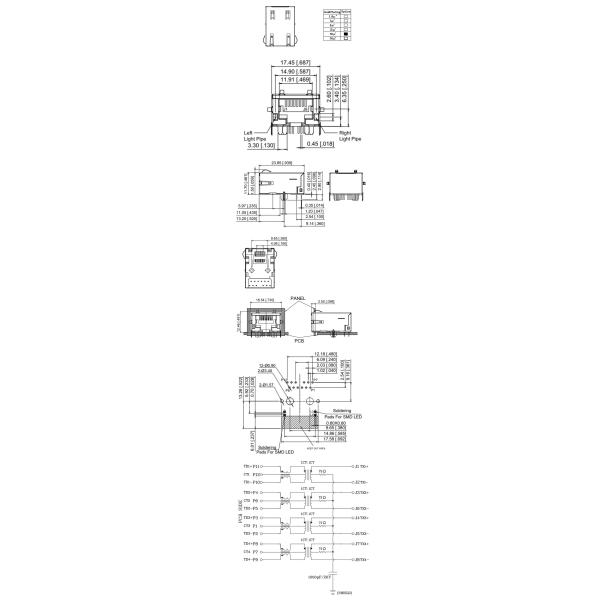

8. RJ45 Single Port Mechnical Drawing
