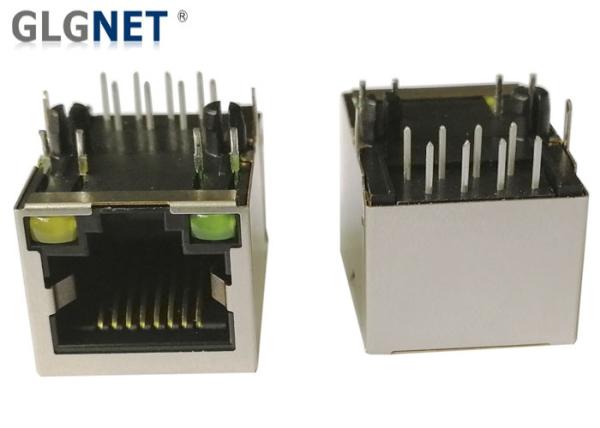

Green / Yellow LED Single Port RJ45 Modular Jack Shielded Shell Latch Down
Green / Yellow LED Single Port RJ45 Modular Jack Shielded Shell Latch Down
Green / Yellow LED Single Port RJ45 Modular Jack Shielded Shell Latch Down
Green / Yellow LED Single Port RJ45 Modular Jack Shielded Shell Latch Down
Specifications
Brand Name :
GLGNET
Model Number :
5931-Q-S-C-L-8C(G/Y) -1
Certification :
QC080000 , RoHS , UL, ISO9001 , ISO14001,
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20kkports/month
Delivery Time :
10 work days
Packaging Details :
Tray, Reel, Tube, Carton
Type :
Green / Yellow
Application :
Without Transformer
Gender :
Yes
Speed :
100BASE
Number of Ports :
1 Port
LED Option :
Copper Alloy
Description

Green / Yellow LED Single Port RJ45 Modular Jack Shielded Shell Latch Down

1. Product Attributes

Categories RJ45 Connectors Without Magnetics
Modular Connectors - Jacks Without Magnetics
Manufacturer Shenzhen GLGNET Electronics Co.,Ltd
Series GLGNET®
Packaging Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
LED Color Green, Yellow
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Lock
Tab Direction Down
Contact Material Copper Alloy
Contact Finish Gold
Operating Temperature -40°C ~ 70°C
Shield Material Copper Alloy
Housing Material Glass Filled PA46 Black

2. Features

  • Broad set of configurations
  • Supports 10/100Base-T
  • Supports PoE and PoE+ (10/100Base-T)
  • Compatible with surface-mount with paste-in-hole (PIH) technology
  • -40°C to +70°C operating temperature range
  • Combinations of green, yellow LEDs

3. Applications

  • Internet of Things (Ethernet)
  • IP cameras, surveillance, and phones
  • Access points
  • Network interface cards (NIC)
  • Industrial process control
  • Networking and communications
  • Broadcast video
  • Storage
  • Set-top boxes and video
  • Power over Ethernet (PoE)
  • Test and measurement
  • Multifunction printers (MFP)

4. GLGNET Customization

  • Supports to custom different structure;
  • Supports to custom different Pin Length;
  • Support to be with or without LED diode,
  • Supports to be with or without EMT TAB ( EMI Spring , EMI Finger );
  • LED color can be green, yellow, orange, red and so on;
  • Supports to be with or without lightpipes;
  • Operating Temp. Can be 0 ~ 70 ℃ or -45 ~ 80 ℃ ;
  • Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
  • Latch Up Or Down

5. GLGNET Advantages

  • 20 years experiences in Magnetic RJ45 Connector
  • 1500 Employees
  • 58 R&D Engineers
  • 20KK Prots / Month Capacity
  • ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification.
  • Our products are compliant with RoHS, REACH and UL certification
  • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on

6. RJ45 Single Port Connector Used For TV Set Box

Green / Yellow LED Single Port RJ45 Modular Jack Shielded Shell Latch Down

7. Mechanical Drawing

Green / Yellow LED Single Port RJ45 Modular Jack Shielded Shell Latch Down

Green / Yellow LED Single Port RJ45 Modular Jack Shielded Shell Latch Down
