Tab Up Female Connector Rj45 Vertical Mount Latch Up POE Function
Tab Up Female Connector Rj45 Vertical Mount Latch Up POE Function
Tab Up Female Connector Rj45 Vertical Mount Latch Up POE Function
Tab Up Female Connector Rj45 Vertical Mount Latch Up POE Function
Specifications
Brand Name :
GLGNET
Model Number :
JGCA1S1004W-GY - 1
Certification :
ISO 9001, ISO 14001, UL, RoHS, IECQ QC080000,
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20KK ports /month
Delivery Time :
10 work day
Packaging Details :
Tray, Tube, Reel, Carton
Latch :
Up
POE Function :
Yes
LED Option :
Yes
Working Temperature :
40 to 85 ℃
Orientation :
90 °
Mount Type :
Through Hole
Description

Tab Up Female Connector Rj45 Vertical Mount Latch Up POE Function

1. RJ45 Single Port Features

  • Broad set of configurations
  • Compatible with Through hole / Offset / PIP Mount Type
  • -40°C to +85°C or 0°C to +70°C operating temperature range
  • Complies with requirements of IEEE 802.3u or IEEE 802.3ab standards
  • RJ45 connector with 10 / 100 BASE-TX magnetic
  • Design for 10 / 100 BASE transmission over UTP-5 cable
  • Comply with RoHS requirements

2. GLGNET RJ45 Single Port ( JGCA1S1004W-GY ) Advantages:

  • With Integrated 10 / 100 / 1000 Base T Transformers / Magnetics
  • Support -40 to 85 ℃ Operating Temperature
  • 25.4 mm (1.000 Inch ) Length
  • 3.17 mm Soldering Pin
  • With Integrated LED, show the link status to user
  • With POE Function, Save cost and PCB Space
  • Through Hole Mount Type
  • The most Important, GLGNET support Customization Service, we not only supply standard RJ45 Connector, we also can custom the RJ45 connector as required;

3. GLGNET Customization service as following:

  • Supports to custom different structure, Tab - up or Tab - Down, Different size, Different Color, With or without Transformer;
  • 90 ° or 180 ° Orientation
  • Single Port or Multiple Port, Ganged Structure or Stacked Structure;
  • With or without POE function;
  • Supports to custom different Pin Length;
  • LED color can be green, yellow, orange, red and so on;
  • Operating Temp. Can be 0 ~ 70 ℃ or -40 ~ 85 ℃ ;
  • Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
  • Being with or without LED diode,
  • Being with or without EMT TAB ( EMI Spring , EMI Finger );
  • Being with or without lightpipes;
  • Printing LOGO
  • The integrated Transformer Supports 10 / 100 / 1000 / 2.5G / 5G even 10G Transmission Speed

4. RJ45 Single Port Materials

  • Housing: Class Filled PA46 UL94V-0 (ROHS)
  • Shielding : 0.2mm thickness Brass ( C2680 ) Finish 30 u" Min Nickel Overall
  • Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 6U" Gold At Mating Interface
  • Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
  • The Part is recommended for wave soldering process peak soldering temperature is 260 ℃ MAX. 10 Seconds Max;
  • Operating Temperature: -40 to 85 ℃, Storage Temperature : -40 to 85 ℃

5. RJ45 Single Port Electrical Specification:

Parameter Specification
Brand GLGNET
Operating Temperature -40 to 85 ℃
Storage Temperature -40 to 85 ℃
Turns Ratio 1:1±3%

Open Circuit

Inductance (ocl)

220uH MIN@ 100KHz/100mV with 19mA DC Bias For Channel 1, 2 , 3 ,4

350uH MIN@ 100KHz/100mV with 8mA DC Bias For Channel 1, 2, 3, 4
Insertion Loss (IL) -1.2dB MAX @ 0.3MHz – 100MHZ;

Return Loss (RL)

Z out = 100 OHM

-18dB MIN @ 1MHz – 30MHZ;

-13dB MIN @ 30MHz – 60MHZ;

-10dB MIN @ 60MHz – 100MHZ;

Crosstalk

Adjacent Channels

 -30dB MIN @ 1MHz – 100MHZ
Common Mode Rejection Ratio (CMRR) -30dB MIN @ 1 MHz – 100MHZ
DC Current Voltage Rating - PSE Pins

750mA Maximum @ 57V DC (Continuous ) for PSE Channel ( P13 & P14, P15 &P16

1.2 A Max @ 57V DC for 200 milliseconds
HI - POT 2250 VDC @ 60 Seconds

6. RJ45 Single Port LED Light Specification :

Standard LED Wave Length Farward (max) TYP
Green 565 nm 2.4V 2.2V
Yellow 590 nm 2.5V 2.1V

7. RJ45 Single Port ( JGCA1S1004W-GY ) Attributes:

Brand GLGNET
Part Number JGCA1S1004W-GY
Application-Lan PCBs
POE Function Yes
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"/ 50u"
Diodes Yes
LED Option With Green LED
Shielding With Shielding Shell, but no Shielded EMI Tabs, can be customized as required
Mounting Type Through Hole
Orientation Right Angle ( 90 ° )
Latch Latch Up
Number of Ports 1 X 1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.535 inch
Package Height (mm) 13.60 mm
Package Length (Inches) 1.000 inch
Package Length (mm) 25.4 mm
Package Width (Inches) 0.643 inch
Package Width (mm) 16.33 mm
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs Without, can be customized as required
Speed 10 / 100 / 1000 BASE-T
Temperature -40 TO 85 ℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

8. GLGNET Advantages

  • We have our Own Hardware Mold and Plastic Mold
  • Has 3 LS-WEDM Machines
  • Has 12 WEDM Machines and 8 CNC Machines
  • Has 20 Grinding Machines and 12 Electrical Discharge Machines
  • Has 30 Stamping Machines
  • Has 55 Plastic Injection Machines
  • Has Automatic Assembly Workshops
  • Fast Response, Professional R&D Engineers, Positive Service Team, Ensure all process effective and well-organized;
  • 20 years experiences in Variety Connectors
  • 1500 Employees
  • 58 R&D Engineers.
  • 22000 square meters Factory
  • 20kk ports / month Capacity
  • We support Costom Service;
  • Our products are compliant with RoHS, REACH and UL certification
  • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
  • 20KK Prots / Month Capacity

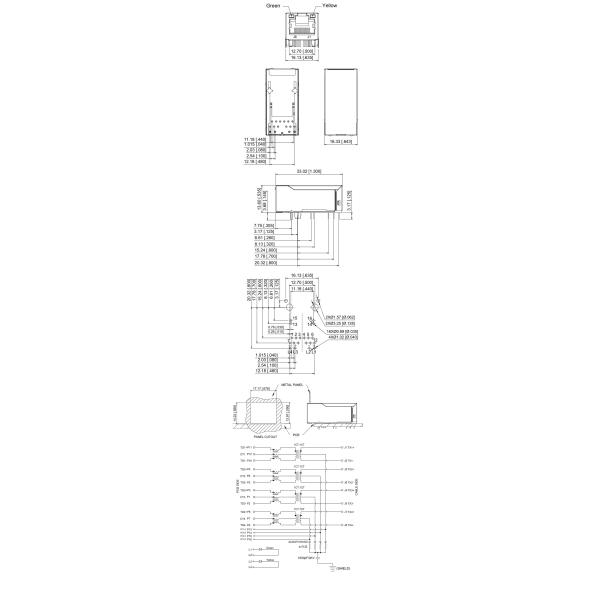

9. RJ45 Single Port Mechanical Drawing

You can Know more details from Folllwing Drawing

Tab Up Female Connector Rj45 Vertical Mount Latch Up POE Function
