Industrial Switcher Poe RJ45 Connector 30 U Gold Plating With Integrated Magnetics
Industrial Switcher Poe RJ45 Connector 30 U Gold Plating With Integrated Magnetics
Industrial Switcher Poe RJ45 Connector 30 U Gold Plating With Integrated Magnetics
Industrial Switcher Poe RJ45 Connector 30 U Gold Plating With Integrated Magnetics
Specifications
Brand Name :
GLGNET
Model Number :
JDEA8E1001-D1D1
Certification :
ISO9001, ISO14001, IECQ QC080000, UL, RoHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20kkports/month
Delivery Time :
10 working days
Packaging Details :
Tray, Tube, Reel, Carton
Applications :
1000 Base - T
Poe + :
YES
Operating Temperature :
0 to 70 ℃
Ports :
2 x 8
Contact Finger :
30 u" Gold Plating
Shielding :
With
Description

Industrial Switcher Poe RJ45 Connector With Integrated Magnetics

1. Electrical Specifications @ 25 ℃ - Operating Temperature 0 ℃ to 70 ℃

ParameterSpecification
Operating Temperature0℃ to 70 ℃
Turns Ratio1:1±3%

Open Circuit
Inductance (ocl)

220uH MIN@ 100KHz/100mV with 19Ma DC Bias for (Channel 1,2, 3, 4)
350uH MIN@ 100KHz/100mV with 8Ma DC Bias for (Channel 1, 2, 3, 4)

Insertion Loss (IL)-1.0dB MAX @ 0.3MHz – 100MHZ;

Return Loss (RL)
Z out = 100 OHM

-18dB MIN @ 1MHz – 30MHZ;
-13dB MIN @ 30MHz – 60MHZ;
-10dB MIN @ 60MHz – 100MHZ;

Crosstalk
Adjacent Channels

-30dB MIN @ 1MHz – 100MHZ
Common Mode Rejection Ratio (CMRR)-30dB MIN @ 1MHz – 100MHZ
DC current/voltage rating – pse pins

600 Ma MAXIMUM @ 57 VDC ( continuous)
For PSE Channel ( P11 & P12, P13 & P14)

HI - POT2250 VDC @ 60 Seconds
2. LED Specifications
Standard LEDWave LengthFarward V (max)TYP
Orange565 nm2.4 V2.2 V
Yellow590 nm2.5V2.1V

3. Materials


  • Housing: Class Filled PBT UL94V-0 (ROHS)
  • Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 30 Microinches Gold At Mating Interface;
  • Shield: 0.2mm Thickness With Brass
  • Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
  • The Part is recommended for wave soldering process peak soldering temperature is 260 ℃ MAX. 10 Seconds Max;
  • Operating Temperature: 0 ℃ to +70 ℃, Storage Temperature : -40 ℃ to +85 ℃

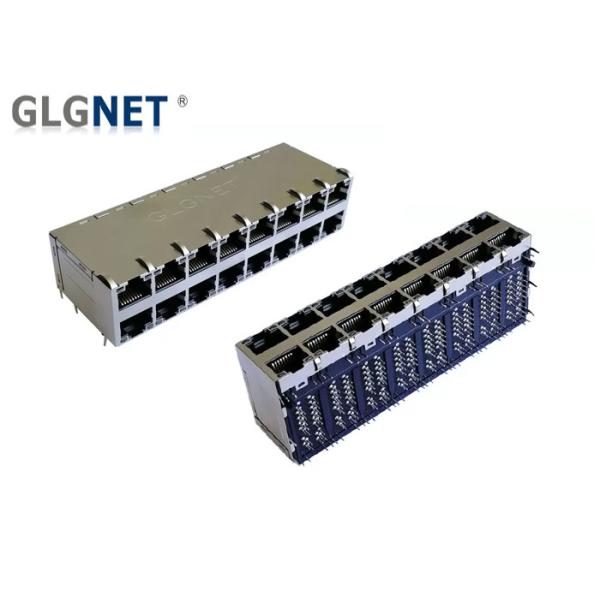

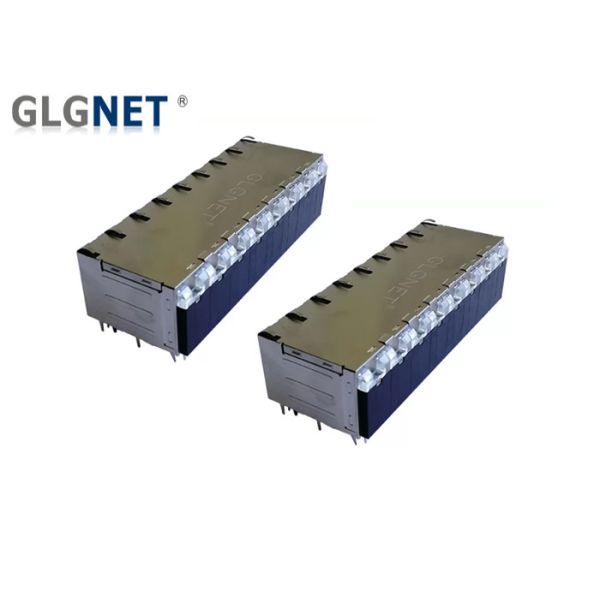

4. Product Structure​


This Stacked RJ45 Connector is with 2 x 8 Ports, support POE ( power over Ethernet) funciton;
It is widely used for Industrial Switchers, Servers, Splitters and so on;
It is with Integrated Transformers, support 1000 Base - T Transmission Speed;
It is also with Green / Orange LED lights;


5. Product Attributes

Application-LanETHERNET With Poe +
AutomDXYES
Bst CircuitYES
Configuration RXT,C
Configuration TXT,C
Contact Mating Area Plating30u" Gold Plating
Cores per Port8
LED OptionWith LED
ShieldingShielded, EMI Finger
Mounting TypeThrough Hole
Orientation90° Angle (Right)
LatchTAB UP
Number of Ports2 X 8
PCBFR4
PCB Mount AngleSIDE ENTRY
PCB Retaining PostT POST
Pin TypeTHT SOLDER
RoHS CompliantYES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
SearchYES
Shield EMI TabsWITH
Speed1000 BASE-T
Operating Temperature0 TO 70℃
Storage Temperature-40 TO 85℃
Turns Ratio RX1CT:1CT
Turns Ratio TX1CT:1CT



6. Why Choose GLGNET?

  • Our products are compliant with RoHS, REACH and UL certification
  • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
  • 20KK Prots / Month Capacity
  • ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
  • 20 years experiences in Magnetic RJ45 Connectors
  • 1500 Employees
  • 58 R&D Engineers.
  • 22000 square meters Factory



7. Customization Services

  • 90 ° or 180 ° Orientation
  • Single Port or Multiple Port, Ganged structure or Stacked Structure;
  • With or without POE function;
  • Supports to custom different structure, Tab - up or Tab - Down, Different size, Different Color, With or without Transformer;
  • Supports to custom different Pin Length;
  • LED color can be green, yellow, orange, red and so on;
  • Operating Temp. Can be 0 ~ 70 ℃ or -40 ~ 85 ℃ ;
  • Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
  • Being with or without EMT TAB ( EMI Spring , EMI Finger );
  • Being with or without lightpipes;
  • Printing LOGO



8. Mechanical Drawing

Industrial Switcher Poe RJ45 Connector 30 U
