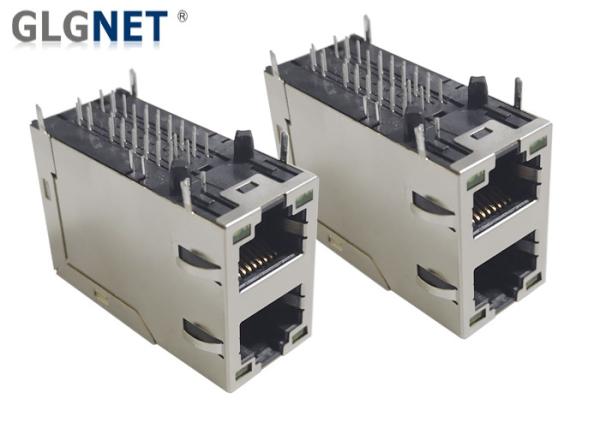

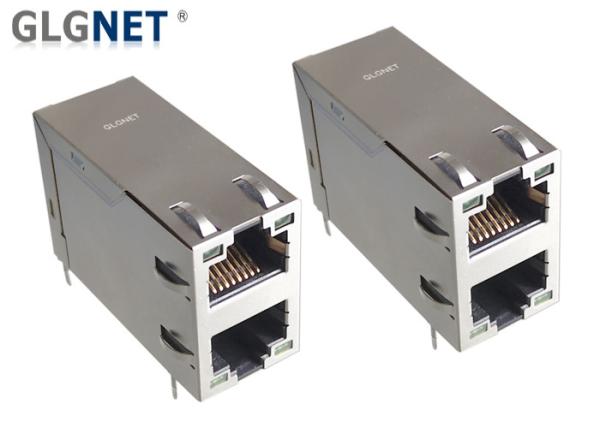

Stacked 2X1 10G Magnetic RJ45 Connector 4 Channels PHY Through Hole Mounting
Stacked 2X1 10G Magnetic RJ45 Connector 4 Channels PHY Through Hole Mounting
Stacked 2X1 10G Magnetic RJ45 Connector 4 Channels PHY Through Hole Mounting
Stacked 2X1 10G Magnetic RJ45 Connector 4 Channels PHY Through Hole Mounting
Specifications
Brand Name :
GLGNET
Model Number :
JDEG1T87B-D1/D1
Certification :
ISO9001, ISO14001, IECQ QC080000, UL, RoHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20kkports/month
Delivery Time :
10 working days
Packaging Details :
Tray+Carton
PHY :
4 Channels
Application :
10G Ethernet
Mounting :
Through Hole
Plating :
50u" Gold plating on contact area
Working Temp. :
0-70C
PoE :
Non
Description

Stacked 2X1 10G Magnetic RJ45 Connector 4 Channels PHY 10G Networking Connector

1. JDEG1T87B-D1/D1 10G RJ45 Structure

GLGNET P/N

JDEG1T87B-D1/D1

Description

2 Ports Stacked 10G RJ45 with LED

Port Form

2 Port

PIN Assignment

8P8C

Connector Type

Modular Jack

Data Rates

10G BASE-T

POE

Non POE

Surge Protection

No

Angle

Right Angle (90°), Side Entry

Tab

NA

EMI Spring

Yes

LED

Yes

Light Pipe

No

LED Color

Left:Green/Yellow, Right: Green/Yellow

RJ45 Body Depth (mm)

41.12

RJ45 Body Height (mm)

17.00

RJ45 Body Width (mm)

27.18

Contact area gold plating

3u", 6u", 15u", 30u", 50u" Available

Mounting Type

Through Hole / DIP

Operating Temperature

0 To 70℃

Storage Temperature

-40 to +85 ℃

2. JDEG1T87B-D1/D1 10G RJ45 Materials

Plastic Housing

Glass filled PA6T BLACK UL94V-0 (ROHS)

Contact Terminal

Phosphor Bronze, 50-100 microinchs MIN.overall ductile nickel underplate
with selected 50 microinches gold at mating interface

Shied

0.2mm thickness with brass

Rules

Jack cavity conforms to FCC rules and regulation part 68 subpart F

Soldering

This part is recommended for wave soldering process,
peak soldering temperature is 260℃ MAX, 10 seconds MAX.

3. JDEG1T87B-D1/D1 10G RJ45 Electronic Parameter

Turns Ratio

1:1±2%

Open Circuit
Inductance (ocl)

180uH MIN@ 100KHz/100mV with 0mA DC Bias (For Channel 1, 2, 3, 4 )

Insertion Loss (IL)

-3.0dB Max @100KHZ;

-2.0dB Max @1-400MHZ (-1.4dB TYP)

Return Loss (RL)
Z out = 100 OHM

-22dB MIN @ 1MHz – 100MHZ;

-22+20.75xLOG ( F/100 ) dB MIN @ 100MHz - 500MHZ

　

Crosstalk
(Adjacent Channel)

-28dB MIN @ 1MHz

-28dB MIN @ 100MHz

-19dB MIN @ 100-500MHZ

REFLECTED CM TO DIFF
CONVERSION(Ref.)
CM TO DM

-30dBMIN@50MHz

-27dBMIN@100MHz

-24dBMIN@200MHz

-22dBMIN@300MHz

-21dBMIN@400MHz

-20dBMIN@500MHz

REFLECTED DlFF TO CM
CONVERSION(Ref.)
DM TO CM

-48dBMIN@1MHz

-35dBMIN@ 100MHz

-24dBMIN@400MHz

-24dBMIN@500MHz

CM TO DIFF CONVERSION(Ref.)
CDMR

-48dBMIN@50MHz

-42dBMlN@100MHz

-36dBMIN@200MHz

-33dBMIN@300MHz

-30dBMIN@400MHz

-28dBMIN@500MHz

CM TO CM ATTENUATION(Ref.)
CMRR

-22dBMIN@1MHz

-20dBMIN@500MHz

-20dBMIN@800MHz

-17dBMIN@1000MHz

DC CURRENT/VOLTAGE RATING-PSE PINS

NA

HI - POT

2250 VDC @ 60 Seconds (Channel 1, 2 , 3 , 4 )

4. JDEG1T87B-D1/D1 10G RJ45 LED Desc.

LED Color

Wave Length

Forward current

TYP

Forward Voltage (max)

Green

565 nm

20mA

2.2V

2.4V

Yellow

590 nm

20mA

2.1V

2.5V

5. JDEG1T87B-D1/D1 10G RJ45 Mechanical Drawing

Stacked 2X1 10G Magnetic RJ45 Connector 4 Channels PHY Through Hole Mounting

6. JDEG1T87B-D1/D1 10G RJ45 Applications

  • Servers

  • Switchs

  • Data center

  • Router,

  • PC

Stacked 2X1 10G Magnetic RJ45 Connector 4 Channels PHY Through Hole Mounting

This is not a definitive list of applications for this product. It represents some of the more common uses.

7. GLGNET Advantages

  • We support Custom Service;

  • 20 years experiences in Magnetic RJ45 Connectors

  • 1800 Employees

  • More than 100 R&D Engineers.

  • 35000 square meters Factory

  • Our products are compliant with RoHS, REACH and UL certification

  • Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on

  • 20KK Prots / Month Capacity

  • ISO9001, ISO14001, QC080000, OHSAS18001, IATF16949, 6-Sigma and IECC international management system certification

  • We have our Own Tooling Center, Plastic injection workshop, stamping workshop, Molding workshop,Smart equipments Dept. Assembply Workshop etc.
