Specifications
Brand Name :
WANDAYE
Model Number :
WS-1000-V
Certification :
ISO9001:2008
Place of Origin :
Foshan.China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
20 SETS
Delivery Time :
Within 30 days after the advance payment is made
Packaging Details :
Film and wooden case
Model :
1000
Magnetic field strength(T) :
2.5
Input voltage(ACV) :
380
Maximum output current(DCA) :
2500
Maxiumum coil power(KW) :
150
Insulation method :
E
Cooling method :
water cooling
Magnetic lumen diameter(mm） :
1000
Yield(m³/h） :
50-100
Dimension（mm） :
3052*2185*2814
Weight（KG) :
26000
Description

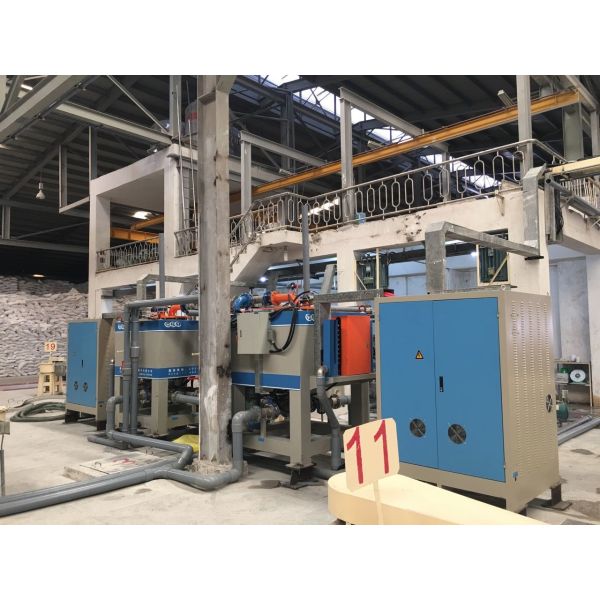

Water-cooling automatic electromagnetic slurry separator equipment
Foshan Wandaye Machinery Company Limited is a national high-tech enterprise, owns a number of invention patents, with research and development production, major products are: magnetic separator for non-metallic mineral raw materials, ceramic glaze, metal, plastics, food and all kinds of industries. The main products are: electromagnetic Slurry separator, electromagnetic powder machine, permanent magnetic separator vertical ring electromagnetic separator, vertical ring permanent magnetic separator and different sizes of magnetic plates, magnetic rod, drawer type magnetic separator etc; Our company possesses professional technical team and sophisticated laboratory, can be customized for magnetic separator. Wandaye Limited since 2014 get involved in domestic and international mineral processing engineering technology and the fields of whole line project design etc.


Water Cooling Slurry Equipment Fully Automated Operation efficent low energy intelligence kaolin feldspar ceramic slurry


Features:

  • Durable
  • Easy to operate
  • High performance
  • Touch Screen Interface
  • Easy-to-Use, Fully Automated Operation

Technology parameter

Model WS500-V WS750-V WS1000-V WY750-V WY1000-VB WY1200-V WY1500-V
Magnetic field strength(T) 2.0 2.5 2.5 2.0 2.0 2.5 3.0
Input voltage(ACV) 380 380 380 380 380 380 380
Maximum coil power(KW) 75 103 150 82 120 150 180
Insulation method E E E E E E E
Cooling method water cooling water cooling water cooling oil cooling oil cooling oil cooling oil cooling
Magnetic lumen diameter(mm) 500 750 1000 750 1000 1200 1500
Pipe size(mm) 100 150 200 150 200 250 300
yield(m³/h) 20-45 30-65 50-100 30-65 50-100 50-150 70-180
dimension(mm) 2328*1745*2642 2659*1978*2518 3052*2185*2814 2958*2294*3091 3503*2658*3392 3950*2926*3746 4349*3180*3706
Main machine weight 14000 16600 26000 16000 28000 53000 65000
(KG)
Usage Applicable for 40-400 mesh feedstock of iron elimination




Application scope

Non-metallic mineral: It is used for purifying the non-metallic mineral such as quartz, feldspar and kaolin.
Ferrous metals mineral: hematite, martite, limonite, siderite, chromite, polianite.
Non-ferrous metals mineral: used for separating wolframite from pyrope
Rare earth ore: recycle tantalum-niobium ores and monazite.
other industries: iron ore, effluent of power station disposal, disposal of contaminated chemical raw material.
