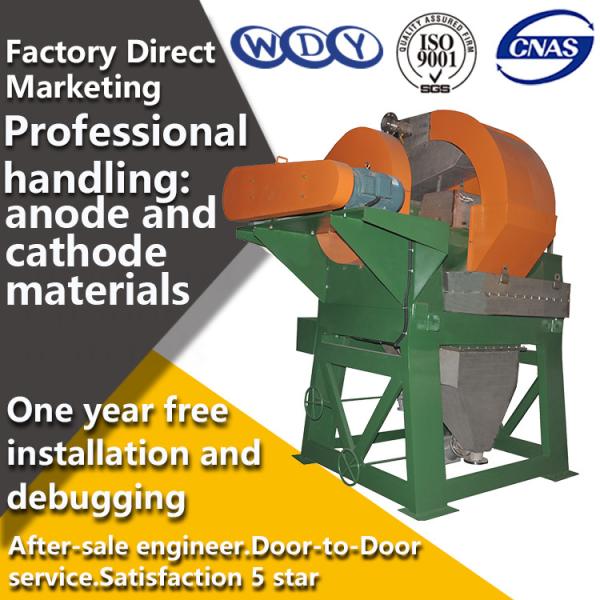

Laboratory Scale High Gradient Magnetic Separator WD1500 50-100m3
Laboratory Scale High Gradient Magnetic Separator WD1500 50-100m3
Specifications
Brand Name :
WANDAYE
Model Number :
WD1500
Certification :
ISO9001:2008
Place of Origin :
FOSHAN,CHINA
MOQ :
1set
Price :
Negotiable
Delivery Time :
Within 10 days after the advance payment is made
Packaging Details :
Film and wooden case
Swivel outer diameter（mm） :
1500
Ore size（mm）， （-200 %） :
-1.2（30-100）
Ore density（%） :
10-40
Ore pulp transit capability（m³/h） :
50-100
Dry ore throughput（t/h） :
20-30
Rated background magnetic field（T） :
1.0
Rated energizing current （A） :
950
Rated energizing voltage（V） :
29
Rated exciting power（Kw） :
27
Rotaing pulsation power（Kw） :
4
Pulse stroke（mm） :
0-30
Pulse speed （times/minute） :
0-300
Water supplied speed（Mpa） :
0.2-0.3
Water consumption（m³/h） :
60-90
Cooling water processing（m³/h） :
3-4
weight of biggest parts（T） :
5
name :
metal separator machines
Description

Laboratory Scale High Gradient Magnetic Separator WD1500 50-100m3

High gradient magnetic separator is a new product developed independently . It combines the characteristics of international advanced high intensity magnetic separators, which is so far the high intensity magnetic separator of best performance and most advanced technology. This product utilizes vertical ring rotation, pulsating beneficiation and high frequency vibrator, and it has no magnetic medium jam problem in flat ring high intensity magnetic separator and flat ring high gradient magnetic separator.
It has the advantages of large beneficiation ratio, high security and convenient operation etc. This product realizes both high beneficiation ratio and high recycle ratio in separating weak magnetic minerals.

Application field

1. Updating Ferrous Metals: Martite, Hematite, Siderite, Chromite, Ilmenite, Manganese, Etc.
2. Separating Non-Ferrous Metals: Wolframite and Quartz, Pyrrhotite and Cassiterite, Wolframite and Cassiterite, Limonite Purifying, Scheelite, Wolframite and Garnet, Etc.
3. Recovering Rare Earth: Tantalum and Niobium, Lepidomelane, Monazite, Etc.
4. Brightening Non Metals: Quartz, Feldspar And Kaolin for Ceramics, Sillimanite, Cassiterite, Andalusite, Kyanite for Refractory, and Separating Impurities From Hornblende, Mica, Tourmaline, Garnet, Etc,

Technical features

1. Vertical Ring Rotation & Pulsating Beneficiation
2. High Frequency Vibration Mechanism
3. Wide Range of Feed Particle Size
4. Multi-Gradient Matrixes & Liquid Level Control System.
5. These technologies improve the grade of magnetic concentrate and recovery.
6. Frequency Conversion Step-less Adjustment for Rotary Speed & Vibrating Frequency.
7. No Stepper Phenomenon of Rotary Rings

Technical data

Model

WD-1250

WD-1500

WD-1750

WD-2000

Swivel outer diameter(mm)

1250

1500

1750

2000

Ore size(mm),

(-200 mesh %)

-1.2(30-100)

-1.2(30-100)

-1.2(30-100)

-1.2(30-100)

Ore

density(%)

10-40

10-40

10-40

10-40

Ore pulp transit capability(m³/h)

20-50

50-100

75-150

100-200

Dry ore throughput(t/h)

10-18

20-30

30-50

50-80

Rated background magnetic field(T)

1.0

1.0

1.0

1.0

Rated energizing current(A)

850

950

1200

1200

Rated energizing voltage(V)

23

29

31

35

Rated exciting power(Kw)

19

27

37

40

Swivel rotating power(Kw)

1.5

3

5

5.5

Rotating pulsation power(Kw)

2.2

4

4

7.5

Pulse

stroke(mm)

0-20

0-30

0-30

0-30

Pulse speed(times/min)

0-300

0-300

0-300

0-300

Water consumption(Mpa)

0.15-0.3

0.2-0.3

0.2-0.3

0.2-0.3

Water consumption(m³/h)

30-45

60-90

80-120

100-150

Cooling water processing(m³/h)

2.5-3

3-4

4-5

5-6

Weight of biggest parts(T)

4

5

11

14

dimension(length x width x height,mm)

3200x2340x2700

2950x1950x3150

3200x2600x3700

3500x3050x4050
