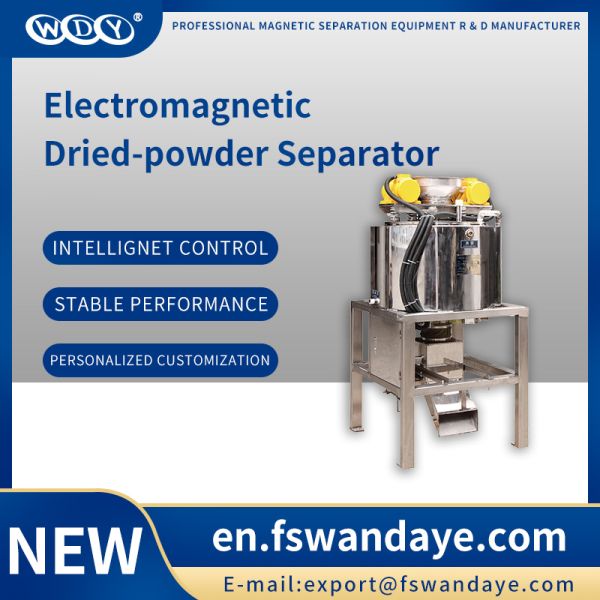

60 - 300 Mesh Magnetic Separator , Electromagnetic Equipment medicine plastic
60 - 300 Mesh Magnetic Separator , Electromagnetic Equipment medicine plastic
Specifications
Brand Name :
WDY
Model Number :
WG160-B-V-3
Certification :
ISO9001：2008
Place of Origin :
FOSHAN,GUANGDONG,CHINA
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Delivery Time :
Within 25days after the advance payment is made
Packaging Details :
Film And Wooden Case
Supply Ability :
50 SETS PER MONTH
Model :
WG160-B-V-3
Magnetic field strength（T） :
2
Inputvoltage（ACV） :
380
Maximum output current（DCA） :
15
Maximum coil power（KW） :
3
Insulation method :
E
Cooling method :
water and oil double cooling
Magnetic lumen diameter（mm） :
160
yield（T） :
0.5-1.5
dimension（mm） :
700*700*1450
Main machine weight （KG） :
450
Usage :
Applicable for 60-300 mesh feedstock of iron elimination
Description

60-300 Mesh Magnetic Separator ,Electromagnetic Equipment

Magnetic separators are designed to separate ferrous materials from non-magnetic materials. The ferrous materials are usually impurities of varying particle size (from the micron level upto large pieces of tramp iron) and their extraction either improves the purity level of a bulk product or protects sensitive machinery (crushers, blades et.c) Separation techniques are also used in metal recycling to sort ferrous from non-ferrous material and for conveying cans in canning factories.

  • Designed for maximum field strength and depth of magnetic field.
  • Extremely robust structure
  • Custom made units available upon request.
  • Powerful, Oil-cooled electromagnet for 24hours continuous operation
  • All Unit feature Class “H” insulation levels.
  • For removing ferrous from shredded, crushed materials, industrial wastes, mined products, construction & demolition wastes, recyclables, electronic scraps, wood chips, glass, mould sand, etc
  • Automatically removes ferrous from conveyed products.
  • Comes complete with a Control panel.
  • Extreme pulling power for fast moving processing materials
  • Choice mounting / suspension styles

60 - 300 Mesh Magnetic Separator , Electromagnetic Equipment medicine plastic

Technical parameter

Model WG160B-V-3 WG220B-V-3 WG300-V-7 WG220B-V-11 WG430-V-11 WG220-V-15 WG600-V-20
Magnetic field strength(t) 2 2 3 3 3 5 3
Input voltage(VAC) 380 220 380 380 380 380 380
Maximun output current(A) 15 7 20 20 20 30 40
Maximum coil power(KW) 3 3 7 11 11 15 20
Insulation category E E E E E E E
Cooling method water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling
Magnetic lumen diameter(mm) 160 220 300 220 430 220 600
Yield(m3/h) 0.5-1.5 43833 1.5-4 0.5-3 1.5-6 1-3 3-8
Dimension(mm) 700*700 860*860 1320*1320 1300*110 1500*1500 1350*1100 1500*1500
*1450 *1540 *2500 *1800 *2500 *1850 *2000
Main machine weight(kg) 450 490 1020 1130 1210 1500 2000
Usage 60-300 mesh feedstock of iron elimination
