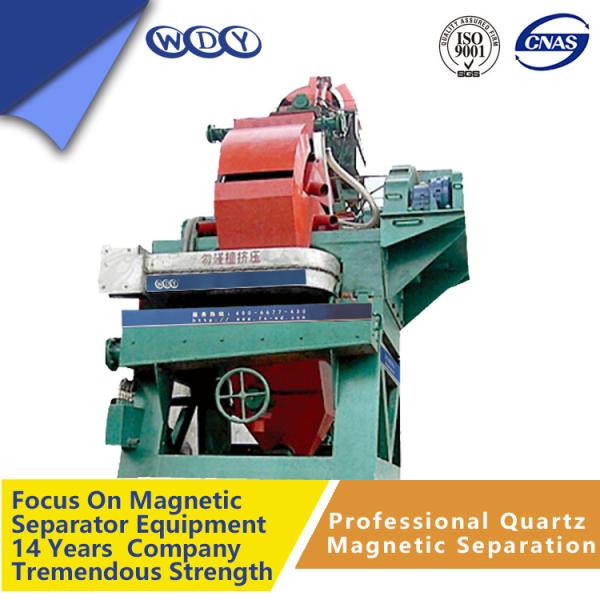

Double Vertical Ring High Gradient Magnetic Separator WD2000 Energy Saving
Double Vertical Ring High Gradient Magnetic Separator WD2000 Energy Saving
Specifications
Brand Name :
WANDAYE
Model Number :
WD2000
Certification :
ISO9001:2008
Place of Origin :
FOSHAN,GUANGDONG,CHINA
MOQ :
1SET
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000 SETS
Delivery Time :
Within 10 days after the advance payment is made
Packaging Details :
Film And Wooden Case
Ore density（%） :
10-40
Ore pulp transit capability（m³/h） :
100-200
Rated background magnetic field（T） :
1.0
Rated energizing current （A） :
1200
Rated energizing voltage（V） :
35
Rated exciting power（Kw） :
40
Rotaing pulsation power（Kw） :
7.5
Pulse stroke（mm） :
0-30
Pulse speed （times/minute） :
0-300
Water supplied speed（Mpa） :
0.2-0.3
Water consumption（m³/h） :
100-150
Cooling water processing（m³/h） :
5-6
weight of biggest parts（T） :
14
dimension（length x width x height，mm） :
4200x3550x4200
Description

Double Vertical Ring High Gradient Magnetic Separator WD2000 Energy Saving

Double-Vertical Rings High Gradient Electric Magnetic Separator WD2000 is ISO and CE certified machine for minerals process. Featured with high performance, low cost and energy saving, it is an ideal magnetic separation machine.

Scope of Application

1. Ferrous minerals: Upgrade hematite, limonite, siderite, chromite, ilmenite, manganese, etc.

2. Recycle iron from weak magnetic tailings, bauxite residues after Bayer process, waste water of steel or power plant, etc.

Why use WDY separator to upgrade hematite, ilmenite, limonite, etc?

1. Feebly magnetic minerals, such as hematite and ilmenite, are low magnetism, which are difficcult to be upgraded by permanent magnetic separator with low magnetic intensity. WDYseparator is high intensity, up to 12000 gauss. In addition, the matrix structure generates high gradient (Max. 30000 gauss), making higher capture of mineral particles.

2. Minerals with different magnetism embedded together, such as hematite and limonite. To extract useful minerals, the mineral ores shall be crushed and ground to fine powders. That makes trouble for low intensity separator or dry magnetic separator to capturer the useful magnetic minerals. DLS separator is wet magnetic separation, and it is suitable for fine powders. With adjustable intensity, the separator is applicable to various minerals with different magnetism.

3. Magnetic impurities in feldspar, quartz, or silica sands usually are feebly magnetic minerals, such as ilmenite, toumaline, chlorite, etc. Very small quantity of these materials will impact the quality of feldspar or quartz a lot. WDY separator will minimize the impurities and improve the value of the useful minerals.

4. Besides, WDYseparator features high capacity, easy operation and low maintenance.

Technical parameter

Model

WD-1250

WD-1500

WD-1750

WD-2000

Swivel outer diameter(mm)

1250

1500

1750

2000

Ore size(mm),

(-200 mesh %)

-1.2(30-100)

-1.2(30-100)

-1.2(30-100)

-1.2(30-100)

Ore

density(%)

10-40

10-40

10-40

10-40

Ore pulp transit capability(m³/h)

20-50

50-100

75-150

100-200

Dry ore throughput(t/h)

10-18

20-30

30-50

50-80

Rated background magnetic field(T)

1.0

1.0

1.0

1.0

Rated energizing current(A)

850

950

1200

1200

Rated energizing voltage(V)

23

29

31

35

Rated exciting power(Kw)

19

27

37

40

Swivel rotating power(Kw)

1.5

3

4

5.5

Rotating pulsation power(Kw)

2.2

4

4

7.5

Pulse

stroke(mm)

0-20

0-30

0-30

0-30

Pulse speed (times/min)

0-300

0-300

0-300

0-300

Water consumption(Mpa)

0.15-0.3

0.2-0.3

0.2-0.3

0.2-0.3

Water consumption(m³/h)

30-45

60-90

80-120

100-150

Cooling water processing(m³/h)

2.5-3

3-4

4-5

5-6

Weight of biggest parts(T)

4

5

11

14

dimension(length x width x height,mm)

3200x2340x2700

3600x2900x3200

3900x3300x3800

4200x3550x4200

Double Vertical Ring High Gradient Magnetic Separator WD2000 Energy Saving
