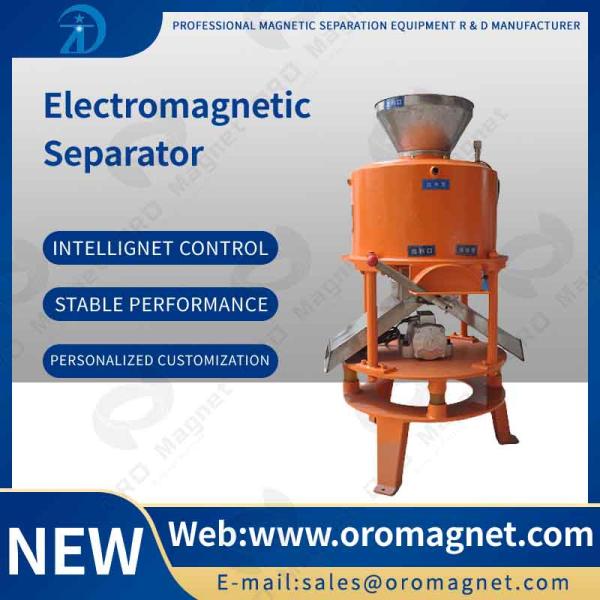

2T wet high intensity magnetic separator / Electromagnetic Powder Separators
2T wet high intensity magnetic separator / Electromagnetic Powder Separators
Specifications
Brand Name :
WDY
Model Number :
WD-3A220S
Certification :
ISO9001：2008
Place of Origin :
FOSHAN,CHINA
MOQ :
1set
Price :
Negotiable
Delivery Time :
Within 10 days after the advance payment is made
Packaging Details :
Film and wooden case
Model :
3A220
Magnetic field strength（T） :
2
Inputvoltage（ACV） :
220
Maximum output current（DCA） :
7
Maximum coil power（KW） :
3
Insulation method :
E
Cooling method :
water and oil double cooling
Magnetic lumen diameter（mm） :
220
yield（T） :
1-3
dimension（mm） :
860*860* 1540
Main machine weight （KG） :
490
Usage :
Applicable for 60-300 mesh feedstock of iron elimination
Description

2T High - Intensity Magnetic Separation Equipment / Electromagnetic Powder Separators

＜Usage＞

1. Model 3A220S is designed to remove fine iron powders from dry powdered materials
to get the best results in food, chemical, plastic, ceramic, medical industries and many other.
2. Specific product is designed only to be used for secondary cell battery to handle cathode material and anode material.
Electrically conductive materials like lead, copper, zinc, tin, bronze are not used for this case.

＜Features＞

1. Electro-magnetized screens capture fine iron particles in microns.
2. Vibration motor ensures effective flow to the filter screen.
3. Limited amount of roll-in material.

＜Specifications＞

1. Standard high magnetic force (20000 gauss)
2. Additional Maghammer helps better flow rate.
3. Screen pitch can be selected for best results.
4. Controller included

＜Technical parameter＞

Model 3A160 3A220 7A300

11A220

 11A430 15A220 20A600
Magnetic field strength(t) 2 2 3 3 3 5 3
Input voltage(VAC) 380 220 380 380 380 380 380
Maximun output current(A) 15 7 20 20 20 30 40
Maximum coil power(KW) 3 3 7 11 11 15 20
Insulation category E E E E E E E
Cooling method water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling
Magnetic lumen diameter(mm) 160 220 300 220 430 220 600
Yield(m3/h) 0.5-1.5 1-3 1.5-4 0.5-3 1.5-6 1-3 3-8
Dimension(mm)

700*700

*1450

860*860

*1540

1320*1320

*2500

1300*110

*1800

1500*1500

*2500

1350*1100

*1850

1500*1500

*2000
Main machine weight(kg) 450 490 1020 1130 1210 1500 2000
Usage 60-300 mesh feedstock of iron elimination
