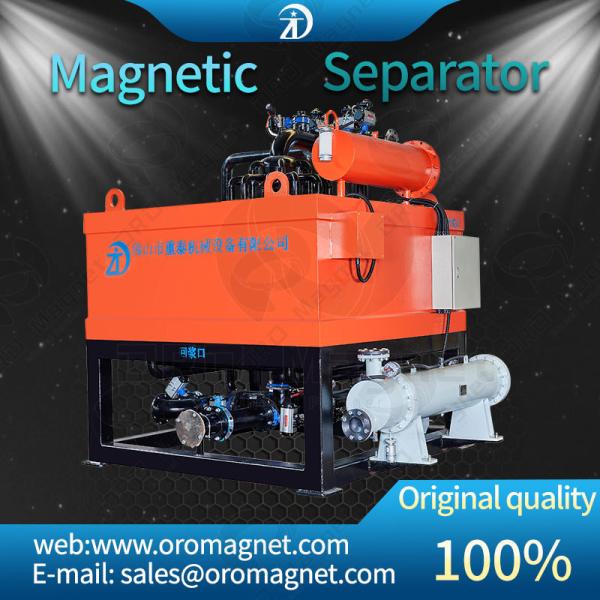

high Efficient Dried Powder Magnetic Separator Machine quartz feldspar chemical medicine food powder
high Efficient Dried Powder Magnetic Separator Machine quartz feldspar chemical medicine food powder
high Efficient Dried Powder Magnetic Separator Machine quartz feldspar chemical medicine food powder
high Efficient Dried Powder Magnetic Separator Machine quartz feldspar chemical medicine food powder
Specifications
Brand Name :
ZT
Model Number :
WG430-V-50
Certification :
ISO9001：2008
Place of Origin :
FOSHAN.CHINA
MOQ :
1 set
Price :
Negotiable
Delivery Time :
Within 30 days after the advance payment is made
Packaging Details :
Film And Wooden Case
Supply Ability :
30 sets per month
Model :
WG430-V-50
Magnetic field strength（T） :
3.5
Inputvoltage（ACV） :
380
Maximum output current（DCA） :
100
Maximum coil power（KW） :
50
Insulation method :
E
Cooling method :
water and oil double cooling
Magnetic lumen diameter（mm） :
430
yield（T） :
4-6
dimension（mm） :
2414*2100*2400
Main machine weight （KG） :
11500
Usage :
Applicable for 60-300 mesh feedstock of iron elimination
Description


Magnetic Separator Machine Automatic Eletromagnetic Separator for Dried-powder 3T



Product characteristic
1. Water and oil dual cooling, stable performance.

2.Intelligent control, there is no need to manual operation

3.New magnetic medium material, better separation of iron and titanium impurities.

4.The strength of the magnetic field can be adjusted according to the material.


Operation process

1. Feed the dry powder from the hopper, meanwhile make the separator state at the magnetizing and run a vibrator.

2. After a period ,stop feeding, cut off the magnetic device, run the other vibrator(keep the two vibrator running), poke the raffle of drain of material funnel into the iron discharge.

3. Then discharge the magnetic material absorbed on the magnetic media relying on the vibrating force.


Application scope

Electromagnetic dried-powder separators are applied in process the fine mineral, the magnetic fine ferrous mineral particle such as hematite, martite, limonite, chromite, polianite; and also fine nonferrous metals mineral particle, for example wolframite; fine rare earth mineral particle, for example eremite; and fine nonmetallic mineral particle such as feldspar, quartz, kaolin.
Electromagnetic dried-powder separators are suitable for using at the drought and water shortage area.


Technical parameter

Model WG300-V-25 WG430-V-25 WG430-V-50
Magnetic field strength(t) 2.5 2.5 3.5
Input voltage(VAC) 380 380 380
Maximun output current(A) 47 47 100
Maximum coil power(KW) 25 25 50
Insulation category E E E
Cooling method water and oil cooling water and oil cooling water and oil cooling
Magnetic lumen diameter(mm) 300 430 430
Yield(m3/h) 1-2 2-3 4-6
Dimension(mm) 1600*1500 1750*1650 2414*2100
*2075 *2075 *2400
Main machine weight(kg) 2100 2200 11500
Usage 60-300 mesh feedstock of iron elimination

Client case

high Efficient Dried Powder Magnetic Separator Machine quartz feldspar chemical medicine food powder

Finished products after our magnetic machine The magnetized tailing be detached by our machine

high Efficient Dried Powder Magnetic Separator Machine quartz feldspar chemical medicine food powderhigh Efficient Dried Powder Magnetic Separator Machine quartz feldspar chemical medicine food powder

high Efficient Dried Powder Magnetic Separator Machine quartz feldspar chemical medicine food powder
