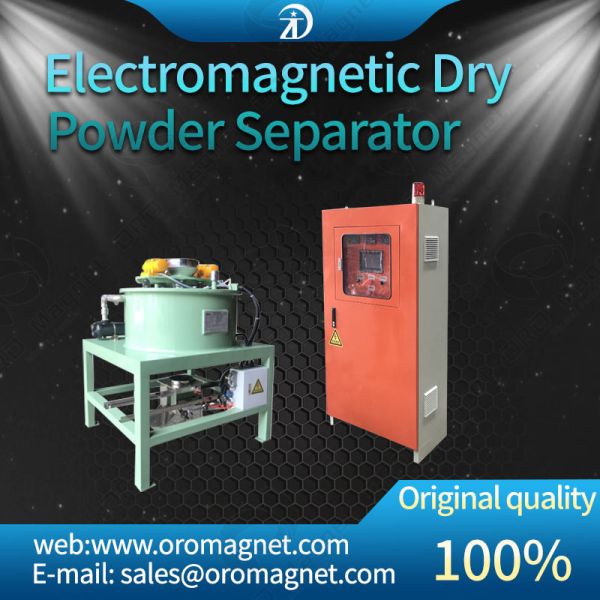

Intelligent Control Dried Powder Separator For Non Metallic Mineral Industries
Intelligent Control Dried Powder Separator For Non Metallic Mineral Industries
Intelligent Control Dried Powder Separator For Non Metallic Mineral Industries
Intelligent Control Dried Powder Separator For Non Metallic Mineral Industries
Intelligent Control Dried Powder Separator For Non Metallic Mineral Industries
Intelligent Control Dried Powder Separator For Non Metallic Mineral Industries
Specifications
Brand Name :
ZT
Model Number :
WG430-V-11
Certification :
ISO9001:2008
Place of Origin :
FOSHAN.CHINA
MOQ :
1set
Price :
Negotiable
Supply Ability :
50 SETS PER MONTH
Delivery Time :
Within 35 days after the advance payment is made
Packaging Details :
Film and wooden case
Magnetic field strength（T） :
3
Input voltage（ACV） :
380
Maximum output current :
20
Maximum coil power（KW） :
11
Insulation method :
E
Cooling method :
water and oil double cooling
Magnetic lumen diameter（mm） :
430
yield（T） :
1.5-6
dimension（mm） :
1367*1367*2017
Main machine weight （KG） :
1210
Description
Intelligent Control Dried Powder Separator For Non Metallic Mineral Industries
High Efficient dried-powder Separator with oil cooling, intelligent control, for chemical non-metallic mineral rubber​


Applications:

  • Non-metallic mineral Industries
  • Abrasive Industries
  • Chemical Industries
  • Paper and Pulp Industries
  • Ceramic Industries
  • Rubber Industries
  • Petroleum Industries
  • Animal Feed Industries
  • Recycling Industries
  • Mineral Processing
Features:
  • High Efficient Electromagnetic Separator have a deep penetrating magnetic field.
  • Energy Saving Electromagnetic Separator needs low maintenance and are easy to install and operate.
  • EP Electromagnetic Separator can function smoothly even in the hazardous environments.
  • Intelligent control No manual cleaning is required and reduces downtime for the end user.

Technical parameter

Model WG160B-V-3 WG220-V-25 WG300-V-7 WG220B-V-11 WG430-V-11 WG230-V-15 WG600-V-20
Magnetic field strength(t) 2 3.5 3 3 3 3 3
Input voltage(VAC) 380 220 380 380 380 380 380
Maximun output current(A) 15 47 20 20 20 30 40
Maximum coil power(KW) 3 25 7 11 11 15 20
Insulation category E E E E E E E
Cooling method water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling
Magnetic lumen diameter(mm) 160 220 300 220 430 230 600
Yield(m3/h) 0.5-1.5 0.5-3 1.5-4 0.5-2 1.5-6 1-3 3-8
Dimension(mm) 1000*860 2046*1980 1100*1100 1260*1260 1367*1367 1315*1100 1500*1500
*1718 *1977 *1937 *2017 *2017 *1856 *2500
Main machine weight(kg) 450 2080 1020 1130 1210 1500 2000
Usage 60-300 mesh feedstock of iron elimination


Case's pictures

Intelligent Control Dried Powder Separator For Non Metallic Mineral IndustriesIntelligent Control Dried Powder Separator For Non Metallic Mineral Industries

Intelligent Control Dried Powder Separator For Non Metallic Mineral Industries
