Medical Rectangle Neodymium Magnets N52 High Temperature Resistant
Medical Rectangle Neodymium Magnets N52 High Temperature Resistant
Medical Rectangle Neodymium Magnets N52 High Temperature Resistant
Medical Rectangle Neodymium Magnets N52 High Temperature Resistant
Medical Rectangle Neodymium Magnets N52 High Temperature Resistant
Medical Rectangle Neodymium Magnets N52 High Temperature Resistant
Medical Rectangle Neodymium Magnets N52 High Temperature Resistant
Medical Rectangle Neodymium Magnets N52 High Temperature Resistant
Specifications
Brand Name :
STAR
Model Number :
M20-N52
Certification :
ISO9001, RoHS, MSDS, Patent certificate, Quality Certificate
Place of Origin :
China
MOQ :
1
Price :
$0.01~$496.00
Payment Terms :
T/T, Western Union, MoneyGram, Paypal, L/C, WECHAT
Supply Ability :
1000 tons per month
Delivery Time :
5~35 days as per customer's project and quantity
Packaging Details :
Non-magnetism packing with Iron and foam protection, Export carton and pallet
Materials :
Nd, Fe, B, Cu, and others
Grade :
N52
Magnetization direction :
Axially magnetized direction
Application :
For medical machines
Magnet technology :
Our R&D engineers welcome you to discuss any time
Quality assurance :
Free samples testing, Demagnetization curve report
Description

N42 Super Neodymium Cylinder neodymium Magnet of D10x30mm for medical facility

Performance

Disc, Cylinder, Block, Ring, Countersunk, Segment, Trapezoid and Irregular shapes and more.

Customized shapes are available

Grade introduction:

Grade Remanece Coercive Force (Hcb) Intrinsic
Coercivity		 Max Energy Curie Coefficient TW
Tempreture
Br Hcj (BH)max TC
T KGs KA/m KOe KA/m Koe KJ/m3 MGOe ℃ ℃
N33 1.13-1.18 11.3-11.8 ≥836 ≥10.5 ≥955 ≥12 247-263 31-33 310 ≤80
N35 1.18-1.23 11.8-12.3 ≥868 ≥10.9 ≥955 ≥12 263-287 33-36 310 ≤80
N38 1.22-1.28 12.2-12.8 ≥899 ≥11.3 ≥955 ≥12 287-310 36-39 310 ≤80
N40 1.26-1.31 12.6-13.1 ≥923 ≥11.6 ≥955 ≥12 302-326 38-41 310 ≤80
N42 1.28-1.34 12.8-13.4 ≥923 ≥11.6 ≥955 ≥12 318-342 40-43 310 ≤80
N45 1.33-1.38 13.3-13.8 ≥923 ≥11.6 ≥955 ≥12 342-366 43-46 310 ≤80
N48 1.38-1.42 13.8-14.2 ≥923 ≥11.6 ≥955 ≥12 358-390 45-48 310 ≤80
N50 1.40-1.45 14.0-14.5 ≥836 ≥10.5 ≥876 ≥11 382-406 48-51 310 ≤80
N52 1.43-1.48 14.3-14.8 ≥796 ≥10.0 ≥876 ≥11 398-422 50-53 310 ≤80
N35M 1.17-1.22 11.7-12.2 ≥868 ≥10.9 ≥1114 ≥14 263-287 33-36 320 ≤100
N38M 1.22-1.25 12.2-12.5 ≥899 ≥11.3 ≥1114 ≥14 287-310 36-39 320 ≤100
N40M 1.25-1.28 12.5-12.8 ≥923 ≥11.6 ≥1114 ≥14 302-326 38-41 320 ≤100
N42M 1.28-1.32 12.8-13.2 ≥955 ≥12.0 ≥1114 ≥14 318-342 40-43 320 ≤100
N45M 1.32-1.38 13.2-13.8 ≥995 ≥12.5 ≥1114 ≥14 342-366 43-46 320 ≤100
N48M 1.36-1.43 13.6-14.3 ≥1027 ≥12.9 ≥1114 ≥14 366-390 46-49 320 ≤100
N50M 1.40-1.45 14.0-14.5 ≥1033 ≥13.0 ≥1114 ≥14 382-406 48-51 320 ≤100
N33H 1.14-1.19 11.4-11.9 ≥836 ≥10.5 ≥1353 ≥17 247-270 31-34 330 ≤120
N35H 1.17-1.22 11.7-12.2 ≥868 ≥10.9 ≥1353 ≥17 263-287 33-36 330 ≤120
N38H 1.22-1.25 12.2-12.5 ≥899 ≥11.3 ≥1353 ≥17 287-310 36-39 330 ≤120
N40H 1.25-1.28 12.5-12.8 ≥923 ≥11.6 ≥1353 ≥17 302-326 38-41 330 ≤120
N42H 1.28-1.32 12.8-13.2 ≥955 ≥12.0 ≥1353 ≥17 318-342 40-43 330 ≤120
N45H 1.30-1.36 13.0-13.6 ≥963 ≥12.1 ≥1353 ≥17 326-358 43-46 330 ≤120
N48H 1.37-1.43 13.7-14.3 ≥995 ≥12.5 ≥1353 ≥17 366-390 46-49 330 ≤120
N30SH 1.08-1.13 10.8-11.3 ≥810 ≥10.2 ≥1592 ≥20 223-247 28-31 340 ≤150
N33SH 1.13-1.17 11.3-11.7 ≥844 ≥10.6 ≥1592 ≥20 247-271 31-34 340 ≤150
N35SH 1.17-1.22 11.7-12.2 ≥876 ≥11.0 ≥1592 ≥20 263-287 33-36 340 ≤150
N38SH 1.22-1.25 12.2-12.5 ≥907 ≥11.4 ≥1592 ≥20 287-310 36-39 340 ≤150
N40SH 1.25-1.28 12.5-12.8 ≥939 ≥11.8 ≥1592 ≥20 302-326 38-41 340 ≤150
N42SH 1.28-1.32 12.8-13.2 ≥987 ≥12.4 ≥1592 ≥20 318-342 40-43 340 ≤150
N45SH 1.32-1.38 13.2-13.8 ≥1003 ≥12.6 ≥1592 ≥20 342-366 43-46 340 ≤150
N28UH 1.02-1.08 10.2-10.8 ≥764 ≥9.60 ≥1990 ≥25 207-231 26-29 350 ≤180
N30UH 1.08-1.13 10.8-11.3 ≥812 ≥10.2 ≥1990 ≥25 223-247 28-31 350 ≤180
N33UH 1.13-1.17 11.3-11.7 ≥852 ≥10.7 ≥1990 ≥25 247-271 31-34 350 ≤180
N35UH 1.18-1.22 11.8-12.2 ≥860 ≥10.8 ≥1990 ≥25 263-287 33-36 350 ≤180
N38UH 1.22-1.25 12.2-12.5 ≥876 ≥11.0 ≥1990 ≥25 287-310 36-39 350 ≤180
N40UH 1.25-1.28 12.5-12.8 ≥899 ≥11.3 ≥1990 ≥25 302-326 38-41 350 ≤180
N28EH 1.04-1.09 10.4-10.9 ≥780 ≥9.80 ≥2388 ≥30 207-231 26-29 380 ≤200
N30EH 1.08-1.13 10.8-11.3 ≥812 ≥10.2 ≥2388 ≥30 223-247 28-31 380 ≤200
N33EH 1.13-1.17 11.3-11.7 ≥836 ≥10.5 ≥2388 ≥30 247-271 31-34 380 ≤200
N35EH 1.17-1.22 11.7-12.2 ≥876 ≥11.0 ≥2388 ≥30 263-287 33-36 380 ≤200
N38EH 1.22-1.29 12.2-12.9 ≥915 ≥11.5 ≥2388 ≥30 287-318 36-40 380 ≤200
N30AH 1.08-1.15 10.8-11.5 ≥804 ≥10.1 ≥2786 ≥35 223-255 28-32 380 ≤230
N33AH 1.14-1.21 11.4-12.1 ≥852 ≥10.7 ≥2786 ≥35 247-279 31-35 380 ≤230

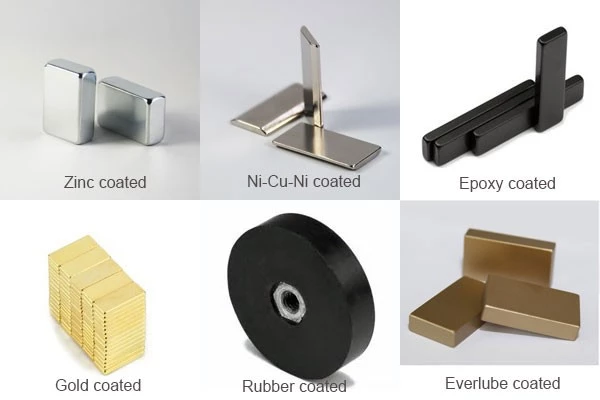

NdFeB Surface coating: Zinc plated Ni-Cu-Ni plated Silver plated Nickel plated Aurum plated Epoxy coated Phosphatsing Parylene other coating

Coating / Plating​

Medical Rectangle Neodymium Magnets N52 High Temperature Resistant
