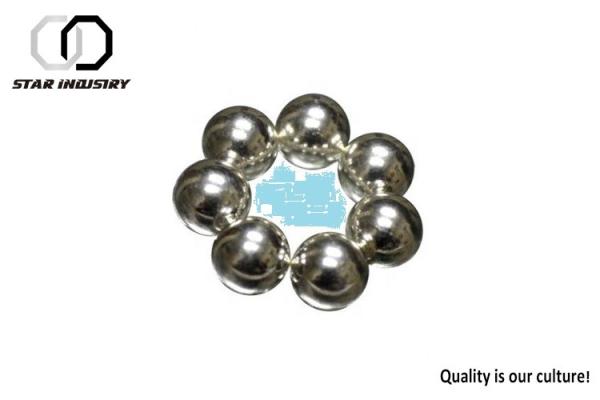

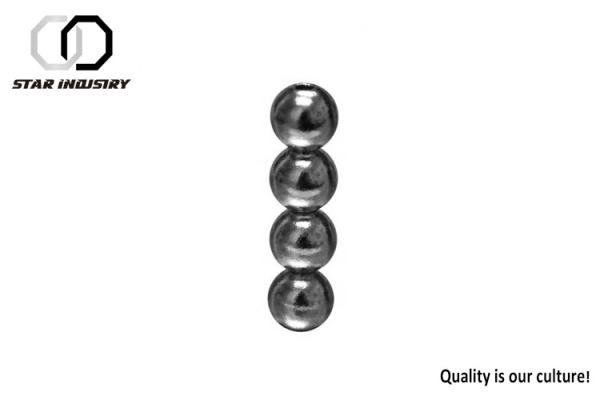

Permanent Magnetic Sphere Balls , N52 Sphere Magnets 1 Inch Ni Cu Ni Plated
Permanent Magnetic Sphere Balls , N52 Sphere Magnets 1 Inch Ni Cu Ni Plated
Permanent Magnetic Sphere Balls , N52 Sphere Magnets 1 Inch Ni Cu Ni Plated
Permanent Magnetic Sphere Balls , N52 Sphere Magnets 1 Inch Ni Cu Ni Plated
Permanent Magnetic Sphere Balls , N52 Sphere Magnets 1 Inch Ni Cu Ni Plated
Permanent Magnetic Sphere Balls , N52 Sphere Magnets 1 Inch Ni Cu Ni Plated
Specifications
Brand Name :
STAR
Model Number :
Cm2-N52
Certification :
MSDS, Patent certificate, RoHS, Quality Certificate, ISO9001
Place of Origin :
China
MOQ :
According to Sphere diameter, plating and packaging
Price :
$0.015~$20.00
Payment Terms :
T/T, Western Union, MoneyGram, Paypal, L/C, WECHAT
Supply Ability :
100 tons per month
Delivery Time :
5 ~ 25 days as per quantity
Packaging Details :
Non-magnetism packing with Iron and foam protection, Export carton and pallet
Materials :
Neodymium Iron Boron
Hot Grade :
N-33, N-35, N-52
Surface finish :
Gold, Zn, Ni, blue, green, Custom color
Tolerance :
0.01mm ~ 0.05mm
Diameter :
25.4mm, 1''
Description

2020 new Permanent sphere Shaped Magnet N52 , 1'' ndfeb magnetic balls

Three Absolute Advantages will help us give clients worry-free services, grow together and together we are both stronger:

1. Whatever you are looking for a common ring / square / disc / arc magnets,

or comprehensive magnetic solutionsin technology, assemblies as well as magnetic products,

Star Magnet will always be ready to help.

2. Whatever you think, we can make it for you, Sphere production capacity as following:

Sphere diameter can be as per customer request,

Min Ø1mm magnet balls, Ø2mm magnetic ball,

always 3mm sphere, 4mm magnet sphere,

5mm ndfeb balls, 8mm, 10mm neodymium balls,

12.7mm(1/2'') magnet sphere, 15.9mm magnetic sphere,

20mm customized neo sphere ball, 25.4mm magnet spheres,

Max 50.8mm diameter magnetic spheres we produce.

3. Wheretever you are, more than 500 million magnets delivered to America, Euro, Australia,

Asia and Africa, Russia et countries fast and safety.

Grade Remanence Coercive Force Hcb Intrinsic Coercivity Max Energy

Curie

Temp

Coefficient

TW
Br Hcj (BH)max TC
T KGs KA/m KOe KA/m Koe KJ/m3 MGOe ℃ ℃
N33 1.13-1.18 11.3-11.8 ≥836 ≥10.5 ≥955 ≥12 247-263 31-33 310 ≤80
N35 1.18-1.23 11.8-12.3 ≥868 ≥10.9 ≥955 ≥12 263-287 33-36 310 ≤80
N38 1.22-1.28 12.2-12.8 ≥899 ≥11.3 ≥955 ≥12 287-310 36-39 310 ≤80
N40 1.26-1.31 12.6-13.1 ≥923 ≥11.6 ≥955 ≥12 302-326 38-41 310 ≤80
N42 1.28-1.34 12.8-13.4 ≥923 ≥11.6 ≥955 ≥12 318-342 40-43 310 ≤80
N45 1.33-1.38 13.3-13.8 ≥923 ≥11.6 ≥955 ≥12 342-366 43-46 310 ≤80
N48 1.38-1.42 13.8-14.2 ≥923 ≥11.6 ≥955 ≥12 358-390 45-48 310 ≤80
N50 1.40-1.45 14.0-14.5 ≥836 ≥10.5 ≥876 ≥11 382-406 48-51 310 ≤80
N52 1.43-1.48 14.3-14.8 ≥796 ≥10.0 ≥876 ≥11 398-422 50-53 310 ≤80
N35M 1.17-1.22 11.7-12.2 ≥868 ≥10.9 ≥1114 ≥14 263-287 33-36 320 ≤100
N38M 1.22-1.25 12.2-12.5 ≥899 ≥11.3 ≥1114 ≥14 287-310 36-39 320 ≤100
N40M 1.25-1.28 12.5-12.8 ≥923 ≥11.6 ≥1114 ≥14 302-326 38-41 320 ≤100
N42M 1.28-1.32 12.8-13.2 ≥955 ≥12.0 ≥1114 ≥14 318-342 40-43 320 ≤100
N45M 1.32-1.38 13.2-13.8 ≥995 ≥12.5 ≥1114 ≥14 342-366 43-46 320 ≤100
N48M 1.36-1.43 13.6-14.3 ≥1027 ≥12.9 ≥1114 ≥14 366-390 46-49 320 ≤100
N50M 1.40-1.45 14.0-14.5 ≥1033 ≥13.0 ≥1114 ≥14 382-406 48-51 320 ≤100
N33H 1.14-1.19 11.4-11.9 ≥836 ≥10.5 ≥1353 ≥17 247-270 31-34 330 ≤120
N35H 1.17-1.22 11.7-12.2 ≥868 ≥10.9 ≥1353 ≥17 263-287 33-36 330 ≤120
N38H 1.22-1.25 12.2-12.5 ≥899 ≥11.3 ≥1353 ≥17 287-310 36-39 330 ≤120
N40H 1.25-1.28 12.5-12.8 ≥923 ≥11.6 ≥1353 ≥17 302-326 38-41 330 ≤120
N42H 1.28-1.32 12.8-13.2 ≥955 ≥12.0 ≥1353 ≥17 318-342 40-43 330 ≤120
N45H 1.30-1.36 13.0-13.6 ≥963 ≥12.1 ≥1353 ≥17 326-358 43-46 330 ≤120
N48H 1.37-1.43 13.7-14.3 ≥995 ≥12.5 ≥1353 ≥17 366-390 46-49 330 ≤120

Permanent Magnetic Sphere Balls , N52 Sphere Magnets 1 Inch Ni Cu Ni Plated
