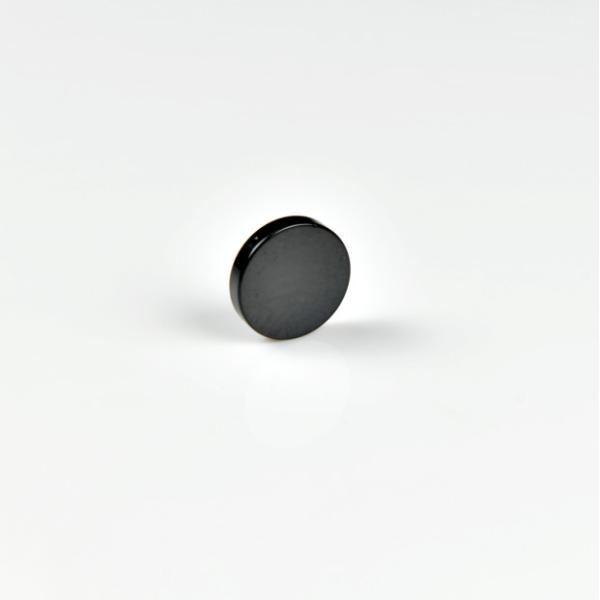

350C Sm2Co17 Small Round Black Assembly Magnets For Sensor ODM
350C Sm2Co17 Small Round Black Assembly Magnets For Sensor ODM
350C Sm2Co17 Small Round Black Assembly Magnets For Sensor ODM
350C Sm2Co17 Small Round Black Assembly Magnets For Sensor ODM
Specifications
Brand Name :
HSMAG
Model Number :
Sm2Co17
Certification :
ITAF16949
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
1000PCS 10Days
Delivery Time :
14 work days
Packaging Details :
Cartons, sheet metal shielding packaging
Product name :
Samarium Cobalt Magnets
shape :
Disc
Material :
Samarium Cobalt
Max Working Temperature :
350℃
Tolerance :
±20%, +/-0.05mm
Size :
Customized
Composite :
SmCo Magnet,
Coating :
Black Epoxy
Description

Sliver Ring Samarium Cobalt Magnets For Sensor,Ring magnet,permanent​
Product Paramenters


Products Description

Product Name
SmCo Magnetic
Product Materials
Samarium Cobalt Magnet
Product Materials
Rare earth Magnet
Size of the produc
Customized
Working Temp
350°C
Magnetic direction
Through thickness direction, the flat surface is magnetic field.

350C Sm2Co17 Small Round Black Assembly Magnets For Sensor ODM350C Sm2Co17 Small Round Black Assembly Magnets For Sensor ODM350C Sm2Co17 Small Round Black Assembly Magnets For Sensor ODM

Properties of SmCo Magnets

SmCo5 magnet is composed of SmCo alloy with Sm Co ratio of 1:5. According to weight, Sm accounts for 36% of the total. This SmCo alloy usually contains 36% Sm and a small amount of Co. This series of SmCo magnets can provide a maximum magnetic energy product of 25 MGOe and a reversible temperature coefficient of - 0.05% / ℃. In addition, this series is easier to calibrate to a specific magnetic field than Sm2Co17 series. The Sm2Co17 magnet consists of SmCo alloy with a SmCo ratio of 2:17. It also contains other elements, such as iron, copper, zirconium and hafnium in a small amount. The magnetic energy product of this property is higher, up to 32 MGOe, and the reversible temperature coefficient is - 0.03% / ℃.

350C Sm2Co17 Small Round Black Assembly Magnets For Sensor ODM

The components of samarium and cobalt?

Raw Material Ratio Energy Density ReversibleTemp.coefficient
SmCo5 Sm:Co=1:5 25MGOe - 0.05% / ℃
Sm2Co17 Sm:Co=2:17 32 MGOe - 0.03% / ℃.


Surface Treatment

Surface Method Thickness Colour
Ni Electroplate 10 Silver Semi-bright
Zn Electroplate 10 Silver Semi-bright
Ni-Cu-Ni Electroplate 10 Silver Semi-bright
Ni+Sn Electroplate

Ni 5 Sn 10

 Silver Semi-bright
Aluminum Chromate Lon-deposition 5 Yellow Semi-bright
Resin Coatings Spray Painting Electrophoresis 20 Black

Our Certificate

350C Sm2Co17 Small Round Black Assembly Magnets For Sensor ODM

Logistics And Trade

350C Sm2Co17 Small Round Black Assembly Magnets For Sensor ODM
