Steel Permanent Industrial Rare Earth SmCo Magnets ISO9001 Antirust
Steel Permanent Industrial Rare Earth SmCo Magnets ISO9001 Antirust
Steel Permanent Industrial Rare Earth SmCo Magnets ISO9001 Antirust
Steel Permanent Industrial Rare Earth SmCo Magnets ISO9001 Antirust
Specifications
Brand Name :
HSMAG
Model Number :
Sm2Co17
Certification :
ITAF16949 ISO9001
Place of Origin :
Mianyang , China
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000PCS 15Days
Delivery Time :
15 work days
Packaging Details :
Cartons, sheet metal shielding packaging
Size :
According to your requirement
Max Working Temperature :
350℃
Composite :
SmCo Magnet, Rare Earth Magnet
Grade :
SmCo Magnet, XG16 XG18 XG20 XG26A XG28A XG30A XG32A XG33EH
Coating :
Ni, Zn, Epoxy.Black Epoxy. Nickel.Silver.etc, Nickel;Zinc;Sn;Chromium;Gold;Silver;Epoxy;
Orientation :
Thickness or according to your needs
Application :
Industrial Magnet
Color :
black
Shape :
Arc
Description

Products Description

1:5 SmCo Magnet

SmCo1:5 Magnet is also called SmCo5, the highest working can be 250℃.Based on Sm,Co and some other metals. After processing of melting, milling, compression moulding and sintering. To make work blank with different levels of performance.

2:17 SmCo Magnet

SmCo2:17 Magnet is also called Sm2Co17, the highest working can be 350℃.Based on Sm, Co, copper, iron zirconium and some other metals. After processing of melting, milling, compression moulding and sintering. To make work blank with different levels of performance.

Raw Material Ratio

Energy Density

ReversibleTemp.coefficient

SmCo5

Sm:Co=1:5

25MGOe

- 0.05% / ℃

Sm2Co17

Sm:Co=2:17

32 MGOe

- 0.03% / ℃.

SmCo magnets has the highest temperature of 350℃, it has high magnetic properties,excellent temperature characteristic and corrosion resistance.It is widely used in aerospace, electronic instruments, magnetic pumps, high temperature lamps, sensors andother fields. And it can be produced in different shapes(round, square, ring, tile, bread), different properties (SmCo5 and Sm2Co17)

Different sizes:(Wafer diameter1≤R≤100mm,Square≤130mm)

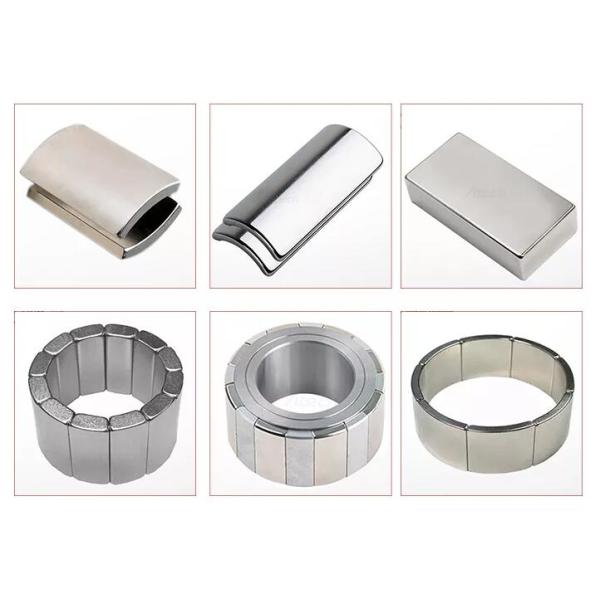

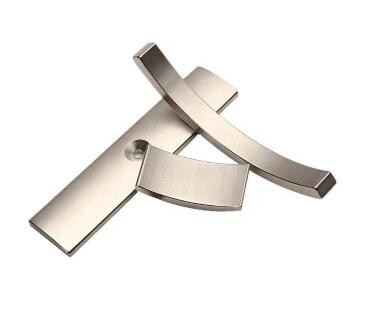

Products picture

Steel Permanent Industrial Rare Earth SmCo Magnets ISO9001 Antirust

Steel Permanent Industrial Rare Earth SmCo Magnets ISO9001 AntirustSteel Permanent Industrial Rare Earth SmCo Magnets ISO9001 Antirust

Company Profile

Mianyang Hengxin Magnetic Materials Co., Ltd. was founded in 1999, specializing in the manufacture and development of sintered samarium cobalt permanent magnet materials and devices; after years of development, it has formed a production capacity of 500 tons of samarium cobalt permanent magnet materials per year, and is the main manufacturer of samarium cobalt permanent magnet materials and devices in China.Steel Permanent Industrial Rare Earth SmCo Magnets ISO9001 Antirust
