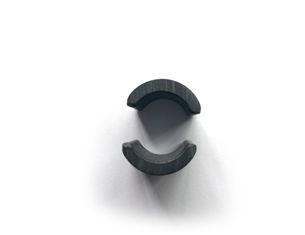

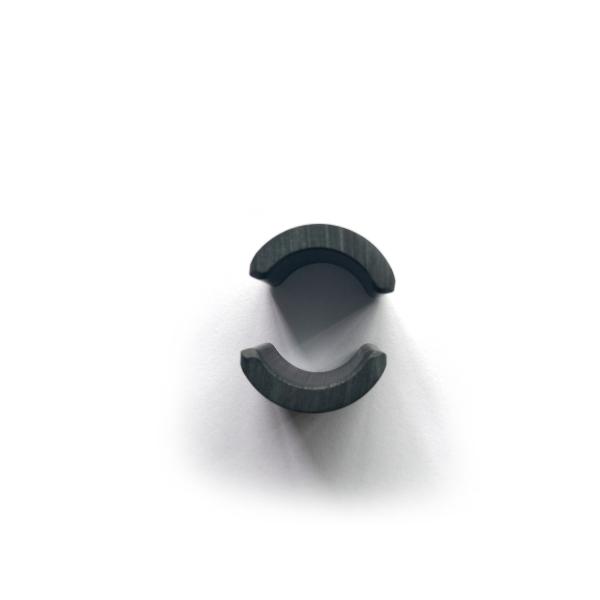

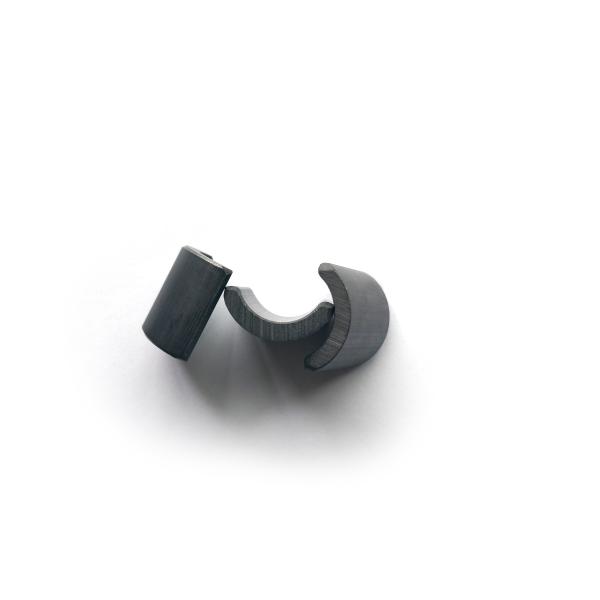

Strontium Electric Motor Magnet for Automotive EPB Motor / Permanent Magnet
Strontium Electric Motor Magnet for Automotive EPB Motor / Permanent Magnet
Specifications
Brand Name :
Magunion
Certification :
IATF16949, ISO9001
Place of Origin :
Sichuan, China
MOQ :
1000 pcs
Price :
USD 0.05-1/PC
Payment Terms :
L/C, T/T
Supply Ability :
10000 Tons per Year of Ferrite Magnet
Delivery Time :
10-15 days
Packaging Details :
Paper Cartoon & Pallet, or as customers' request
Application :
Automotive EPB motor
Type :
Permanent Ferrite Magnet
Grade :
LT07, LT08, LT10, LT11
Tolerance :
0.05mm
Density :
4.95~5.1 G/cm3
Working Temperature :
-80~150℃
Description

Strontium Electric Motor Magnet for Automotive EPB Motor / Permanent Magnet

Quick Details:

1. Application: Automotive EPB motor

2. Material grade: LT07, LT08, LT10, LT11

3. Shapes: arc, segments

4. Type: permanent ferrite magnet, wet-pressure ferrite magnet, sintered ferrite magnet

5. Material: ferrite, strontium, La2O3, CoO

Hard ferrite magnet is one of the most cost effective magnetic materials. Composed of Barium or Strontium ferrite, these materials exhibit good resistance to demagnetiztion, and are the lowest cost materials available today. It has a fair to good resistance toward corrosion and it can operate in moderate heat. Ceramic magnet has low energy product and they are usually used in assemblies containing mild steel. Sintered ferrite magnets are hard and brittle and are extensively used in automotive, home appliances, industry controls and other various fields.

Applications:

Speaker magnet

DC motor

Magnetic Resonance Imaging(MRI)

Magnet used on lawnmowers and outboard motors

DC permanent magnet motor

Separators

Used on magnetic assemblies designed for lifting, holding, retrieving and separating

Magnetic Door Catcher

Instrument and Meters

Toys

Arts and Crafts

Magunion Advantages:

Stable quality, good uniformity of performance and size

Professional new production line, the delivery time of sample is on 7-10 days.

School-enterprise cooperation, provide professional customized motor magnet program.

Merchandise name:

Ceramic magnet, permanent magnet, pot magnet, powerful magnet, arc magnet, motor magnet, generator magnet, cylinder magnet, magnet material, magnetic product, permanent magnetic materials.

Physical Characteristics
Physical Properties LT04 LT05 LT06 LT07 LT08 LT09 LT10 LT11
Temperature Range
(℃)		 -40～+80 -40～+80 -40～+80 -40～+80 -40～+80 -40～+80 -40～+80 -40～+80
Electrical Resistivity
(Ω·m)		 104～108 104～108 104～108 104～108 104～108 104～108 104～108 104～108
Density
(g/cm3)		 4.8～5.0 4.8～5.0 4.8～5.0 4.8～5.1 4.8～5.1 4.7～5.0 4.8～5.1 4.7～5.0
Recoil Permeability(rec) 1.05～1.03 1.05～1.03 1.05～1.03 1.05～1.03 1.05～1.03 1.05～1.03 1.05～1.03 1.05～1.03
Curie Temperature
θt(℃)		 460 460 460 450～460 450～460 450～460 450～460 450～460
Temperature Coefficient of Remanence Br(%℃) -(0.18～0.2) -(0.18～0.2) -(0.18～0.2) -(0.18～0.2) -(0.18～0.2) -(0.18～0.2) -(0.18～0.2) -(0.18～0.2)
Linear Expansion Coefficient(10-6/℃) 9～15 9～15 9～15 9～15 9～15 9～15 9～15 9～15

Magnet Properties
Type
(Magunion)		 Type
(TDK)		 Properties
Br Hcb Hcj BH(max)
Gs mT Oe kA/M Oe kA/M MGOe kJ/m3
LT01 / 3850±100 385±10 ＞3100 ＞246.8 ＞3300 ＞262.7 3.7±0.2 29.5±1.6
LT02 FB5B 4100±100 410±10 3200±150 242.4±11.9 3500±150 278.6±11.9 4.0±0.2 31.8±1.6
LT03 / 3950±100 395±10 3650±150 290.6±11.9 3900±150 310.5±11.9 3.8±0.2 30.2±1.6
LT04 FB6B 4200±100 420±10 3800±150 302.5±11.9 4000±150 318.4±11.9 4.2±0.2 33.5±1.6
LT05 FB6H 4000±100 400±10 3800±150 302.4±11.9 4500±150 358.1±11.9 3.7±0.2 29.4±1.6
LT06 FB9B 4500±100 450±10 4300±150 342.2±11.9 4500±250 358.2±11.9 4.9±0.2 38.4±1.6
LT07 FBIH 4300±100 430±10 4150±150 330.2±11.9 4800±250 382.1±11.9 4.4±0.2 35.0±1.6
LT08 FB12H 4600±100 460±10 4300±150 342±11.9 5000±250 398.1±11.9 5.2±0.2 41.4±1.6
LT09 FB12B 4700±100 470±10 4250±150 338.4±11.9 4700±250 374.2±11.9 5.4±0.2 43.1±1.6
LT10 FB9N 4600±100 460±10 3500±150 278.5±11.9 3600±150 286.5±11.9 5.1±0.2 40.4±1.6
LT11 FB6N 4400±100 440±10 3250±150 258.6±11.9 3300±150 262.7±11.9 4.5±0.2 35.9±1.6

Strontium Electric Motor Magnet for Automotive EPB Motor / Permanent MagnetStrontium Electric Motor Magnet for Automotive EPB Motor / Permanent MagnetStrontium Electric Motor Magnet for Automotive EPB Motor / Permanent MagnetStrontium Electric Motor Magnet for Automotive EPB Motor / Permanent MagnetStrontium Electric Motor Magnet for Automotive EPB Motor / Permanent MagnetStrontium Electric Motor Magnet for Automotive EPB Motor / Permanent Magnet
