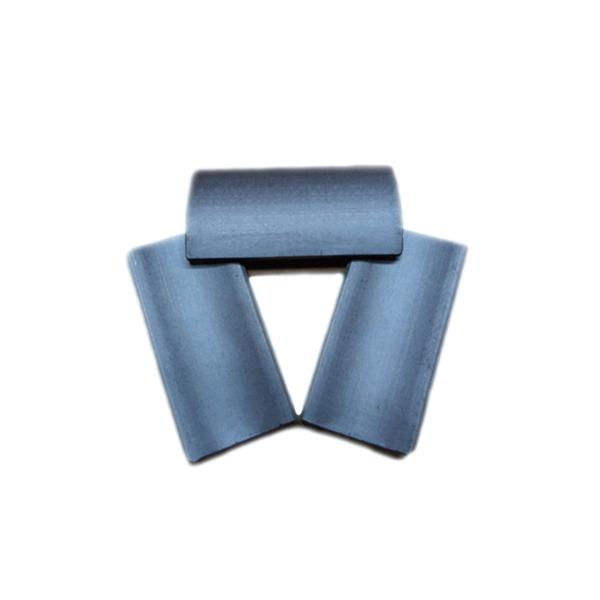

Automotive Ferrite Motor Magnets , Hard Ferrite Magnet for Auto 250W EPS Motor
Automotive Ferrite Motor Magnets , Hard Ferrite Magnet for Auto 250W EPS Motor
Specifications
Brand Name :
Magunion
Certification :
IATF16949, ISO9001
Place of Origin :
Sichuan, China
MOQ :
1000 pcs
Price :
USD 0.05-1
Payment Terms :
L/C, T/T
Supply Ability :
10000 Tons per Year of Ferrite Magnet
Delivery Time :
10-15 days
Packaging Details :
Paper Cartoon & Pallet, or as customers' request
Application :
Automotive EPS Motor
Type :
Permanent Ferrite Magnet
Grade :
LT06, LT08, LT10
Tolerance :
0.05mm
Density :
4.95~5.1 g/cm3
Working Temperature :
-80~150℃
Description

Automotive Ferrite Motor Magnets for Auto 250W EPS Motor , Hard Ferrite Magnet

Quick Details:

1. Application: Automotive 250W EPS motor

2. Material grade: LT06, LT08, LT10

3. Shapes: arc, segments

4. Material: ferrite, strontium, La2O3, CoO

There are mainly two types of ferrite magnets, Barium ferrite and Strontium ferrite. Compared with other permanent magnets, sintered hard ferrite magnet is cheap. It is suitable for most sensitive, but need not very high performance applicatoins. As a non-metal magnets, it is an ideal product for applications that require non-rusty magnets in humus environment. These magnets are widely used in many different applications, such as automotive, industrials, home appliances, loudspeakers, and many special applications.

Applications:

Permanent ferrite magnet DC motor

Speaker

MRI

Separators

Magnetor
Passive magnetic energy
Magnetic assemblies for lifting, holding, retrieving and separating
Magnetic Door Catcher

Toys

Arts and Crafts

Training aid

Magunion Advantages:

Stable quality, good uniformity of performance and size

School-enterprise cooperation, provide professional customized motor magnet program.

Professional new production line, the delivery time of sample is on 7-10 days.

Physical Characteristics
Physical Properties LT04 LT05 LT06 LT07 LT08 LT09 LT10 LT11
Temperature Range
(℃)		 -40～+80 -40～+80 -40～+80 -40～+80 -40～+80 -40～+80 -40～+80 -40～+80
Electrical Resistivity
(Ω·m)		 104～108 104～108 104～108 104～108 104～108 104～108 104～108 104～108
Density
(g/cm3)		 4.8～5.0 4.8～5.0 4.8～5.0 4.8～5.1 4.8～5.1 4.7～5.0 4.8～5.1 4.7～5.0
Recoil Permeability(rec) 1.05～1.03 1.05～1.03 1.05～1.03 1.05～1.03 1.05～1.03 1.05～1.03 1.05～1.03 1.05～1.03
Curie Temperature
θt(℃)		 460 460 460 450～460 450～460 450～460 450～460 450～460
Temperature Coefficient of Remanence Br(%℃) -(0.18～0.2) -(0.18～0.2) -(0.18～0.2) -(0.18～0.2) -(0.18～0.2) -(0.18～0.2) -(0.18～0.2) -(0.18～0.2)
Linear Expansion Coefficient(10-6/℃) 9～15 9～15 9～15 9～15 9～15 9～15 9～15 9～15

Magnet Properties
Type
(Magunion)		 Type
(TDK)		 Properties
Br Hcb Hcj BH(max)
Gs mT Oe kA/M Oe kA/M MGOe kJ/m3
LT01 / 3850±100 385±10 ＞3100 ＞246.8 ＞3300 ＞262.7 3.7±0.2 29.5±1.6
LT02 FB5B 4100±100 410±10 3200±150 242.4±11.9 3500±150 278.6±11.9 4.0±0.2 31.8±1.6
LT03 / 3950±100 395±10 3650±150 290.6±11.9 3900±150 310.5±11.9 3.8±0.2 30.2±1.6
LT04 FB6B 4200±100 420±10 3800±150 302.5±11.9 4000±150 318.4±11.9 4.2±0.2 33.5±1.6
LT05 FB6H 4000±100 400±10 3800±150 302.4±11.9 4500±150 358.1±11.9 3.7±0.2 29.4±1.6
LT06 FB9B 4500±100 450±10 4300±150 342.2±11.9 4500±250 358.2±11.9 4.9±0.2 38.4±1.6
LT07 FBIH 4300±100 430±10 4150±150 330.2±11.9 4800±250 382.1±11.9 4.4±0.2 35.0±1.6
LT08 FB12H 4600±100 460±10 4300±150 342±11.9 5000±250 398.1±11.9 5.2±0.2 41.4±1.6
LT09 FB12B 4700±100 470±10 4250±150 338.4±11.9 4700±250 374.2±11.9 5.4±0.2 43.1±1.6
LT10 FB9N 4600±100 460±10 3500±150 278.5±11.9 3600±150 286.5±11.9 5.1±0.2 40.4±1.6
LT11 FB6N 4400±100 440±10 3250±150 258.6±11.9 3300±150 262.7±11.9 4.5±0.2 35.9±1.6
