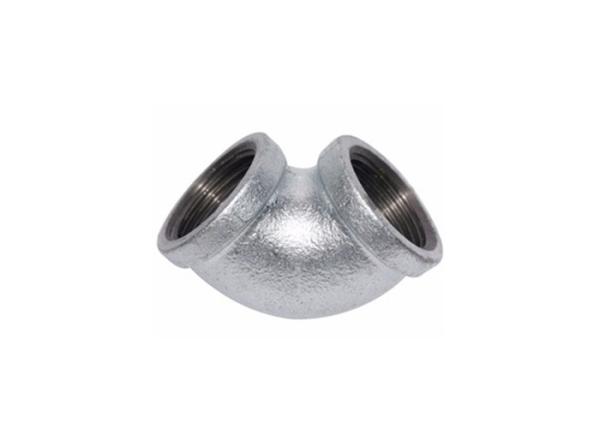

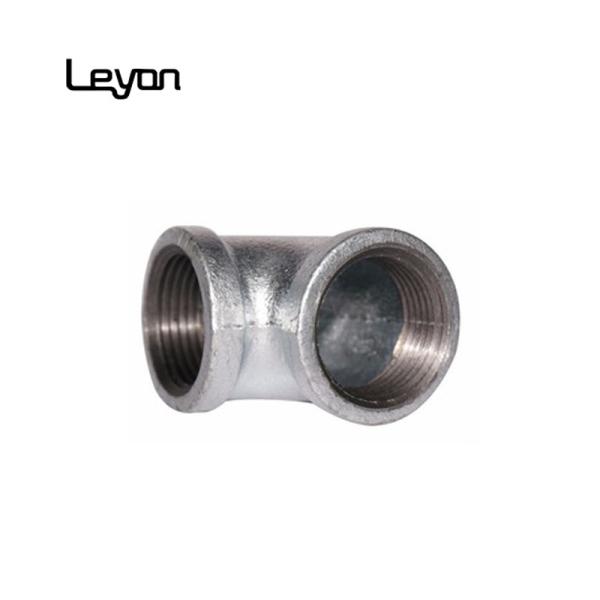

90 Malleable Iron Elbow BSPT Threaded Pipe Fitting For Fire Protection
90 Malleable Iron Elbow BSPT Threaded Pipe Fitting For Fire Protection
90 Malleable Iron Elbow BSPT Threaded Pipe Fitting For Fire Protection
90 Malleable Iron Elbow BSPT Threaded Pipe Fitting For Fire Protection
90 Malleable Iron Elbow BSPT Threaded Pipe Fitting For Fire Protection
90 Malleable Iron Elbow BSPT Threaded Pipe Fitting For Fire Protection
90 Malleable Iron Elbow BSPT Threaded Pipe Fitting For Fire Protection
90 Malleable Iron Elbow BSPT Threaded Pipe Fitting For Fire Protection
90 Malleable Iron Elbow BSPT Threaded Pipe Fitting For Fire Protection
90 Malleable Iron Elbow BSPT Threaded Pipe Fitting For Fire Protection
90 Malleable Iron Elbow BSPT Threaded Pipe Fitting For Fire Protection
90 Malleable Iron Elbow BSPT Threaded Pipe Fitting For Fire Protection
90 Malleable Iron Elbow BSPT Threaded Pipe Fitting For Fire Protection
90 Malleable Iron Elbow BSPT Threaded Pipe Fitting For Fire Protection
90 Malleable Iron Elbow BSPT Threaded Pipe Fitting For Fire Protection
90 Malleable Iron Elbow BSPT Threaded Pipe Fitting For Fire Protection
Specifications
Brand Name :
leyon
Model Number :
90 Elbow
Certification :
FM/UL/BSI/CE
Place of Origin :
China
MOQ :
1000 pieces
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T, MoneyGram,PayPal
Supply Ability :
50000 pieces/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Application :
Plumbing,fire fighting,Mining
Meterial :
Malleable Iron
Technics :
Casting
Size :
DN15-DN2400, 1/2"-96"
Standard :
ANSI, BS, DIN,EN
Surface treatment :
Hot/Cold-dipped galvanized
Thread :
ISO7/1, DIN2999,NPT
Type :
90 Elbow
connection :
male &female
associated products :
Tee,cross,coupling ,nipple,union ,plug,cap
Description

90 Malleable Iron Elbow BSPT Threaded Pipe Fitting For Fire Protection

Products details of BSPT Threaded Malleable Iron elbow

Malleable cast iron pipe elbow processing production adopt the equipments from DISA Denmark DJ AMF Japan ,SINTOKOGIO automatic production line to guarantee the quality of the products.

The cast iron samples are used to test its material’s quality by using spectrometer from Oxford Instruments.

Using high calorific value of natural gas annealing furnace,manipulate the annealing process rigorously,improve the physical properties of the materials.

The final casting fittings are made of close-grained, high strength, impeccable steel & plate scrap.

Since quality of the steel is the outset of excellent quality fittings.

Our accurate threads are complied with strict standard ,such as AME,EN,BS,DIN etc.The threads have an accurate structure,make sure that the thread length and straightness are easier to coincide with thread pipe.

The pipe fittings outlet size are from 1/8’’ to 8”

Favorable tenacity,long service life.

The surface is smooth without trachoma

The zinc average coating thickness is higher than the requirements of standard for ASME(86 um), EN(70um), DIN(70um) and SI(78um).

90 Malleable Iron Elbow BSPT Threaded Pipe Fitting For Fire Protection

Size sheet of BSPT Threaded Malleable Iron elbow

Size Inch 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2
mm 6 8 10 15 20 25 32 40
Dim.
(mm)		 A 17.5 20.6 24.1 28.5 33.3 38.1 44.5 49.3
Size Inch 2 21/2 3 4 5 6 8 　
mm 50 65 80 100 125 150 200 　
Dim.
(mm)		 A 57.2 68.6 78.2 96.3 114.3 130.3 162 　

Product information of BSPT Threaded Malleable Iron elbow

Material

 Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa

Type

 Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL

Application

 Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available

Package

 Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements

Delivery details

 According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit

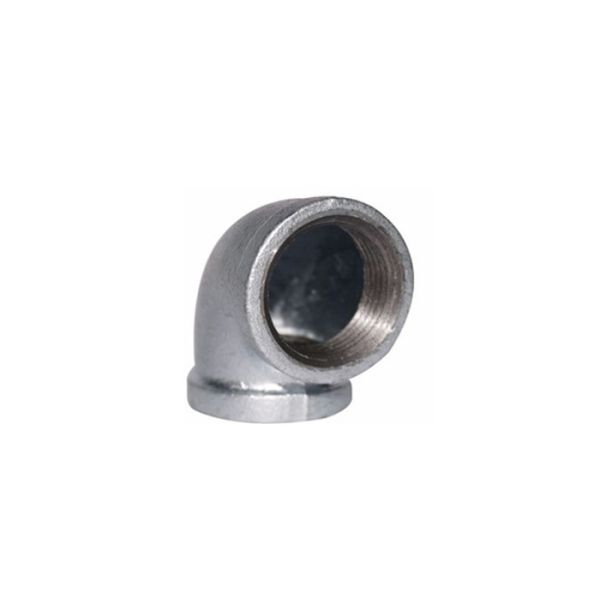

The picture of BSPT Threaded Malleable Iron elbow
90 Malleable Iron Elbow BSPT Threaded Pipe Fitting For Fire Protection
