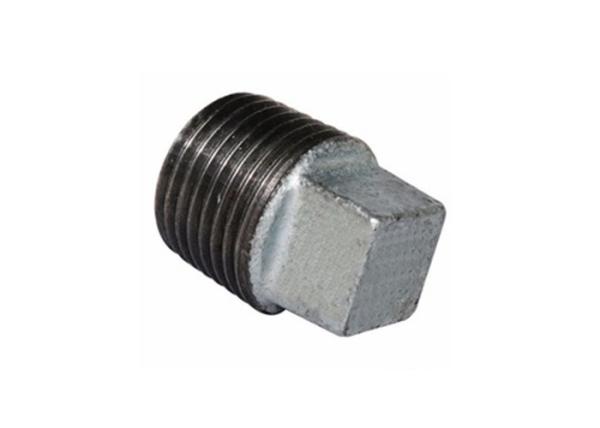

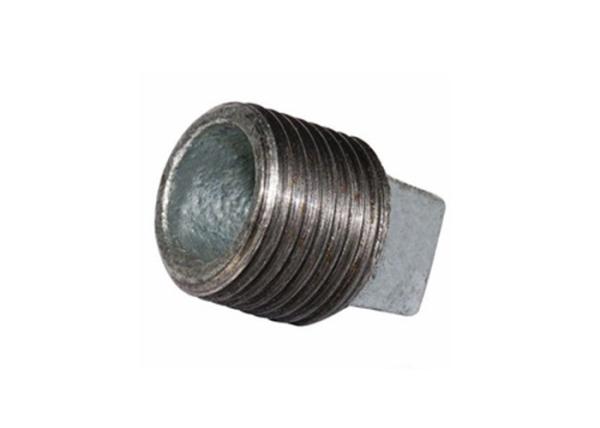

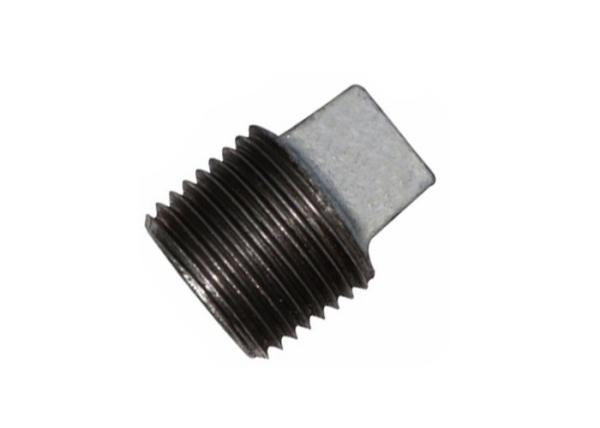

Galvanized Banded Pipe Fitting Plug Threaded Pipe Coupling No.301 Wearable
Galvanized Banded Pipe Fitting Plug Threaded Pipe Coupling No.301 Wearable
Galvanized Banded Pipe Fitting Plug Threaded Pipe Coupling No.301 Wearable
Galvanized Banded Pipe Fitting Plug Threaded Pipe Coupling No.301 Wearable
Galvanized Banded Pipe Fitting Plug Threaded Pipe Coupling No.301 Wearable
Galvanized Banded Pipe Fitting Plug Threaded Pipe Coupling No.301 Wearable
Specifications
Brand Name :
kanaif
Model Number :
Banded Malleable Iron Pipe Fitting plug
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Color :
Galvanized & Black
Meterial :
Malleable iron
Technics :
Casting
Standard :
ANSI,BS,DIN
Surface treatment :
Hot Galvanized
Head Code :
Square
Type :
Plug
Size :
1/8"-6“ Banded Malleable Iron Pipe Fitting plug
Description

No.301 Plug Galvanized Banded Malleable Iron Pipe Fitting hex H plug

Size Inch 1/8 1/4 3/8 1/2 3/4 1 11/4
mm 6 8 10 15 20 25 32
Dim.
(mm)		 A 15.5 18.3 20.1 23.9 27.2 31.8 34.5
Size Inch 11/2 2 21/2 3 4 6 　
mm 40 50 65 80 100 150 　
Dim.
(mm)		 A 36.9 39.7 46 49 64.5 71.5 　

Maintenance of Cast Iron

The maintenance principles for cast iron are, in order of appearance:

1. Prevent rust and corrosion.

2. Paint and plug holes.

3. Maintain structural soundness.

4. keep it together with binding and bolts, welding, etc., and brace loose elements by resetting.

5. Recreate missing pieces using casting replacement parts (iron, aluminum, fiberglass, or epoxy), or wooden replacements, with appropriate composition and/or coatings to provide for color blending.

Cast iron requires continual maintenance. Check periodically for water collection spots and dry as necessary. Signs of corrosion are when rusty looking stain marks appear on the metal. If these areas are rubbed the metal surface is revealed as well as traces of perforation. Check for small chips in the coating surface and peeling of the coating surface.

Replace or repair as necessary if the damage is minimal missing and deteriorated pieces of metal prior to cleaning. If deteriorated condition is left unrepaired, perforation of the metal will occur and as a result structural failure.

Structural iron maintenance may require the services of a structural engineer when severe erosion or distortion occurs, to assist in the development of repair techniques when material loss is involved. For these repairs use only a professional iron worker. Before installation of new material verify the metal type and thickness. Prior to installation, remove all oil, dirt, and other debris from the surface. All surfaces shall be dry and free from frost.

Graphical represented of data of Banded Malleable Iron Pipe Fitting plug

Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements
Delivery details According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit

Galvanized Banded Pipe Fitting Plug Threaded Pipe Coupling No.301 Wearable
