SS High Pressure Safety Valve , Inner Threaded Two Piece Ball Valve Food Grade
SS High Pressure Safety Valve , Inner Threaded Two Piece Ball Valve Food Grade
SS High Pressure Safety Valve , Inner Threaded Two Piece Ball Valve Food Grade
SS High Pressure Safety Valve , Inner Threaded Two Piece Ball Valve Food Grade
SS High Pressure Safety Valve , Inner Threaded Two Piece Ball Valve Food Grade
SS High Pressure Safety Valve , Inner Threaded Two Piece Ball Valve Food Grade
Specifications
Brand Name :
leyon
Model Number :
ball valve 05
Certification :
ISO9001
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Application :
genneral
brand :
leyon
Power :
Hydraulic
product name :
threaded 2pc ball valve
structure :
ball
specification :
ball valve, check valve, gate valve, butterfly valve, stop valve, etc.
Media :
water
threaded :
BSPT, NPT, DIN2999
Description

pressure safety valve food grade inner threaded 2pc ball valve

Our Company

Leyon company is specilized in manufacturing stainless steel valves,

pipeline components and OEM Products concern with the industry and the water treatment sector.

Here are Co-win:

Main products: ball valve, check valve, butterfly valve,

sanitary union, camlock and OEM parts.

Design standard: ASME, ISO, EN, BS, DIN, JIS

Pressure Rating:

Class 150/300/600/900/1500

PN16/25/40/63/100/160

Material: CF8M, CF8, CF3M, CF3, WCB and other material

Description for 2pc ball valve

Pressure Rating: 1000psi/PN63

Working Temperature: -10℃-150℃

Full Port

Investment Casting

Blow-out proof stem

Locking Device handle(Option)

PED97/23EC

Thread: ASME B1.20.1

BS21, DIN2999/259, ISO228-1, ISO7/1,JIS B 0203

Inspection Testing: API598,EN12516-2

Chart for 2pc ball valve

Material SUS201, SUS304,SUS316, SUS 304L , SUS 316L(CF8, CF8M),etc.
Size 1/4" -4" (DN6-DN100)
pressure 1000psi
Temperature range -20-300 degree C
connection Butt weld
sealing PTFE,RPTFE,PPL ETC
Production process Investment casting, CNC lathe, Test, Cleaning, Packing, Storage
Certification CE, ISO, our factory has been inspected by SGS and TUV
Locking With or without
Capacity to produce 100,000.00pcs/week
Main products Includes ball valve, butterfly valve, check valve, gate valve, strainer, etc.
Application Suitable for water, oil, air and some corrosive liquid etc
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Or as buyer’s requirements
Delivery details According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit

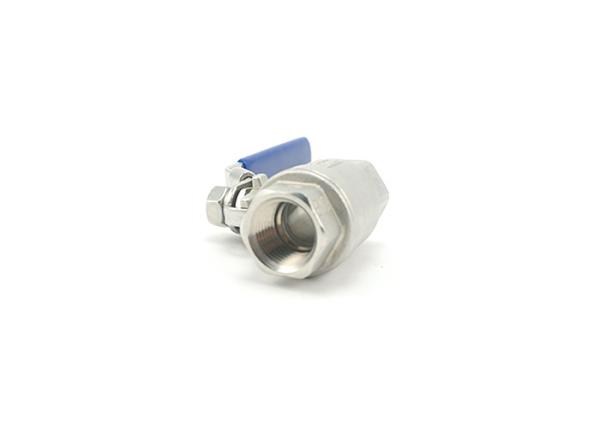

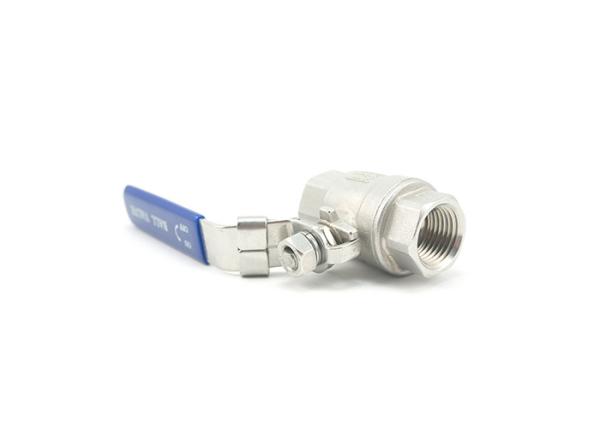

2 pc ball valve

SS High Pressure Safety Valve , Inner Threaded Two Piece Ball Valve Food Grade
