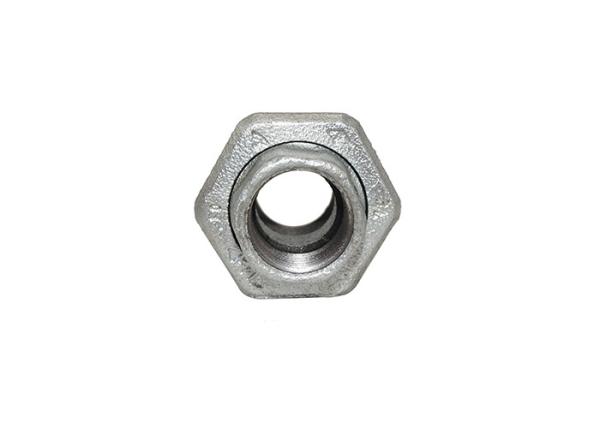

Casting Malleable Iron Unions 1 8 Pipe Fittings Bsp Standard Square Head Code
Casting Malleable Iron Unions 1 8 Pipe Fittings Bsp Standard Square Head Code
Casting Malleable Iron Unions 1 8 Pipe Fittings Bsp Standard Square Head Code
Casting Malleable Iron Unions 1 8 Pipe Fittings Bsp Standard Square Head Code
Casting Malleable Iron Unions 1 8 Pipe Fittings Bsp Standard Square Head Code
Casting Malleable Iron Unions 1 8 Pipe Fittings Bsp Standard Square Head Code
Specifications
Brand Name :
kanaif
Model Number :
1/8" flat seat union
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Color :
Galvanized & black
Meterial :
Malleable iron
Technics :
Casting
Size :
1/8"-6“
Standard :
ANSI,BS,DIN
Sueface teathment :
Hot Galvanized
Head Code :
Square
Item :
1/8" flat seat union
Description

Size of 1/8" flat seat union

mm 6 8 10 15 20 25 32
Dim.
(mm)		 A 32.0 36.5 41.0 43.5 49.5 52.5 57.5
Size Inch 11/2 2 21/2 3 4 6 　
mm 40 50 65 80 100 150 　
Dim.
(mm)		 A 61 70 82 89 98 145 　

1/8" malleable iron pipe fitting female bsp standard conical m&f union

1. Higher heating value gas annealing furnace plays a decisive role on improving material physical characteristics of 1/8" flat seat union.

2. Every union will face strict airtight test.

3. The quality is controlled by full automatic product-lines of DISA Denmark, SINTOKOGIO and DJAMF Japan.

Informations about whiteheart malleable cast iron

whiteheart malleable cast iron depends on section size. Small sections contain pearlite and temper carbon in ferritic substrate. In the large sections there are three different zones namely (i) surface zone which contains pure ferrite, (ii) intermediate zone which has pearlite, ferrite and temper carbon, and (iii) core zone that contains pearlite, temper carbon and ferritic inclusions. The microstructure of this iron does not contain flake graphite.

Catagory :

Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements
Delivery details According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit
