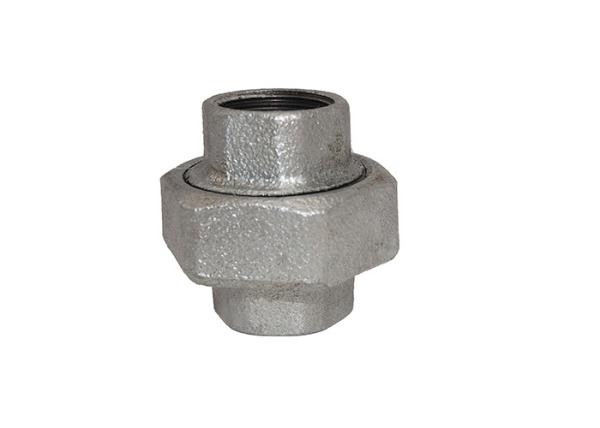

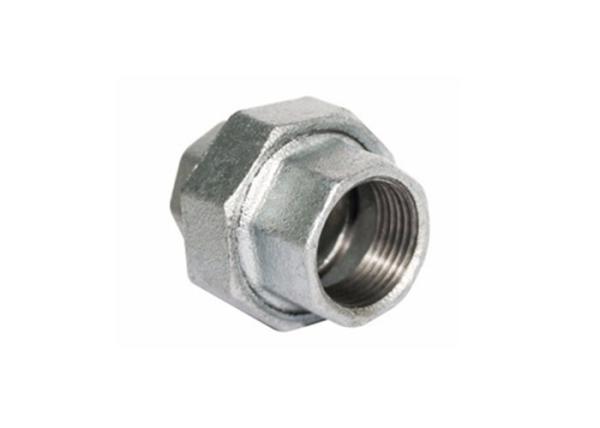

2-1/2 Size White / Black Pipe Union Fitting , Flat Seat Gas Pipe Union Malleable Iron
2-1/2 Size White / Black Pipe Union Fitting , Flat Seat Gas Pipe Union Malleable Iron
2-1/2 Size White / Black Pipe Union Fitting , Flat Seat Gas Pipe Union Malleable Iron
2-1/2 Size White / Black Pipe Union Fitting , Flat Seat Gas Pipe Union Malleable Iron
2-1/2 Size White / Black Pipe Union Fitting , Flat Seat Gas Pipe Union Malleable Iron
2-1/2 Size White / Black Pipe Union Fitting , Flat Seat Gas Pipe Union Malleable Iron
Specifications
Brand Name :
kanaif
Model Number :
2-1/2" size conical m&f union
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Color :
Galvanized & black
Meterial :
Malleable iron
Technics :
Casting
Size :
1/8"-6“
Standard :
ANSI,BS,DIN
Sueface teathment :
Hot Galvanized
Head Code :
Square
Item :
2-1/2" size conical m&f union
Description

Table of 1/2" size galvanized black conical joint union

mm 6 8 10 15 20 25 32
Dim.
(mm)		 A 32.0 36.5 41.0 43.5 49.5 52.5 57.5
Size Inch 11/2 2 21/2 3 4 6 　
mm 40 50 65 80 100 150 　
Dim.
(mm)		 A 61 70 82 89 98 145 　

Black and white 2-1/2" size pipe fitting flat seat concial joint m&f union

Applications:

Malleable cast irons are often used as the material of choice for small castings or castings

with thin cross sections which, in other irons, would tend to have chill (carbides in the surface

layers due to the rapid cooling rates in thin sections).

Castings of less than a gram in weight are successfully sand cast in malleable cast iron. Another significant aspect is that the malleable properties can exist to the surface of the casting as opposed to in ductile irons where the cast surface can contain flake graphite, creating a situation where thin malleable iron castings can be stronger than ductile iron.

Malleable cast irons ability to be welded to other ferrous materials makes it ideal for complex brackets that need to be integral to steel castings or fabrications. Because all malleable cast irons are annealed, machinists can be confident not to encounter carbides leading to expensive tooling damage.

Excel of 2-1/2" size conical m&f union

Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements
Delivery details According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit

2-1/2
