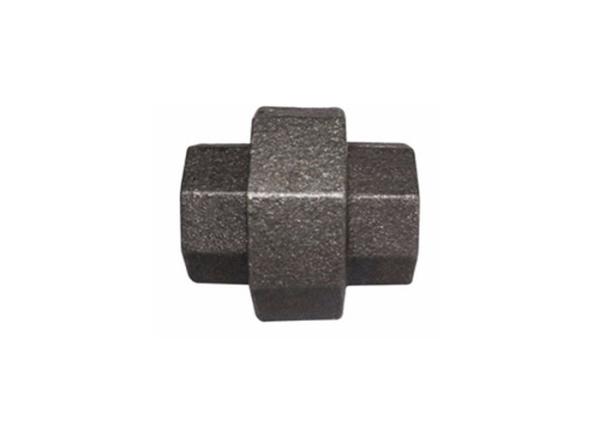

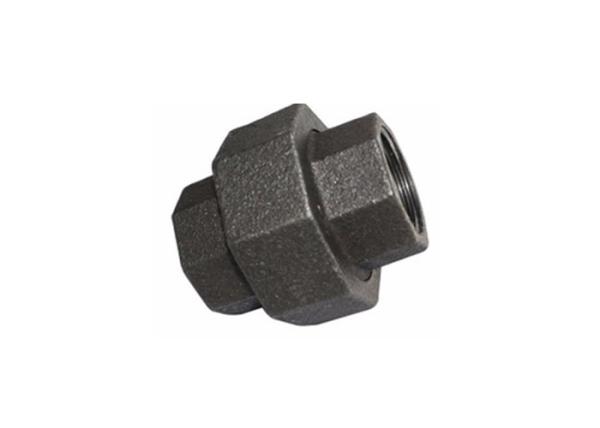

Customized Size Cast Iron Sewer Pipe Fitting Union , Gas Line Union Coupling
Customized Size Cast Iron Sewer Pipe Fitting Union , Gas Line Union Coupling
Customized Size Cast Iron Sewer Pipe Fitting Union , Gas Line Union Coupling
Customized Size Cast Iron Sewer Pipe Fitting Union , Gas Line Union Coupling
Customized Size Cast Iron Sewer Pipe Fitting Union , Gas Line Union Coupling
Customized Size Cast Iron Sewer Pipe Fitting Union , Gas Line Union Coupling
Specifications
Brand Name :
kanaif
Model Number :
1-1/2" flat seat union
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Color :
Galvanized & black
Meterial :
Malleable iron
Technics :
Casting
Size :
1/8"-6“
Standard :
ANSI,BS,DIN
Sueface teathment :
Hot Galvanized
Head Code :
Square
Item :
1-1/2" flat seat union
Description

Malleable cast iron besides less sensitive to cracking has a range of features, such as higher values of tensile strength, rupture strength and elongation, and high resistance to wear and strong shock resistance. These properties make it useful for a range of commercial purposes. Malleable cast iron is often used as an alternative to steel since it is cheaper to produce and use.

Size chart :

mm 6 8 10 15 20 25 32
Dim.
(mm)		 A 32.0 36.5 41.0 43.5 49.5 52.5 57.5
Size Inch 11/2 2 21/2 3 4 6 　
mm 40 50 65 80 100 150 　
Dim.
(mm)		 A 61 70 82 89 98 145 　

The usage of malleable cast iron pipe fitting

  • Fire pipe installation
  • Gas pipeline installation
  • Central air conditioning pipeline installation
  • Other machinery and equipment installation

Chemical composition of malleable iron
Element Composition in %
Carbon 2.2 – 2.8%
Silicon 1.20 – 1.8%
Manganese 0.4 – 1.2%
Sulphur 0.02 – 0.2%
Phosphorus 0.02 – 0.1%

Technical data :

Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements
Delivery details According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit
