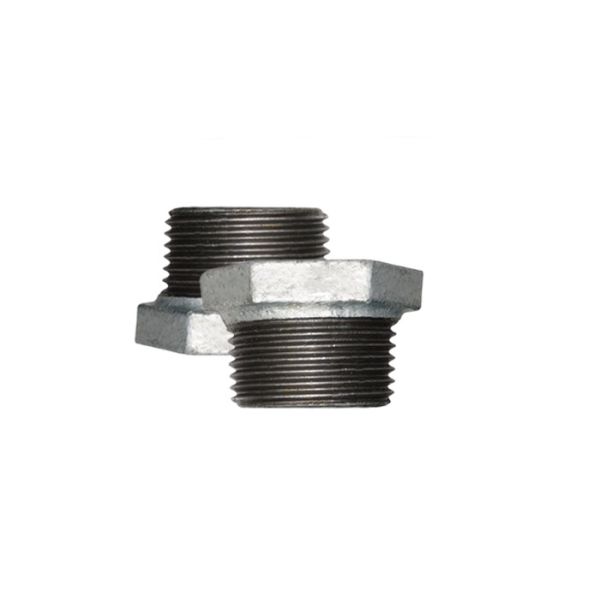

Black Malleable Pipe Fitting Bushing DIN Standard Hex Head Bushing Eco Friendly
Black Malleable Pipe Fitting Bushing DIN Standard Hex Head Bushing Eco Friendly
Black Malleable Pipe Fitting Bushing DIN Standard Hex Head Bushing Eco Friendly
Black Malleable Pipe Fitting Bushing DIN Standard Hex Head Bushing Eco Friendly
Black Malleable Pipe Fitting Bushing DIN Standard Hex Head Bushing Eco Friendly
Black Malleable Pipe Fitting Bushing DIN Standard Hex Head Bushing Eco Friendly
Specifications
Brand Name :
kanaif
Model Number :
DIN standard black bushing
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Color :
Galvanized & Black
Meterial :
Malleable iron
Technics :
Casting
Size :
1x3/4"-4x3“
Standard :
ANSI,BS,DIN
Surface treatment :
Hot Galvanized
Head Code :
Square
Item :
DIN standard black bushing
Description

Size list of DIN standard black bushing

Size Inch 4x3 3/8x1/8 3/8x1/4 5x4 6x5 1/2x1/8 1/2x1/4
mm 100x80 10x6 10x8 125x100 150x125 15x6 15x8
Dim.
(mm)		 A 43.7 16.3 16.3 46.0 51.6 19.0 19.0
Size Inch 1/2x3/8 3/4x1/8 3/4x1/4 3/4x3/8 3/4x1/2 1x1/2 1x3/4
mm 15x10 20x6 20x8 20x10 20x15 25x15 25x20
Dim.
(mm)		 A 19 21.6 21.6 21.6 21.6 25.5 25.5

Malleable Iron Fitting Bushing DIN Standard Black Bushing Factory HEX Bushing

  1. The DISA from Denmark,DJ AMF form Japan and the automatic production line from Sinto is introduced in malleable iron bushing product-line to ensure product quality .
  2. we use spectrometer from Oxford Instruments to check the material's quality.
  3. The annealing process and physical performance have been strictly controlled by the gas annealing furnace of high heat value.
  4. Because of the air-tight test,we guarantee each pipe fitting bushing with no leakage
  5. Command the calibre of the thread,parallelism,angle,tooth type grimly,and every pipe fitting union need examination.
  6. The size of DIN standard black bushing's outlet is from 4x3”to 8x6’’.
  7. The bushings we produce are with good toughness and long operating life.
  8. The outside appearance is very glossy and not with any sand hole on DIN standard black bushing.
  9. The average thickness of the zinc cover reaches more than the requests of ASME(86 mu),EN(70 mu),DIN (70 mu),SI(78 mu) and so on.

Comparison table of DIN standard black bushing

Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements
Delivery details According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit

Black Malleable Pipe Fitting Bushing DIN Standard Hex Head Bushing Eco Friendly
