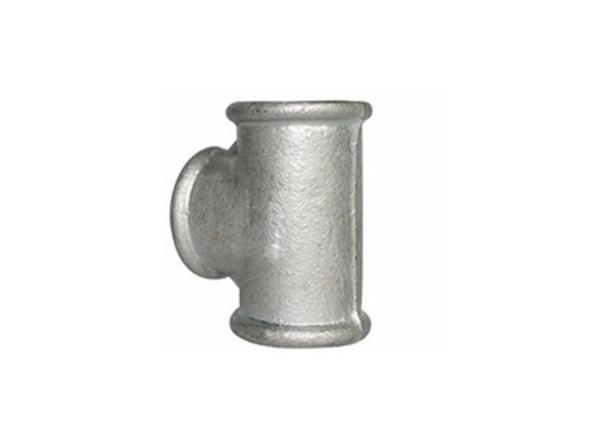

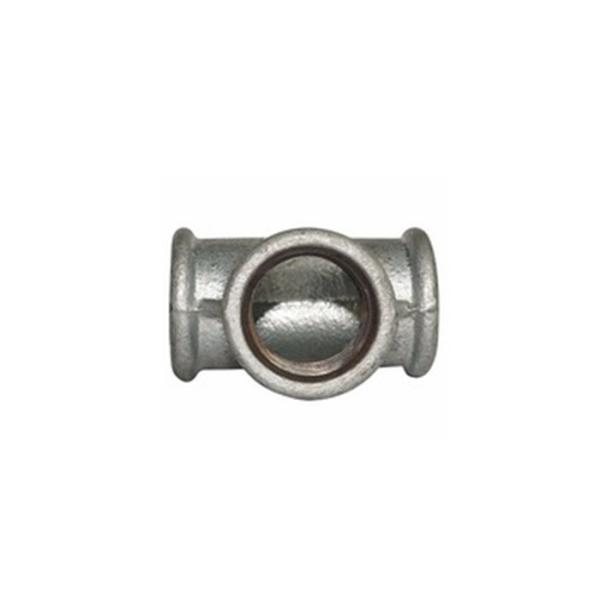

China Factory Malleable Iron Pipe Fittings Galvanized/ Black Tees
China Factory Malleable Iron Pipe Fittings Galvanized/ Black Tees
China Factory Malleable Iron Pipe Fittings Galvanized/ Black Tees
China Factory Malleable Iron Pipe Fittings Galvanized/ Black Tees
China Factory Malleable Iron Pipe Fittings Galvanized/ Black Tees
China Factory Malleable Iron Pipe Fittings Galvanized/ Black Tees
Specifications
Brand Name :
leyon
Model Number :
Connect Tees
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T, D/P, D/A, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Specification :
Elbow, socket, Tee, Union, Bushing, Plug
Item :
3/4X1/8 inch Connect Tees
Application :
Steam, air, gas and oil pipes
Technics :
sophisticated metallurgical
Treaded :
ISO7/1, DIN2999,NPT
Size :
3/4X1/8 inch
Dimensions :
28 mm
Description

3/8 Inch 28mm Malleable Iron Pipe Fitting Quick Connect Tees With FM/UL Certificate

Leyon is 30 years old , devote itself to offering Connect Tees for global guests in Connect Tees transportation and storage field. Depend upon the collaborations with world top Connect Tees manufactures on high-end Connect Tees products application, Leyon could provide professional Connect Tees solutions for unique projects amid special construction place.

Reference list of Connect Tees :

· Material: malleable iron

· Technics: casing

· Type: Connect Tees

· Connection:male&female

· Physical structure: Equal

· Code: Round

· size:1/8"-8"

· Standard: ANSI, BS, DIN

· Packing: wooden cases or as customers' demands

· surface treatment:painting galvaized or as customers' demands

Visual communication of Connect Tees
Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements

Delivery details

 According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit

A&Q

A.Which kind of technology they use for Connect Tees?

Q: We use the most advanced metallurgical technology and precision machining to produce Connect Tees.

A: Annealing process for Connect Tees?

Q: The improving of material physical properties for Connect Tees rely on strict annealing process .

A. How to Accurate thread processing of Connect Tees ?

Q: Accurate thread processing for Connect Tees are based on international standard strictly.

A. What's the size range of Connect Tees ?

Q: Outlet size of Connect Tees are from 1/8”~8”

A.How about the quality of Connect Tees?

Q:Good toughness of Connect Tees with long working life.

Attribute definition list of Connect Tees
Size Inch 1/8 1/4 3/8 1/2 3/4 1 11/4
mm 6 8 10 15 20 25 32
Dim.
(mm)		 A 19 21 25 28 33 38 45
Size Inch 3/8X1/4 1/2X1/4 1/2X3/8 3/4X1/4 3/4X1/8
mm 10X8 15X8 15x10 20x8 20X10
Dim.
(mm)		 A 23 24 26 26 28

Size Inch 3/4x1/2 1x1/4 1x3/8 1x1/2 1x3/4
mm 20x15 25x8 25x10 25x15 25x20
Dim.
(mm)		 A 30 28 30 32 35
Size Inch 11/4x3/8 11/4x1/2 11/4x3/4 11/4x1 11/2x1/2
mm 32x10 32x15 32x20 32x25 40x15
Dim.
(mm)		 A 32 34 36 40 36

Size Inch 11/2x3/4 11/2x1 11/2x11/4 2x1/2 2x3/4
mm 40x20 40x25 40x32 50x15 50x20
Dim.
(mm)		 A 38 42 46 38 40
Size Inch 2x1 2x11/4 2x11/2 21/2x1/2 21/2x3/4
mm 50x25 50x32 50x40 65x15 65x20
Dim.
(mm)		 A 44 48 52 46 49
