8 Inch Natural Gas Pipe Fittings Light Weight For Oil Gas Water Industrial
8 Inch Natural Gas Pipe Fittings Light Weight For Oil Gas Water Industrial
8 Inch Natural Gas Pipe Fittings Light Weight For Oil Gas Water Industrial
8 Inch Natural Gas Pipe Fittings Light Weight For Oil Gas Water Industrial
8 Inch Natural Gas Pipe Fittings Light Weight For Oil Gas Water Industrial
8 Inch Natural Gas Pipe Fittings Light Weight For Oil Gas Water Industrial
Specifications
Brand Name :
LEYON
Model Number :
cap02
Certification :
FM,UL
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000pcs/week
Delivery Time :
25-35days
Packaging Details :
carton
type :
cap
Material :
iron
Usage :
Oil Gas Water Industrial
size :
1/8",3/8",1/2",3/4",1",1 1/4" 1 1/2" ,2",2 1/2" 3",4",5",6"
standard :
ANSI, BS, DIN,EN
product name :
malleable iron cap
Description

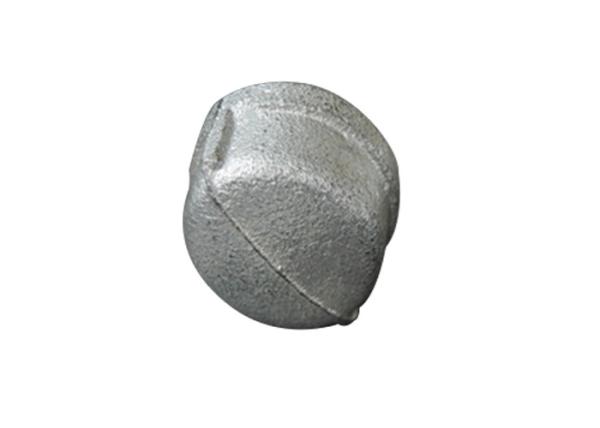

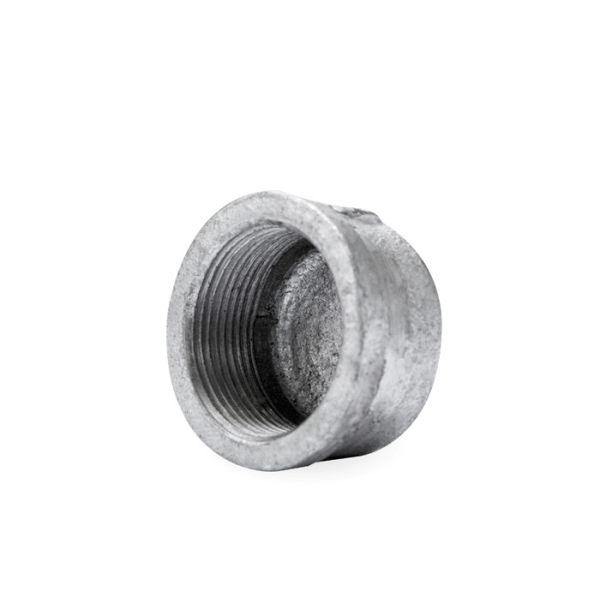

Galvanized Malleable Iron Pipe Fitting Cap Bushing Union Nut

Specification of malleable iron cap
Thread: perfect thread, better to connet
Type: Beaded with rids
Surface: Smooth surface, no impurities
British standard: thread ISO 7/1; Dimension: BS EN 10242, BS 143&1256
Chemical property: Tensile strength >=300MPa, Elongation >=6%, Hardness <=150HB
Testing pressure: 2.5MPa, 100% test before shipment
Working pressure: 1.6Mpa
Type: Banded, Beaded with ribs.
Size: 1/8",3/8",1/2",3/4",1",11/4",11/2",2",21/2",3",4",5",6"
Surface: Galvanized; Normal black/Shining black
Series: Heavy, Standard, Medium, Light
Model:
Elbows, Tees, Crosses, Bends, Unions, Bushings, Lateral Y Braches, Sockets,
Nipples, Hexagon/Round Caps, Plugs, Locknuts, Flanges, Side Outlet Tees,
Side Outlet Elbows, etc.
Connection: Male, Female
Shape: Equal, Reducing
Certificate: BSI, ANAB, ISO9001,FM,UL
Applications: Suitable for Pipe lines connect of water, steam, air, gas, oil and so on.
Package:
1. Cartons without pallets.
2. Cartons with pallets.
3. Double woven bags
Or as buyer’s requirements.
Delivery detail: According to the quantities and specifications of each order.
Normal delivery time is from 25 to 35 days after receiving the deposit.

FAQ for malleable iron cap

Production Capacity

Our factory could export 30000ton / year.

OEM service

We have professional technical research team. They have 20 years experience.

If you have special requirements about the product, we could help you solve the problem.

Good Sales Service.

We provide after sales service for you.

Quick Delivery

Products in stock, it will take 15 days for delivery. Standard delivery time is about 30-45 days.

Information for pipe fitting cap

Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements

Delivery details

 According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit
