Specifications
Brand Name :
leyon
Model Number :
figure number 90
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Color :
Galvanized
Meterial :
iron
Technics :
Casting
Size :
1/8"-6"
Standard :
ANSI,BS,DIN
Surface treatment :
Hot Galvanized
brand :
leyon
Type :
Elbow
thread :
ISO 7/1
Description

Features

malleable iron pipe fitting elbow is made with most sophisticated metallurgical and processing controls available.

2. cast iron samples are continuously analyzed by using spectroscopy to conform the material quality

3. Variety of chemical analysis is controlled strictly up to standard.

4.We use a close-grained, high strength, non-porous iron to produce the final casting. Because of quality iron is the start point of producing superior-quality pipe fitting.

5.Accurate threads are processed that comply with the precise standards, such as ASME, EU, BS, DIN, etc. The threads have an accurate structure, so the thread length and straightness to allow them to easily engage threaded pipe.

6. The pipe fittings have outlets ranging from 1/8” through 6”

7. Good toughness with long working life.

8. smooth surface without any sand hole

Size sheet

Size Inch 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2
mm 6 8 10 15 20 25 32 40
Dim.
(mm)		 A 17.5 20.6 24.1 28.5 33.3 38.1 44.5 49.3
Size Inch 2 21/2 3 4 5 6 8 　
mm 50 65 80 100 125 150 200 　
Dim.
(mm)		 A 57.2 68.6 78.2 96.3 114.3 130.3 162 　

Material

 Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa

Type

 Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL

Application

 Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available

Package

 Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements

Delivery details

 According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit

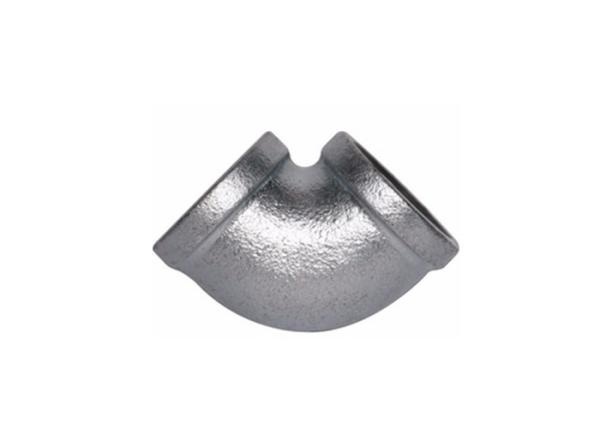

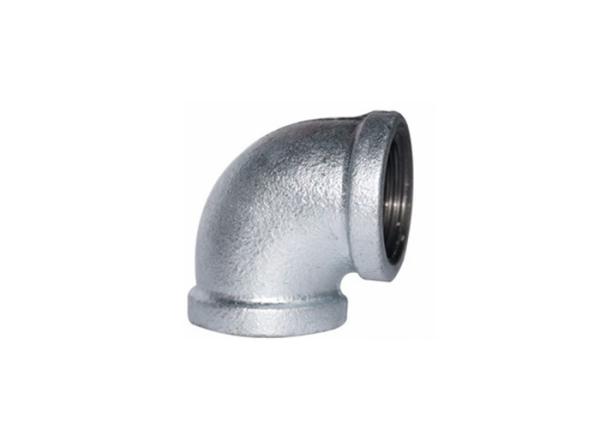

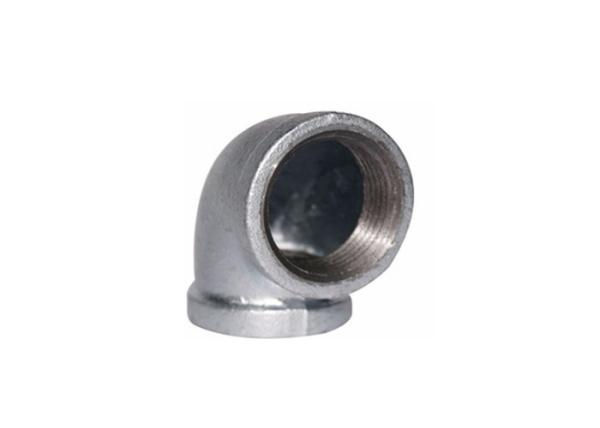

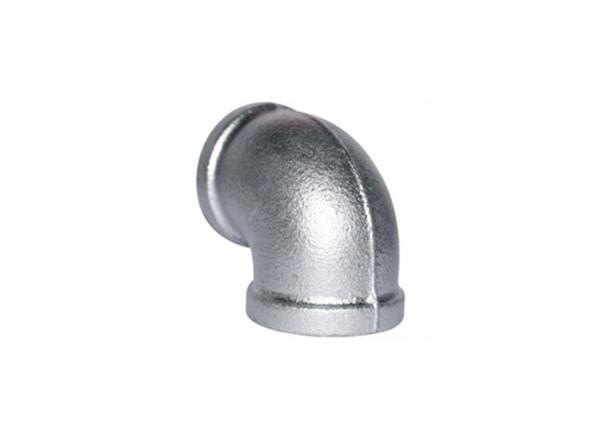

The picture of 90 elbow

malleable iron pipe fitting 22.5 degree 90 degree elbow tee for fire protection
