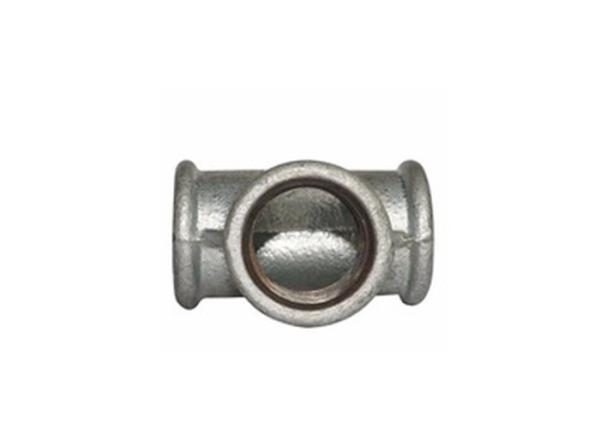

High Tensile Strength Malleable Iron Tee BSPT Female Tee Fitting For Water Pipe
High Tensile Strength Malleable Iron Tee BSPT Female Tee Fitting For Water Pipe
High Tensile Strength Malleable Iron Tee BSPT Female Tee Fitting For Water Pipe
High Tensile Strength Malleable Iron Tee BSPT Female Tee Fitting For Water Pipe
High Tensile Strength Malleable Iron Tee BSPT Female Tee Fitting For Water Pipe
High Tensile Strength Malleable Iron Tee BSPT Female Tee Fitting For Water Pipe
Specifications
Brand Name :
leyon
Model Number :
BSPT female tee
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T, D/P, D/A, MoneyGram
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
Surface treatment :
Hot dipped galvanized and cold galvanized
Treaded :
ISO7/1, DIN2999,NPT
Standard :
11/4 inch BSPT female tee
Material :
Iron
Size :
11/4 inch
Dimensions :
45 mm
Description
Excel of BSPT female tee
MaterialMalleable iron
StandardThread: ISO 7/1
DimensionISO 49, DIN 2950,EN10242
Chemical property(C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical propertyTensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure2.5Mpa
Working pressure1.6Mpa
TypeBeaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
SurfaceGalvanized/ no galvanized
ColorWhite/black
ModelElbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
ConnectionMale, Female
ShapeEqual, Reducing
CertificateBSI,ANAB,ISO9001,FM,UL
ApplicationSuitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
PackageCartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements
Delivery details
According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit

malleable iron tensile strength BSPT female tee for water and gas


In the past, many foundries produced malleable iron castings, however, with the development of ductile iron, most of malleable iron casting parts could be replaced by ductile iron. So, only few iron foundries in China are still producing this material.

1. What's kind of analyzer to use ?

We use spectroscopic analyzer to detect the composition of the sample material.

2. How they check the material's quality ?

Cast iorn pipe fittings materials’ quality are checked by spectrometer.

3. How Control the annealing process ?

Control the annealing process strictly,enhance the physical properties of the materials

4. Which kind of test ?

Make sure there is no leakage ,Every Malleable iron Tee must succeed in air tightness test.

5. What's the size range ?

Tee’s size ranging from 1/8 inch to 8 inch

6. Which kind of technology use for BSPT female tee?

For ensuring to control malleable iron tee pipe fittings, we use the most advanced metallurgical and

processing technology.

7.How about the quality ?

Good toughness with long working life.

Attribute definition list :

· Material: malleable iron

· Technics: casing

· Type: Malleable Iron Tee

· Connection:male&female

· size:1/8"-8"

· Standard: ANSI, BS, DIN

· Packing: wooden cases or as customers' demands

· surfacetreatment:painting galvaized or as customers' demands

SizeInch3x3/43x13x11/43x11/23x23x21/24x14x11/4
mm80x2080x2580x3280x4080x5080x65100x25100x32
Dim.
(mm)		A5251555864725660
SizeInch4x11/24x24x21/24x3
mm100x40100x50100x65100x80
Dim.
(mm)		A61707884

High Tensile Strength Malleable Iron Tee BSPT Female Tee Fitting For Water Pipe
