MachineU > China Products > Tools & Hardware > Pipe Fittings

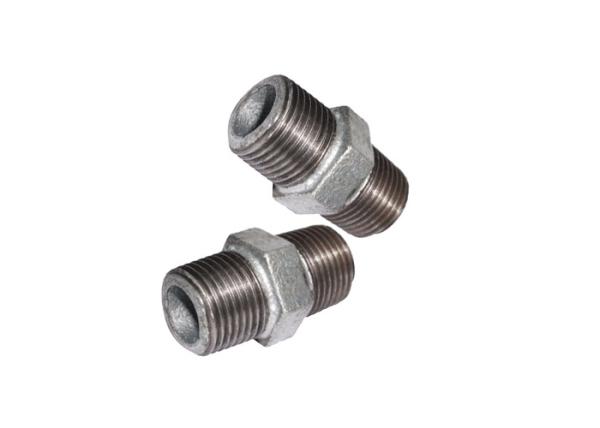

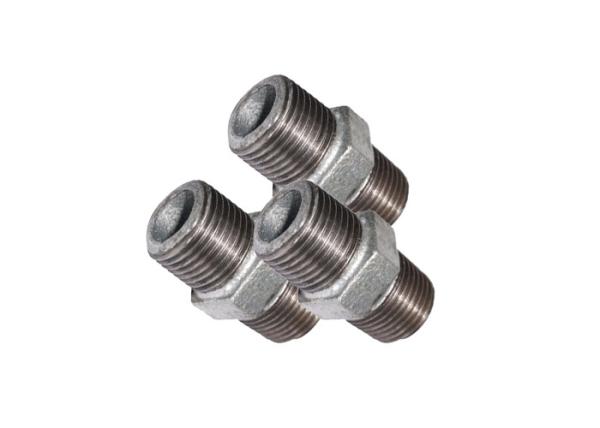

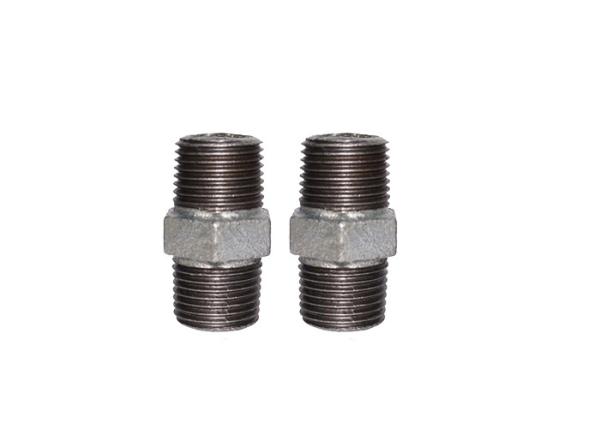

1-1/2 Malleabale Iron Barrel Pipe Fitting Nipple Male Hex Nipple FM / UL Certificated
1-1/2 Malleabale Iron Barrel Pipe Fitting Nipple Male Hex Nipple FM / UL Certificated
1-1/2 Malleabale Iron Barrel Pipe Fitting Nipple Male Hex Nipple FM / UL Certificated
1-1/2 Malleabale Iron Barrel Pipe Fitting Nipple Male Hex Nipple FM / UL Certificated
1-1/2 Malleabale Iron Barrel Pipe Fitting Nipple Male Hex Nipple FM / UL Certificated
1-1/2 Malleabale Iron Barrel Pipe Fitting Nipple Male Hex Nipple FM / UL Certificated
Specifications
Brand Name :
kanaif
Model Number :
black iron pipe nipple
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000piece/week
Packaging Details :
200piece/carton
Color :
Galvanized
material :
malleable iron
Technics :
Casting
size :
1/8”-6“ black iron pipe nipple
Standard :
ANSI,BS,DIN
Head Code :
Square
Item :
black iron pipe nipple
Description

Dim. chart of black iron pipe nipple

Size Inch 1/8 1/4 3/8 1/2 3/4 1 11/4
mm 6 8 10 15 20 25 32
Dim.
(mm)		 A 29 36 38 44 47 53 57
Size Inch 11/2 2 21/2 3 4 5 6
mm 40 50 65 80 100 125 150
Dim.
(mm)		 A 59 68 75 83 95 103 110

What is the ASME ?

ASME – American Society of Mechanical Engineers

The American Society of Mechanical Engineers (ASME) is a professional association that , in its own words,”promotes the art , science, and practice of multidisciplinary engineering and allied sciences around the globe” via “continuing education , training and professional development , codes and standards , research , conferences and publications , government relations and other forms of outreach .” ASME is thus an engineering society , a standards organization , a research , and development organization , a lobbying organization , a provider of training and education, and a nonprofit organization founded as an engineering society focused on mechanical engineering in North America, ASME is today multidisciplinary and global .

ASME has over 140,000 members in 158 countries worldwide .

Graphical represented of data of black iron pipe nipple

Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags

Or as buyer’s requirements

Delivery details

 According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit

1-1/2
