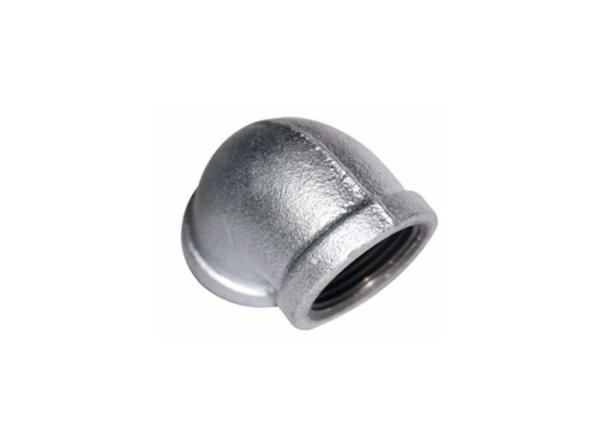

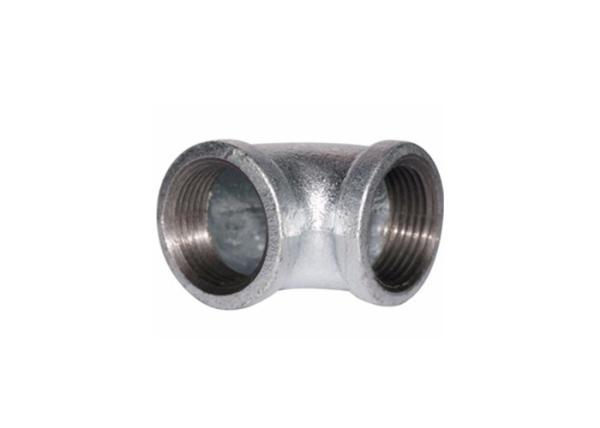

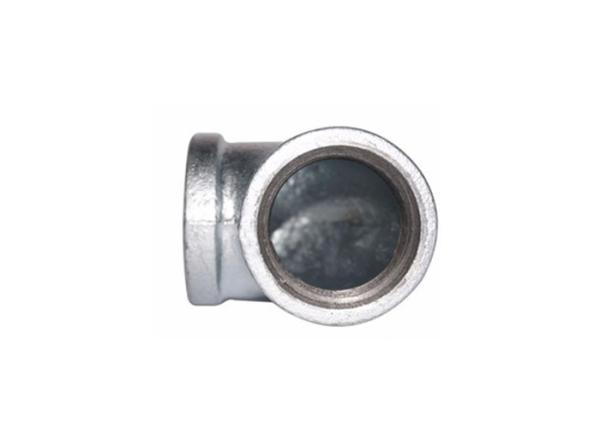

ANSI 1 2 Inch 90 Degree Elbow Fitting , Cast Iron Elbow For Water Pipe Anti Corrosion
ANSI 1 2 Inch 90 Degree Elbow Fitting , Cast Iron Elbow For Water Pipe Anti Corrosion
ANSI 1 2 Inch 90 Degree Elbow Fitting , Cast Iron Elbow For Water Pipe Anti Corrosion
ANSI 1 2 Inch 90 Degree Elbow Fitting , Cast Iron Elbow For Water Pipe Anti Corrosion
ANSI 1 2 Inch 90 Degree Elbow Fitting , Cast Iron Elbow For Water Pipe Anti Corrosion
ANSI 1 2 Inch 90 Degree Elbow Fitting , Cast Iron Elbow For Water Pipe Anti Corrosion
Specifications
Brand Name :
leyon
Model Number :
figure number 90
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T, MoneyGram, D/A, D/P
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
head shape :
round
Surface :
galvanized
size :
1/8",3/8",1/2",3/4",1",1 1/4" 1 1/2" ,2",2 1/2" 3",4",5",6"
surface treatment :
Hot/Cold-dipped galvanized
thread :
BSPP BSPT NPT
model :
fig no.90
OEM :
Acceptable
certificate :
BSI,ANAB,ISO9001,FM,UL
Sample :
free
Description

Product name: 1/2" malleable iron pipe fitting 90 ANSI elbow suitable for water

Size Range

Size Inch 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2
mm 6 8 10 15 20 25 32 40
Dim.
(mm)		 A 17.5 20.6 24.1 28.5 33.3 38.1 44.5 49.3
Size Inch 2 21/2 3 4 5 6 8 　
mm 50 65 80 100 125 150 200 　
Dim.
(mm)		 A 57.2 68.6 78.2 96.3 114.3 130.3 162 　

Detailed Product Description for malleable iron pipe fitting 90 ANSI elbow

Features:

1. The equipments from DISA Denmark, DJ AMF Japan, SINTOKOGIO Japan widely used in our malleable iron elbow product-line, ensures the stability of product quality.

2. The spectrometer of Oxford Instruments we bought for analyzing the quality of malleable iron samples.

3. we use high heat value natural gas annealing furnace, strictly control the annealing process, improve the physical properties of the materials

4. We buy and use dense ,high strength ,nonporous iron and steel scrap as raw material .Because that is basic point on excellent malleable pipe fittings.

5. Accurate threads are processed that comply with the precise standards, such as ASME, EU, BS, DIN, etc.

6. The common outlet size of pipe fittings is designed from 1/8”~8”.

7. To make sure the long time using life ,it is necessary to keep good toughness .

8. No any and hole discovered on surface

9. avg. thickness of zinc coating is higher than 86 um specified in ASME, EN(70um), DIN(70um), SI(78um)

Malleable iron pipe fitting 90 ANSI elbow in the following.

Material

 Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa

Type

 Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL

Application

 Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available

Package

 Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements

Delivery details

 According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit

We are the well-know manufacturer in the fitting industry with the most compete range of products, supplying malleable iron fittings, grooved fittings, valves, cast iron fittings, ductile iron fittings, steel pipe nipplesand couplings, stainless steel pipe fittings,ect.
