6 Inch 90 Degree Elbow , 90 Degree Street Elbow Galvanized Pipe Coupler OEM Available
6 Inch 90 Degree Elbow , 90 Degree Street Elbow Galvanized Pipe Coupler OEM Available
6 Inch 90 Degree Elbow , 90 Degree Street Elbow Galvanized Pipe Coupler OEM Available
6 Inch 90 Degree Elbow , 90 Degree Street Elbow Galvanized Pipe Coupler OEM Available
6 Inch 90 Degree Elbow , 90 Degree Street Elbow Galvanized Pipe Coupler OEM Available
6 Inch 90 Degree Elbow , 90 Degree Street Elbow Galvanized Pipe Coupler OEM Available
Specifications
Brand Name :
leyon
Model Number :
2 "90 Plain Elbow
Certification :
FM/UL
Place of Origin :
China
MOQ :
100piece
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T, MoneyGram, D/A, D/P
Supply Ability :
10000piece/week
Delivery Time :
25-35days
Packaging Details :
200piece/carton
head shape :
round
Technics :
Casting
surface treatment :
Hot dipped galvanized and cold galvanized
OEM :
1/2 Elbow Malleable
thread :
NPT
Usage :
Oil Gas Water Industrial
certificate :
BSI, ISO9001,FM,UL
color :
white
Description

2 "90 Plain Male Female Elbow Malleable Iron Pipe Fittings From 1/8” To 8”

Leyon is a specialized 2 "90 Plain Elbow factory, focusing on producing Plain Elbow. Qualityis Leyon’s culture.That is why the suppliers can survive more than 30 years . The factory is always striving to produce excellent Malleable iron elbow, in orderto provide ideal elbow to merchandisers.

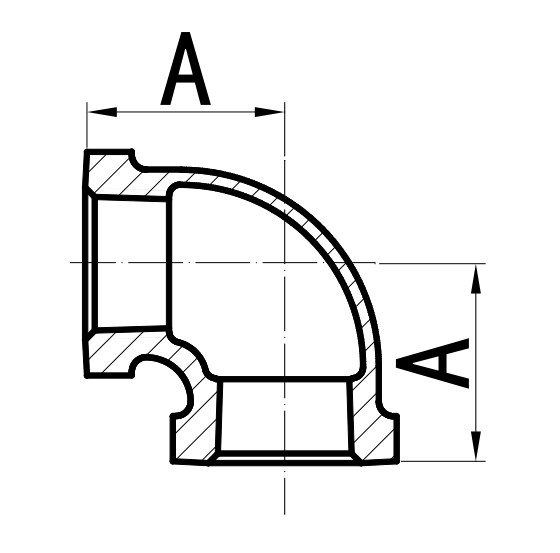

The Attribute definition list

Size Inch 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2
mm 6 8 10 15 20 25 32 40
Dim.
(mm)		 A 19 21 25 28 33 38 45 50
Size Inch 2 21/2 3 4 5 6 　
mm 50 65 80 100 125 150 　
Dim.
(mm)		 A 50 69 78 96 115 1301 　

Size Inch 3/8X1/4 1/2x1/4 1/2x3/8 3/4x3/8 3/4x1/2
mm 10X8 15X8 15X10 20X10 20X15
Dim.
(mm)		 A 23 26 26 28 30
B 23 26 26 28 31
Size Inch 1x1/2 1x3/4 11/4x1/2 11/4x3/4 11/4x1
mm 25X15 25X20 32X15 32X20 32x25
Dim.
(mm)		 A 32 35 34 36 40
B 34 36 38 41 42

Size Inch 11/2X1/2 11/2x3/4 11/2x1 11/2x11/4 2x1/2
mm 40X15 15X8 40X25 40X32 50X15
Dim.
(mm)		 A 36 39 42 46 38
B 42 44 46 28 48
Size Inch 2x3/4 2x1 2x11/4 2x11/2 21/2x1
mm 50X20 50X25 50X32 50X40 65x25
Dim.
(mm)		 A 40 44 56 52 56
B 50 52 58 55 63

Size Inch 21/2X11/2 3x21/2 21/2x2 3x11/2
mm 65X40 80X65 65X50 80X40
Dim.
(mm)		 A 64 82 61 58
B 69 85 66 72
Size Inch 3x2 4x21/2 4X3
mm 80X50 100X65 100X80
Dim.
(mm)		 A 73 78 84
B 78 90 92

What’s the different of ductile iron , gray iron and malleable cast iron ?

The characteristic of ductile iron is very tough, graphite is in the form of a ball.

The feature of gray iron is very brittle , graphite is in the form of strip .

The particularity of malleable cast iron is graphite is a group of flocculent tiles .

So the ductile iron is hardest , malleable cast iron is harder than gray iron .

Why the the toughness of them is different ?

The big reason is time of annealing . If it annealing long time , then the cost also is higher and the quality also is better .
